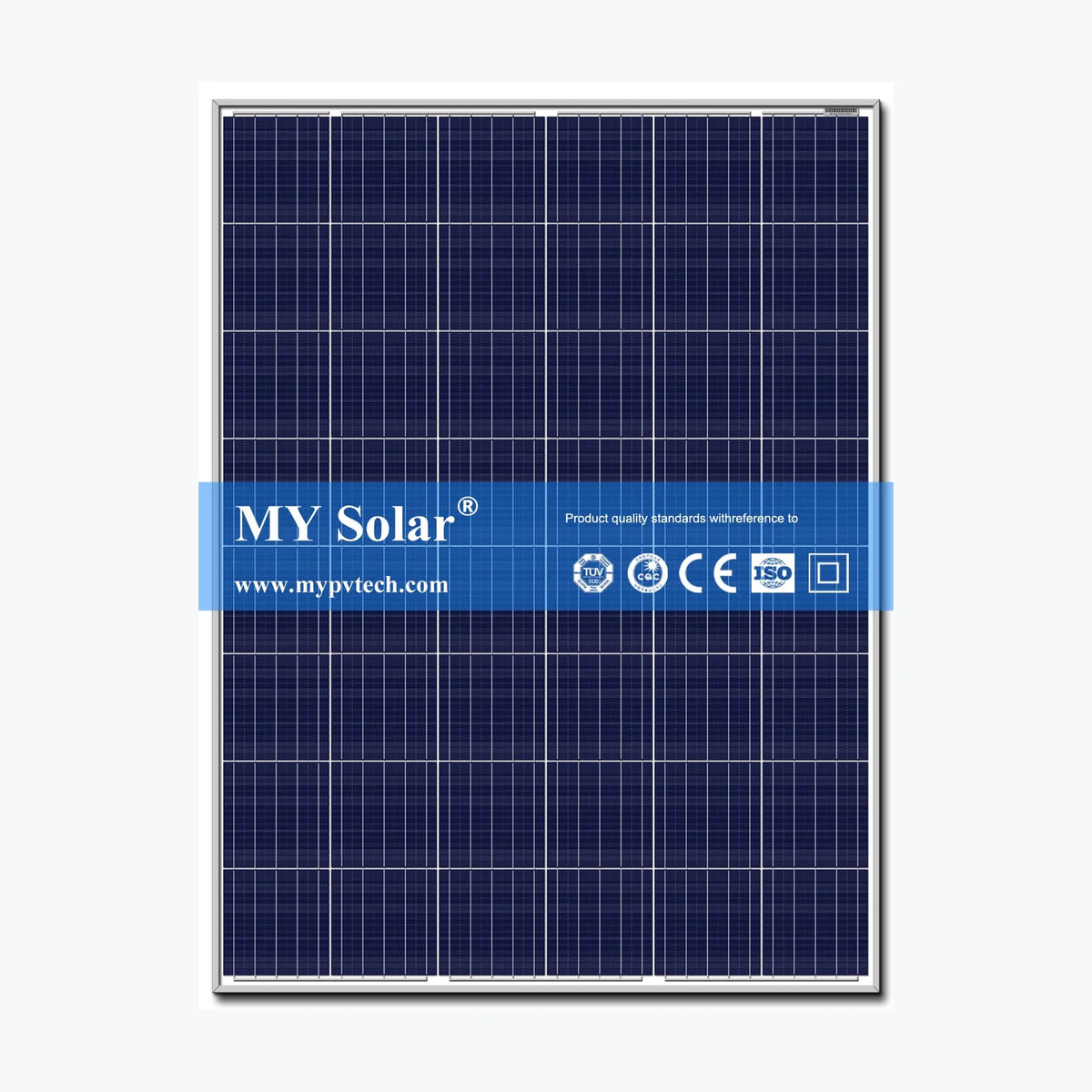

MY Solar MYP3048-215
MY Solar MYP3048-215
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-12237
- Container price:
- Container qty:
- Odoo id:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Polycrystalline Model No. MYP3048-215 Product Warranty 25 Years Power Tolerance 0 ~ +2.5 % Maximum Power (Pmax) 215 Wp Voltage at Maximum Power (Vmpp) 24.5 V Current at Maximum Power (Impp) 8.78 A Open Circuit Voltage (Voc) 29.9 V Short Circuit Current (Isc) 9.28 A Panel Efficiency 16.04 % Maximum Power (Pmax) 159.2 Wp Voltage at Maximum Power (Vmpp) 22.7 V Current at Maximum Power (Impp) 7 A Open Circuit Voltage (Voc) 27.8 V Short Circuit Current (Isc) 7.54 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1340x1000x35 mm Weight 15.2 kg Cell Size 158.75×158.75 mm Cell Number 48 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Cable Length 900 mm Download Manu
Power Range: 215 ~ 235 Wp
Panel Efficiency: 16.04 ~ 17.54 %
Weight: 15.2 kg
Seller Name: MY Solar Technology Co., Ltd.
Country: China -
