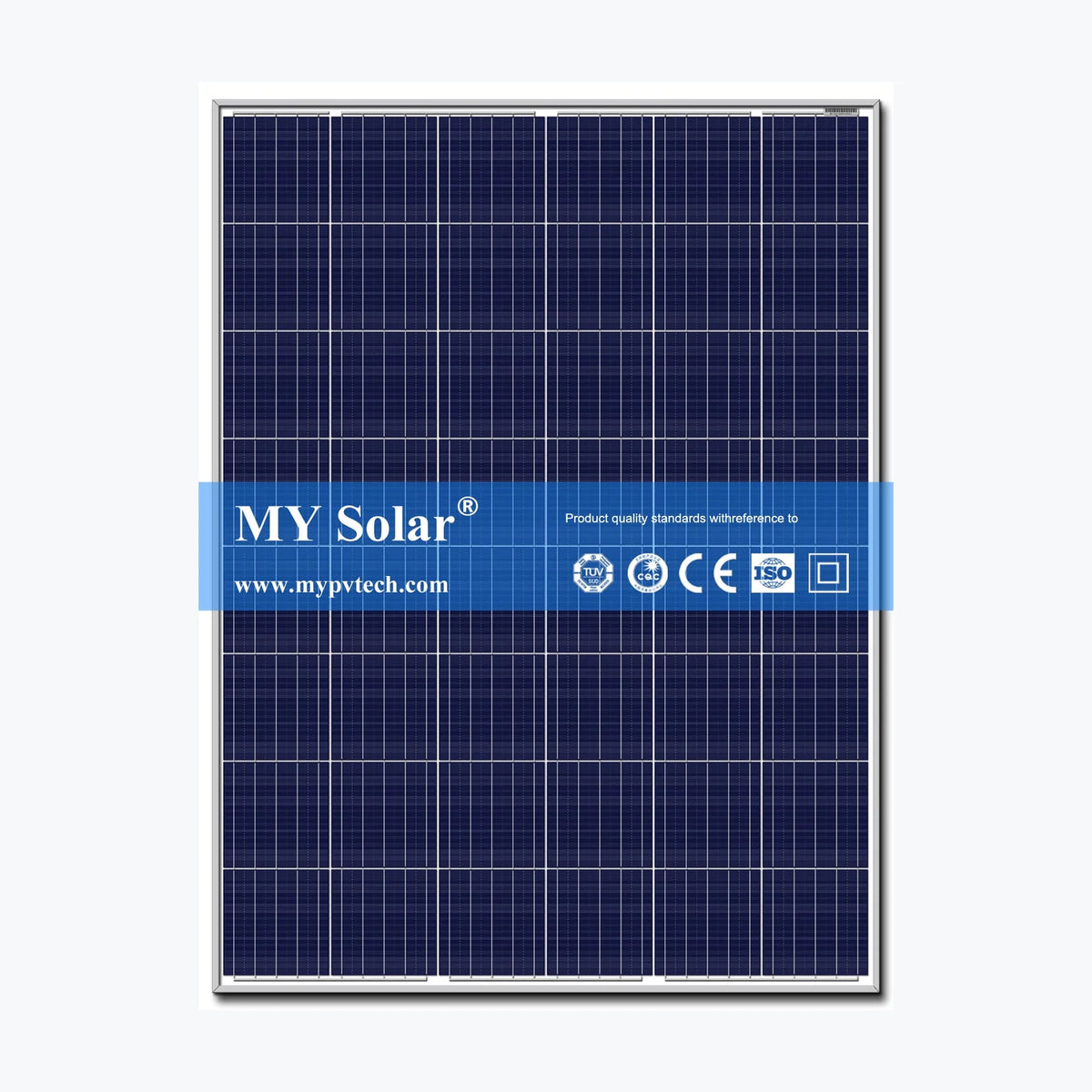

    MY Solar MYP3048-235

    MY Solar MYP3048-235

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-12241
    • Container price: $86.40 USD
    • Container qty: 720
    • Odoo id: 23,973
    • Pallet price: $4.08 USD
    • Pallet qty: 30
    • Unit price: $0.16 USD
    View full details

    Product Description

    • Type Polycrystalline Model No. MYP3048-235 Product Warranty 25 Years Power Tolerance 0 ~ +2.5 % Maximum Power (Pmax) 235 Wp Voltage at Maximum Power (Vmpp) 25.4 V Current at Maximum Power (Impp) 9.25 A Open Circuit Voltage (Voc) 31 V Short Circuit Current (Isc) 9.78 A Panel Efficiency 17.54 % Maximum Power (Pmax) 174 Wp Voltage at Maximum Power (Vmpp) 23.6 V Current at Maximum Power (Impp) 7.39 A Open Circuit Voltage (Voc) 28.8 V Short Circuit Current (Isc) 7.95 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1340x1000x35 mm Weight 15.2 kg Cell Size 158.75×158.75 mm Cell Number 48 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Cable Length 900 mm Download Manuf

      Power Range: 215 ~ 235 Wp
      Panel Efficiency: 16.04 ~ 17.54 %
      Weight: 15.2 kg
      Seller Name: MY Solar Technology Co., Ltd.
      Country: China
