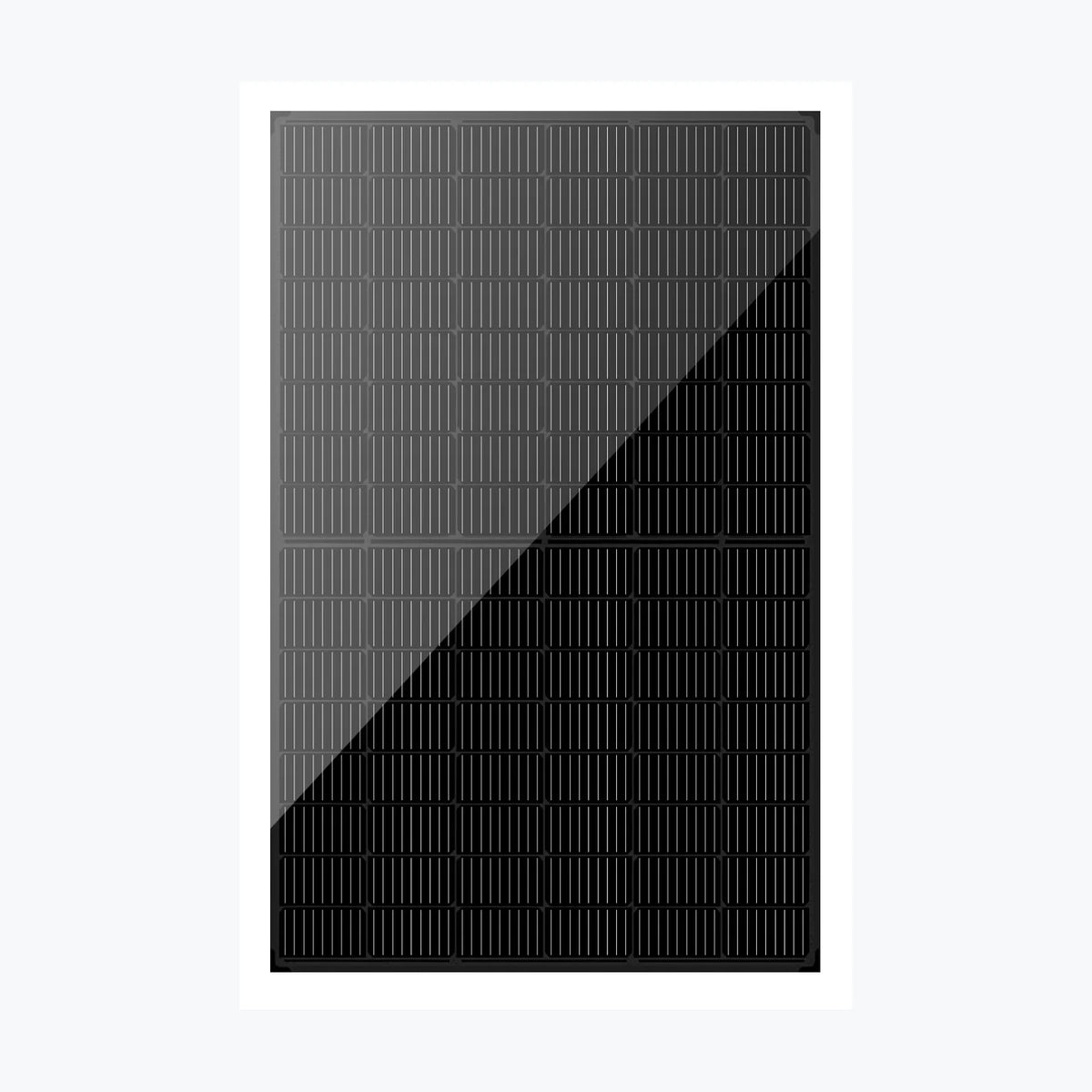

    Mysolar USA MS435N-DHBA

    Mysolar USA MS435N-DHBA

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-12901
    • Container price: $48.60 USD
    • Container qty: 720
    • Odoo id: 25,094
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. MS435N-DHBA Product Warranty 25 Years Power Warranty 30 Years of 88.85 % Total Degradation Rate ⏳ 0.37 % Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 435 Wp Voltage at Maximum Power (Vmpp) 32.08 V Current at Maximum Power (Impp) 13.57 A Open Circuit Voltage (Voc) 38.68 V Short Circuit Current (Isc) 14.31 A Panel Efficiency 22.47 % Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1716x1128x5 mm Weight 22 kg Cell Size 182×91 mm Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Frame Type Frameless Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 400 mm Download Manufacturer's PDF Datasheet

      Technology: Bifacial, TOPCon
      Power Range: 420 ~ 440 Wp
      Panel Efficiency: 21.7 ~ 22.73 %
      Weight: 22 kg
      Seller Name: Mysolar Manufacturing USA Inc.
      Country: United States
