Mysolar USA MS460NC-HJTBFT
PayPal Pay in 4 interest-free payments of $40.25 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-12907
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. MS460NC-HJTBFT Product Warranty 30 Years Power Warranty 30 Years of 91.75 % Total Degradation Rate ⏳ 0.28 % Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 460 Wp Voltage at Maximum Power (Vmpp) 45.24 V Current at Maximum Power (Impp) 10.18 A Open Circuit Voltage (Voc) 53.22 V Short Circuit Current (Isc) 10.58 A Panel Efficiency 21.2 % Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.26 %/°C Temperature Coefficient of Voc -0.24 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2088x1032x5 mm Weight 23 kg Cell Size 166×83 mm Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Frame Type Frameless Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet

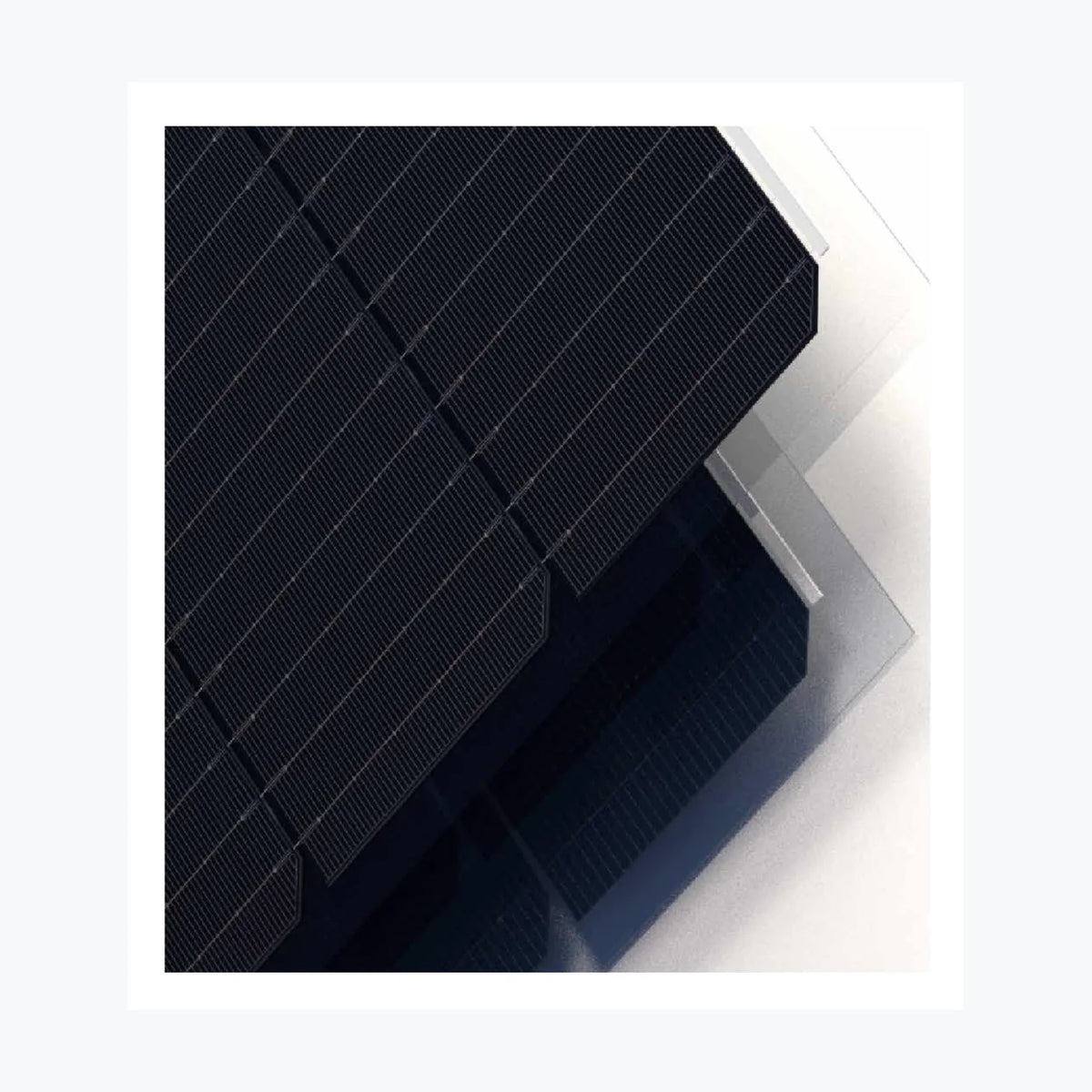

Technology: Bifacial, HJT
Power Range: 460 ~ 480 Wp
Panel Efficiency: 21.2 ~ 22.1 %
Weight: 23 kg
Seller Name: Mysolar Manufacturing USA Inc.
Country: United States
| SKU | PES-SPS-SOL-12907 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
