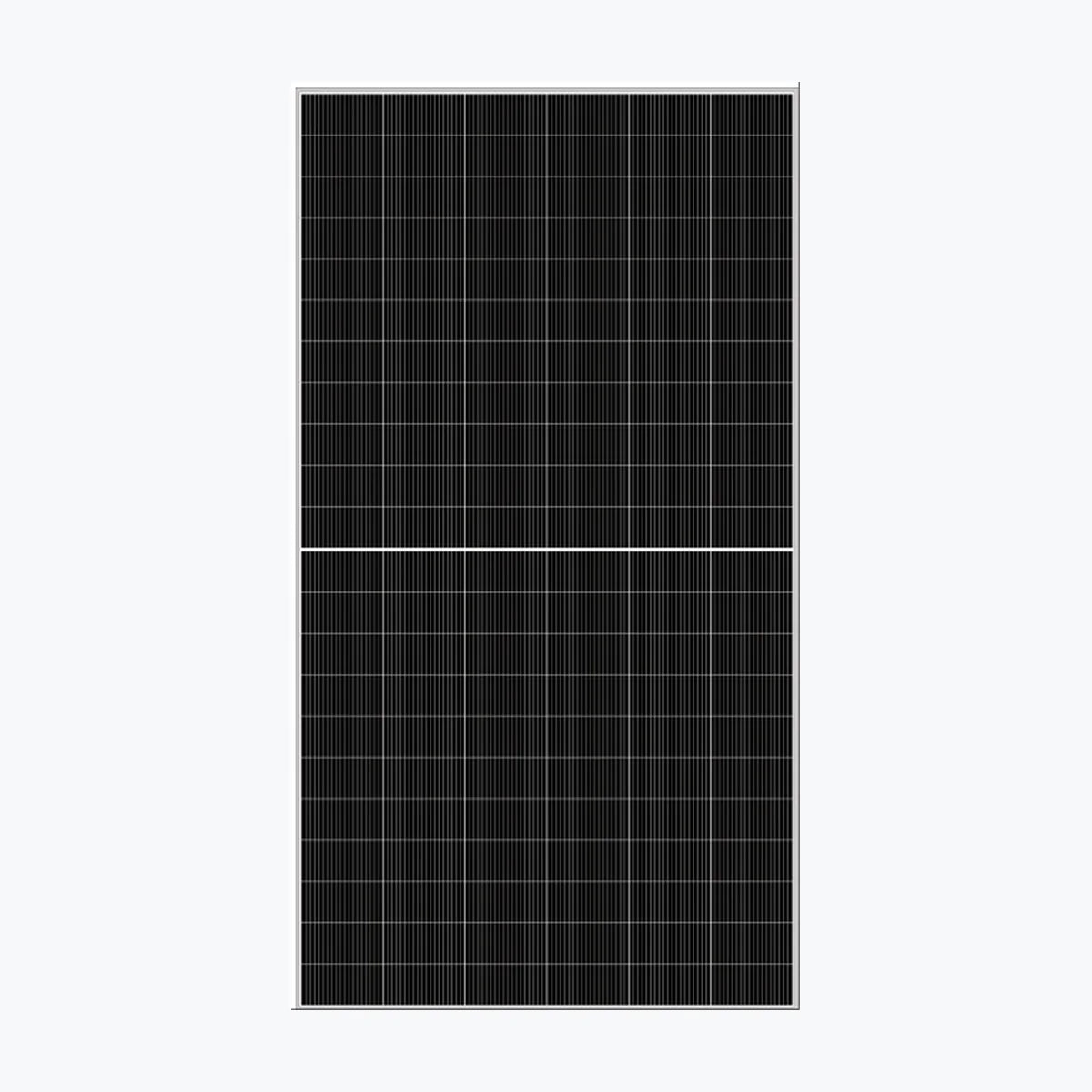

Ocean Solar AOX-132G12HC750W
PayPal Pay in 4 interest-free payments of $65.50 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-13557
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. AOX-132G12HC750W Product Warranty 12 Years Power Warranty 10 Years of 90 %, 30 Years of 80 % Total Degradation Rate ⏳ 0.67 % Power Tolerance -3 ~ +3 % Maximum Power (Pmax) 750 Wp Voltage at Maximum Power (Vmpp) 42.5 V Current at Maximum Power (Impp) 17.65 A Open Circuit Voltage (Voc) 49 V Short Circuit Current (Isc) 18.64 A Panel Efficiency 24.2 % Maximum Power (Pmax) 564 Wp Voltage at Maximum Power (Vmpp) 39.9 V Current at Maximum Power (Impp) 14.14 A Open Circuit Voltage (Voc) 46.4 V Short Circuit Current (Isc) 14.93 A Temperature 45±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2382x1303x33 mm Weight 31 kg Cell Size 210×105 mm Cell Number 132 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPT
Technology: TOPCon, N-type
Power Range: 700 ~ 750 Wp
Panel Efficiency: 22.5 ~ 24.2 %
Weight: 31 kg
Seller Name: Jiangsu Ocean Solar Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-13557 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Wattage |
No documents available for this product. Contact us to request documentation.
