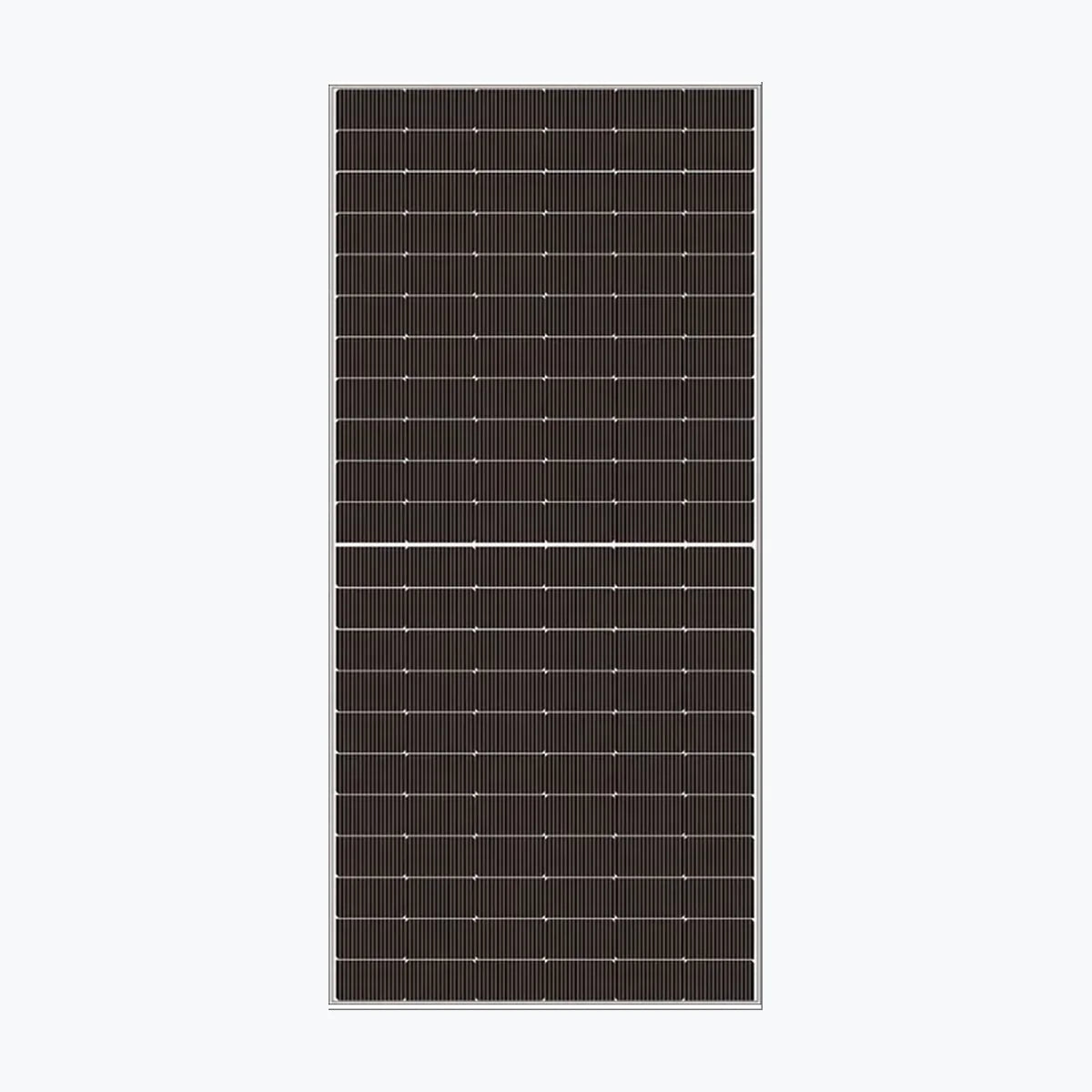

Ocean Solar AOX-132G12RHC645W
Ocean Solar AOX-132G12RHC645W
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-13563
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. AOX-132G12RHC645W Product Warranty 12 Years Power Warranty 12 Years of 90 %, 30 Years of 80 % Total Degradation Rate ⏳ 0.67 % Power Tolerance -3 ~ +3 % Maximum Power (Pmax) 645 Wp Voltage at Maximum Power (Vmpp) 42.1 V Current at Maximum Power (Impp) 15.33 A Open Circuit Voltage (Voc) 50.2 V Short Circuit Current (Isc) 16.19 A Panel Efficiency 23.9 % Maximum Power (Pmax) 491 Wp Voltage at Maximum Power (Vmpp) 39.6 V Current at Maximum Power (Impp) 12.4 A Open Circuit Voltage (Voc) 47.6 V Short Circuit Current (Isc) 13.09 A Temperature 45±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.24 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2382x1134x30 mm Weight 29 kg Cell Size 182×105 mm Cell Number 132 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPT Frame Type Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Technology: TOPCon, N-type
Power Range: 620 ~ 650 Wp
Panel Efficiency: 22.9 ~ 24.1 %
Weight: 29 kg
Seller: Jiangsu Ocean Solar Co., Ltd.
Country: China -
