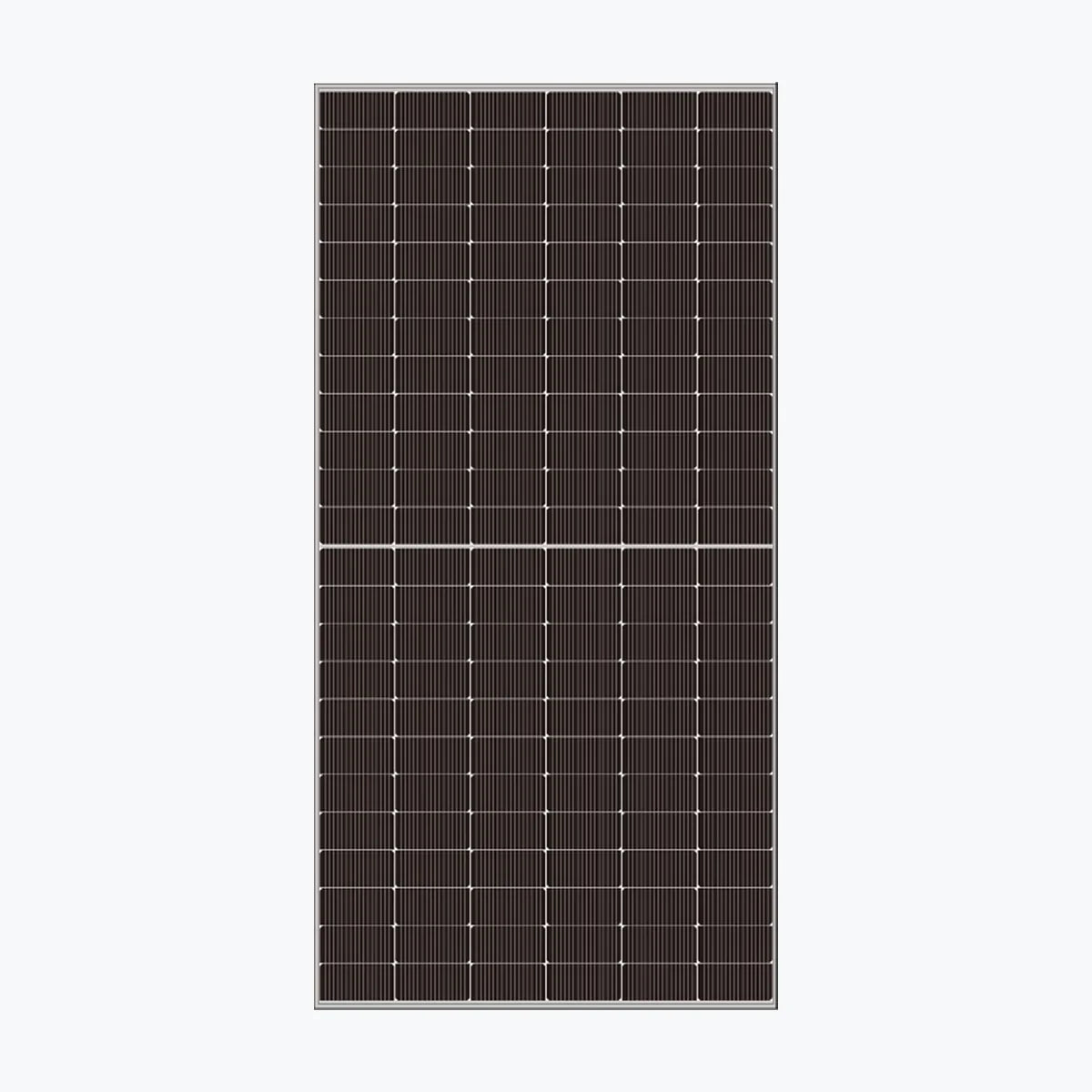

Ocean Solar AOX-72M10HC615W
Ocean Solar AOX-72M10HC615W
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-13579
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. AOX-72M10HC615W Product Warranty 12 Years Power Warranty 12 Years of 90 %, 30 Years of 80 % Total Degradation Rate ⏳ 0.67 % Power Tolerance -3 ~ +3 % Maximum Power (Pmax) 615 Wp Voltage at Maximum Power (Vmpp) 44.9 V Current at Maximum Power (Impp) 13.7 A Open Circuit Voltage (Voc) 51.9 V Short Circuit Current (Isc) 14.46 A Panel Efficiency 23.8 % Maximum Power (Pmax) 466 Wp Voltage at Maximum Power (Vmpp) 42.1 V Current at Maximum Power (Impp) 11.07 A Open Circuit Voltage (Voc) 49.1 V Short Circuit Current (Isc) 11.68 A Temperature 45±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.24 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 28 kg Cell Size 182×91 mm Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPT Frame Type Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Technology: TOPCon, N-type
Power Range: 580 ~ 615 Wp
Panel Efficiency: 22.4 ~ 23.8 %
Weight: 28 kg
Seller: Jiangsu Ocean Solar Co., Ltd.
Country: China -
