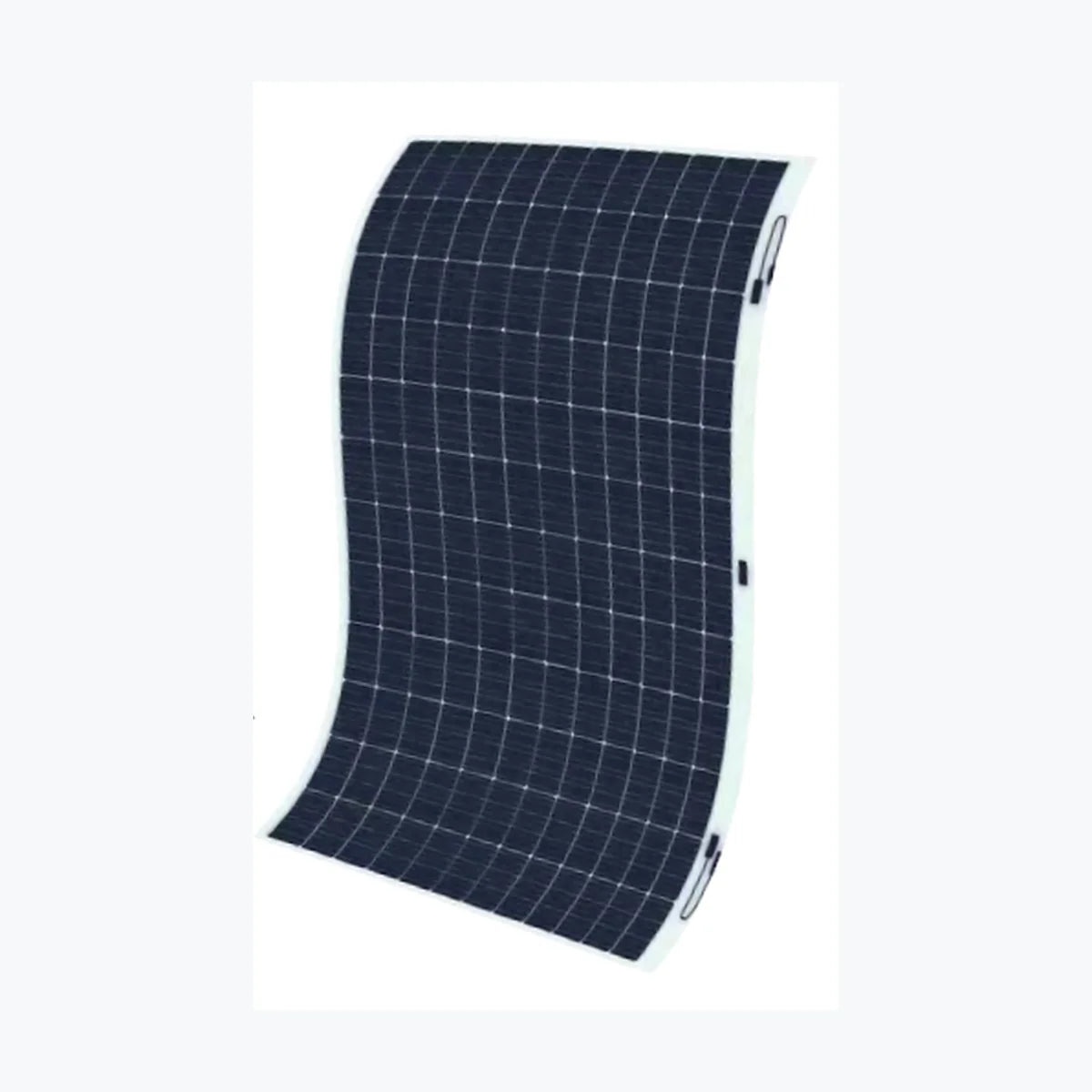

Ocean Solar AOX520-144-M182-FL
PayPal Pay in 4 interest-free payments of $45.50 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-13586
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. AOX520-144-M182-FL Product Warranty 12 Years Power Warranty 12 Years of 90 %, 30 Years of 80 % Total Degradation Rate ⏳ 0.67 % Maximum Power (Pmax) 520 Wp Voltage at Maximum Power (Vmpp) 41.03 V Current at Maximum Power (Impp) 12.67 A Open Circuit Voltage (Voc) 48.94 V Short Circuit Current (Isc) 13.64 A Panel Efficiency 19.54 % Maximum Power (Pmax) 394 Wp Voltage at Maximum Power (Vmpp) 37.8 V Current at Maximum Power (Impp) 10.36 A Open Circuit Voltage (Voc) 46.1 V Short Circuit Current (Isc) 10.91 A Temperature 45±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.37 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Panel Dimension (H/W/D) 2246x1185x2.6 mm Weight 8 kg Cell Size 182×91 mm Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPT Frame Type Aluminium Junction Box Diodes 3 Ju
Technology: Bifacial, TOPCon, Flexible, N-type
Power Range: 520 ~ 535 Wp
Panel Efficiency: 19.54 ~ 20.1 %
Weight: 8 kg
Seller Name: Jiangsu Ocean Solar Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-13586 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
