Osda Solar ODA655-33V-MHD

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

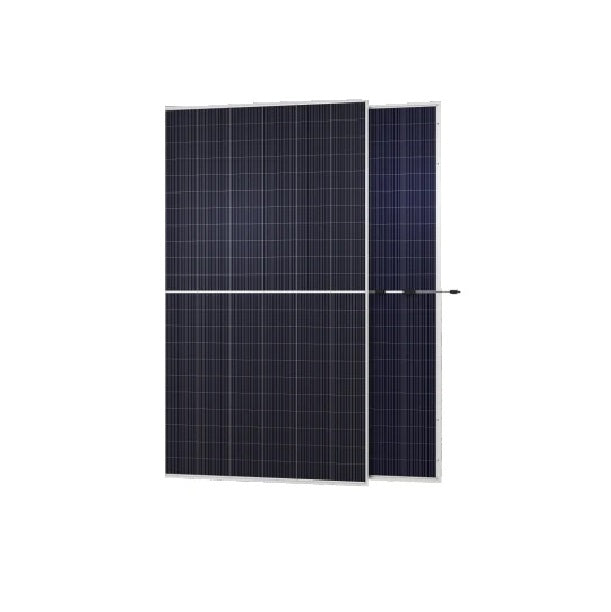

Osda Solar ODA655-33V-MHD

Trusted by 1,000s of Contractors & Installers

Ships Direct from Manufacturer — typically leaves the dock in 3–7 business days

SKU PES-SPS-SOL-13703

OEM Authorized Dealer Full OEM Warranty

$180.00 USD

~~$0.01~~ $180.00 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-SPS-SOL-13703

Complete the job

Compatible gear contractors pair with this item

Microinverter APsystems QT2 1.7kW 3-Ph Microinverter 124062

$407.00

Racking kit Racking Hardware Kit — 20-panel System

$1,596.43

PV wire Omni Cable 8 AWG RHW-2 PV Wire Red 2000V

$1,220.00

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Osda Solar ODA655-33V-MHD $180.00

Certifications<

What is your return policy?

Returns are accepted within 30 days of delivery and require an RMA number. Returns of non-defective items carry a 40% restocking fee per our Refund Policy; defective, damaged-in-transit, or mis-shipped items are exempt. Special-order items are final sale.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Osda ODA655-33V-MHD 655W HJT Monocrystalline Bifacial Solar Panel

Model ODA655-33V-MHD | HJT Monocrystalline | 132 Half-Cell 210×105 mm | Bifacial | 1500V System Voltage

655 W

Max Power Output

21.08%

Module Efficiency

132

HJT Half-Cell Design

Product Overview

The Osda Solar ODA655-33V-MHD monocrystalline bifacial solar panel delivers high power density for utility, commercial, and large rooftop projects. This 655W module uses advanced HJT cell technology and 132 half-cut cells to boost efficiency and lower balance-of-system costs. With module efficiency up to 21.08 percent, more energy can be produced from a smaller footprint. Bifacial construction supports rear-side generation, which enhances yield on reflective surfaces. The module is engineered for 1500V systems, making it ideal for modern string inverters and large arrays. A robust anodized aluminum frame and tempered glass with anti-reflection coating help ensure long-term durability in demanding climates. Backed by a 15-year product warranty and a 30-year power warranty, this panel is designed to support long-term, low-LCOE energy production for investors and system owners who expect reliable performance.

Key Benefits

High power class for fewer modules: Each panel delivers up to 655 watts of power at STC, so large system outputs can be reached with fewer modules. This helps reduce racking, cabling, and installation labor on site.

Bifacial energy gain: Bifacial HJT technology allows the rear side to capture reflected light and add extra energy. In well designed projects, this leads to significant yield improvements and a lower levelized cost of energy.

Excellent efficiency and compact footprint: Module efficiency up to 21.08 percent allows more kilowatt capacity on limited roof or ground areas. This makes the panel ideal where space is valuable or structural limits are tight.

Long-life performance warranties: A 15-year product warranty and 30-year power warranty with only 0.5 percent annual degradation are provided. After 30 years, at least 84.95 percent of the initial power output is expected to remain.

Robust construction for harsh sites: A strong anodized aluminum frame, 2.0 mm tempered glass, and IP67 or IP68 junction box protection help resist wind, snow, dust, and moisture. The design supports stable operation from -40 to 85 degrees Celsius.

Flexible integration with 1500V systems: The 1500V maximum system voltage allows for longer strings and lower BOS costs. This makes the panel a strong fit for utility, C&I, and large ground-mount installations.

How It Works

The Osda ODA655-33V-MHD bifacial solar panel converts sunlight into clean DC electricity using high efficiency HJT monocrystalline cells. Light striking the front glass surface is absorbed by the 132 half cells and converted into electrical current. Additional light reflected from the ground or nearby surfaces is collected by the rear side of the bifacial module, increasing total energy yield. The generated current flows through multiple busbars and low resistance cell connections into the junction box at the rear of the panel. From there, DC power is carried by PV cables to a compatible inverter, where it is turned into AC electricity for on-site loads or grid export. This process runs whenever adequate irradiance is available and is supported by careful thermal management and robust materials, maintaining stable power even in challenging climates.

Front-side power generation: Sunlight strikes the anti-reflection tempered glass and passes through to the monocrystalline HJT cells. These cells create electron flow when photons are absorbed, producing DC power at a rated 655 watts under standard test conditions.

Rear-side bifacial gain: The bifacial structure lets the rear side harvest light reflected from surfaces such as white membrane roofs, concrete, or light gravel. This additional irradiance increases current and boosts total energy generation beyond the front-side rating when mounting conditions are optimized.

Electrical flow and system connection: Current produced by the 132 half-cut cells is collected via multi busbar ribbons and routed to the three-diode junction box. The junction box, with IP67 or IP68 sealing, protects connections while bypass diodes reduce output loss in partial shade. From there, DC output is wired into strings, then combined and sent to 1500V inverters for conversion to usable AC power.

Technical Specifications

Brand	Osda Solar (Ningbo Osda Solar Co., Ltd.)
Country of Origin	China
Model Number	ODA655-33V-MHD
Cell Technology	HJT monocrystalline, SMBB technology
Cell Size	210 × 105 mm
Number of Cells	132 half-cut cells
Module Type	Monocrystalline bifacial solar panel
Power Range	645 Wp to 670 Wp series range, 655 Wp nominal model
Maximum Power (Pmax) - STC	655 Wp (front-side rated)
Voltage at Maximum Power (Vmpp) - STC	37.6 V
Current at Maximum Power (Impp) - STC	17.43 A
Open Circuit Voltage (Voc) - STC	45.4 V
Short Circuit Current (Isc) - STC	18.51 A
Secondary Maximum Power (Pmax) Rating	496 Wp (alternate rating provided in documentation)
Secondary Vmpp / Impp / Voc / Isc	Vmpp 35 V, Impp 14.18 A, Voc 42.6 V, Isc 14.92 A
Module Efficiency Range	20.76% to 21.56% (product range), 21.08% nominal model
Power Tolerance	0 to +3%
Nominal Module Operating Temperature	45 ± 2 °C
Operating Temperature Range	-40 °C to +85 °C
Temperature Coefficient of Pmax	-0.34 % / °C
Temperature Coefficient of Voc	-0.25 % / °C
Temperature Coefficient of Isc	+0.04 % / °C
Maximum System Voltage	1500 V DC (IEC)
Series Fuse Rating	30 A
Module Dimensions (H × W × D)	2384 × 1303 × 30 mm
Weight	38 kg
Front Glass	2.0 mm tempered glass with anti-reflection coating
Frame Type	Anodized aluminum frame, high mechanical load resistance
Junction Box	IP67 / IP68 rated, 3 bypass diodes, Class II safety level
Mechanical Load Ratings	2400 Pa wind load, 5400 Pa snow load (IEC61215 / IEC61730 tested)
PID Resistance	Enhanced anti-PID performance via optimized materials and process control

Certifications & Compliance

Certifications: IEC61215, IEC61730, plus additional international approvals including TUV, MCS, CEC, ISO, CE, and CQC obtained by Osda for its module portfolio.
Inverter Compatibility: Compatible with most modern 1500V string and central inverters when designed within voltage, current, and string-length limits. Always verify final configuration with inverter manufacturer guidelines.
Environmental: Designed to withstand harsh outdoor conditions, with robust resistance to wind, snow, humidity, and potential induced degradation, supporting stable long-term field performance.
Warranty: 15-year limited product warranty and 30-year linear power warranty. First-year power loss is limited, followed by a typical degradation of about 0.5% per year, ensuring at least 84.95% of initial nameplate output at year 30 under standard conditions.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing

What is your return policy?

What’s covered by your return policy?

How long will it take to receive my order?

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Osda ODA655-33V-MHD 655W HJT Monocrystalline Bifacial Solar Panel

Model ODA655-33V-MHD | HJT Monocrystalline | 132 Half-Cell 210×105 mm | Bifacial | 1500V System Voltage

655 W

Max Power Output

21.08%

Module Efficiency

132

HJT Half-Cell Design

Product Overview

Key Benefits

How It Works

Technical Specifications

Brand	Osda Solar (Ningbo Osda Solar Co., Ltd.)
Country of Origin	China
Model Number	ODA655-33V-MHD
Cell Technology	HJT monocrystalline, SMBB technology
Cell Size	210 × 105 mm
Number of Cells	132 half-cut cells
Module Type	Monocrystalline bifacial solar panel
Power Range	645 Wp to 670 Wp series range, 655 Wp nominal model
Maximum Power (Pmax) - STC	655 Wp (front-side rated)
Voltage at Maximum Power (Vmpp) - STC	37.6 V
Current at Maximum Power (Impp) - STC	17.43 A
Open Circuit Voltage (Voc) - STC	45.4 V
Short Circuit Current (Isc) - STC	18.51 A
Secondary Maximum Power (Pmax) Rating	496 Wp (alternate rating provided in documentation)
Secondary Vmpp / Impp / Voc / Isc	Vmpp 35 V, Impp 14.18 A, Voc 42.6 V, Isc 14.92 A
Module Efficiency Range	20.76% to 21.56% (product range), 21.08% nominal model
Power Tolerance	0 to +3%
Nominal Module Operating Temperature	45 ± 2 °C
Operating Temperature Range	-40 °C to +85 °C
Temperature Coefficient of Pmax	-0.34 % / °C
Temperature Coefficient of Voc	-0.25 % / °C
Temperature Coefficient of Isc	+0.04 % / °C
Maximum System Voltage	1500 V DC (IEC)
Series Fuse Rating	30 A
Module Dimensions (H × W × D)	2384 × 1303 × 30 mm
Weight	38 kg
Front Glass	2.0 mm tempered glass with anti-reflection coating
Frame Type	Anodized aluminum frame, high mechanical load resistance
Junction Box	IP67 / IP68 rated, 3 bypass diodes, Class II safety level
Mechanical Load Ratings	2400 Pa wind load, 5400 Pa snow load (IEC61215 / IEC61730 tested)
PID Resistance	Enhanced anti-PID performance via optimized materials and process control

Certifications & Compliance

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
