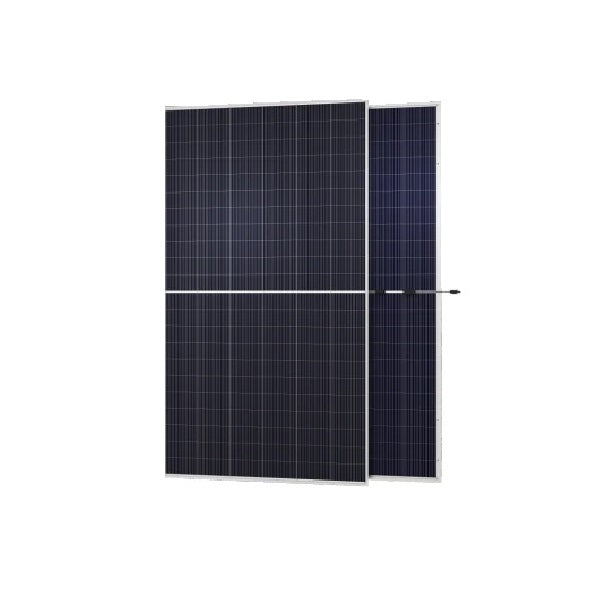

Osda Solar ODA665-33V-MHD

Trusted by 1,000s of Contractors & Installers

Ships Direct from Manufacturer — typically leaves the dock in 3–7 business days

SKU PES-SPS-SOL-13705

OEM Authorized Dealer Full OEM Warranty

$180.00 USD

~~$0.01~~ $180.00 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-SPS-SOL-13705

Complete the job

Compatible gear contractors pair with this item

Microinverter APsystems QT2 1.7kW 3-Ph Microinverter 124062

$407.00

Racking kit Racking Hardware Kit — 20-panel System

$1,596.43

PV wire Omni Cable 8 AWG RHW-2 PV Wire Red 2000V

$1,220.00

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Osda Solar ODA665-33V-MHD $180.00

Certifications<

What is your return policy?

Returns are accepted within 30 days of delivery and require an RMA number. Returns of non-defective items carry a 40% restocking fee per our Refund Policy; defective, damaged-in-transit, or mis-shipped items are exempt. Special-order items are final sale.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Osda ODA665-33V-MHD 665W HJT Bifacial Monocrystalline Solar Panel

Model ODA665-33V-MHD | HJT | 132 Half-Cell 210×105 mm Monocrystalline | Bifacial | 1500V System Voltage

665 W

Max Power Output

21.4%

Module Efficiency

132 Cells

HJT Monocrystalline

Product Overview

The Osda ODA665-33V-MHD 665W HJT bifacial monocrystalline solar panel is engineered for high yield utility and commercial projects. This advanced module combines 132 half-cut monocrystalline cells with cutting edge heterojunction technology for impressive efficiency and stable performance. A bifacial glass design captures light from both sides, which boosts total energy generation over the system lifetime. The panel supports a maximum system voltage of 1500V, making it suitable for large string configurations and optimized balance of system costs.

With a front side maximum power of 665 Wp and module efficiency up to 21.4%, this panel helps reduce required installation area. The bifacial power range from 645 Wp to 670 Wp delivers strong energy yield across diverse site conditions. An extended 15 year product warranty and 30 year performance warranty reflect the robust design. Osda Solar, a global manufacturer based in China, supports the product with comprehensive certifications, reliable manufacturing, and broad project experience worldwide.

Key Benefits

High power density for large arrays: The 665 W output and up to 21.56% efficiency enable more power on every string. System designers can reach target capacity using fewer modules and structures, reducing installation labor and balance of system costs.

Bifacial generation boosts energy yield: Bifacial construction allows rear side light capture from ground reflection and diffuse radiation. This design can increase total energy production significantly over monofacial modules, especially on bright surfaces or snow covered sites.

Durable build for harsh environments: The panel operates reliably from -40°C to 85°C and uses tempered glass with an anti reflection coating. An anodized aluminium frame and a high grade junction box deliver mechanical strength and protection in demanding climates.

Long term performance assurance: A 15 year product warranty is paired with a 30 year power warranty. The guaranteed 84.95% output at year 30 and low 0.5% annual degradation rate help secure predictable long term returns for investors.

Flexible integration for modern systems: Support for 1500 V system voltage enables longer strings and fewer combiner boxes. The panel suits central and string inverters and integrates well into ground mount, tracker, and large rooftop installations.

How It Works

This Osda Solar ODA665-33V-MHD panel converts sunlight into direct current power using 132 half cut monocrystalline HJT cells. Each cell uses a heterojunction structure that improves light capture and reduces internal losses. When sunlight hits the glass surface, photons are absorbed and released as electrical energy within the silicon layers. This energy is collected through a dense grid of fine busbars, then combined into usable current at the module terminals. Bifacial construction allows both front and rear sides to convert light, which increases energy harvested throughout the day.

The module is wired into a string and connected to a compatible inverter through DC cabling and protection devices. The inverter converts DC power into AC electricity suitable for on grid or off grid systems. A 1500 V system rating enables long strings, which minimizes cable runs and improves system design efficiency. Robust encapsulation, tempered glass, and a sealed junction box protect the cells from moisture, dust, and mechanical stress. Over its lifetime, the panel maintains strong output thanks to optimized materials and tight quality control.

HJT monocrystalline cell conversion: Heterojunction cells combine crystalline silicon wafers with thin amorphous silicon layers. This configuration reduces recombination losses and delivers high open circuit voltage and strong temperature performance. As light enters the cell, an electric field guides charge carriers efficiently to the contacts, improving module level power.

Bifacial energy capture: The bifacial design lets both the front and back surfaces generate electricity. Light reflected from the ground, nearby structures, and diffuse sky radiation can be used by the rear side cells. This mechanism unlocks additional kWh per installed watt, especially on high albedo surfaces and open field installations.

System integration and protection: DC output from the panel flows through the junction box, which houses bypass diodes for protection against partial shading. Strings of modules are combined at higher voltage and connected to inverters or combiner boxes. Certified insulation, waterproof IP rated junction boxes, and quality connectors ensure safe and stable operation over decades.

Technical Specifications

Brand	Osda Solar (Ningbo Osda Solar Co., Ltd.)
Country of Origin	China
Model Number	ODA665-33V-MHD
Module Type	Bifacial monocrystalline solar panel
Cell Technology	HJT monocrystalline, SMBB technology
Cell Size	210 × 105 mm
Number of Cells	132 half cells
Front Side Maximum Power (Pmax)	665 Wp
Power Range (Bifacial)	645 ~ 670 Wp
Power Tolerance	0 ~ +3 %
Module Efficiency Range	20.76 ~ 21.56 %
Nominal Module Efficiency (Pmax 665 W)	21.4 %
Voltage at Maximum Power (Vmpp, front side 665 W)	38 V
Current at Maximum Power (Impp, front side 665 W)	17.5 A
Open Circuit Voltage (Voc, front side 665 W)	45.8 V
Short Circuit Current (Isc, front side 665 W)	18.58 A
Alternative Maximum Power (Pmax variant)	504 Wp (35.4 V, 14.24 A, Voc 43 V, Isc 14.98 A)
Maximum System Voltage	1500 V DC
Series Fuse Rating	30 A
Nominal Operating Temperature	45 ± 2 °C
Operating Temperature Range	-40 °C to 85 °C
Temperature Coefficient of Pmax	-0.34 % / °C
Temperature Coefficient of Voc	-0.25 % / °C
Temperature Coefficient of Isc	+0.04 % / °C
Total Degradation Rate (30 years)	84.95 % power guaranteed at year 30, ~0.5 % per year
Panel Dimensions (H × W × D)	2384 × 1303 × 30 mm
Panel Weight	38 kg
Glass Type	Tempered glass with anti reflection coating
Glass Thickness	2.0 mm
Frame Material and Finish	Anodized aluminium frame, corrosion resistant
Junction Box Protection	IP67 / IP68 waterproof junction box
Junction Box Diodes	3 bypass diodes integrated

Certifications & Compliance

Certifications: IEC 61215, IEC 61730, TUV, MCS, CEC, ISO, CE, CQC and related international standards for safety and performance.
Inverter Compatibility: Compatible with most modern 1500 V string and central inverters that support high power bifacial modules.
Environmental: Designed for enhanced mechanical load resistance, certified to withstand 2400 Pa wind load and 5400 Pa snow load, with excellent anti PID performance for long term reliability.
Warranty: 15 year product workmanship warranty and 30 year linear performance warranty, with power output guaranteed at 84.95% of initial rating in year 30.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
