Osda Solar ODA675-33V-MHD

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Osda Solar ODA675-33V-MHD

Trusted by 1,000s of Contractors & Installers

Ships Direct from Manufacturer — typically leaves the dock in 3–7 business days

SKU PES-SPS-SOL-13707

OEM Authorized Dealer Full OEM Warranty

$180.00 USD

~~$0.01~~ $180.00 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-SPS-SOL-13707

Complete the job

Compatible gear contractors pair with this item

Microinverter APsystems QT2 1.7kW 3-Ph Microinverter 124062

$407.00

Racking kit Racking Hardware Kit — 20-panel System

$1,596.43

PV wire Omni Cable 8 AWG RHW-2 PV Wire Red 2000V

$1,220.00

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Osda Solar ODA675-33V-MHD $180.00

Certifications<

What is your return policy?

Returns are accepted within 30 days of delivery and require an RMA number. Returns of non-defective items carry a 40% restocking fee per our Refund Policy; defective, damaged-in-transit, or mis-shipped items are exempt. Special-order items are final sale.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

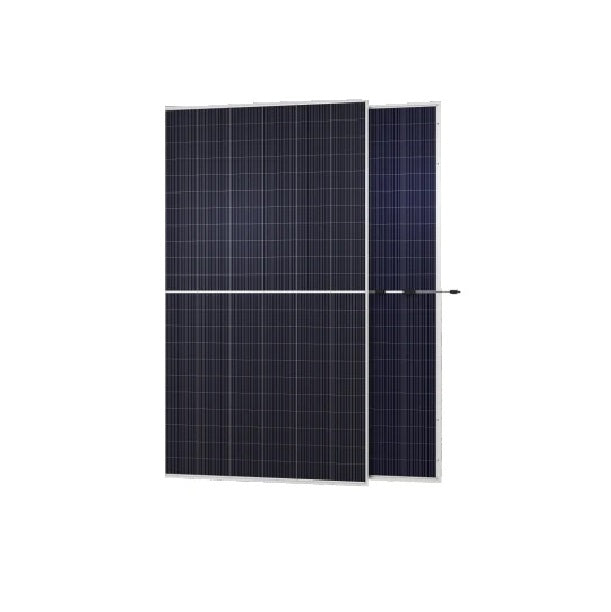

Osda Solar ODA675-33V-MHD 670W HJT Bifacial Monocrystalline Solar Panel

Model ODA675-33V-MHD | HJT Monocrystalline | 132 Half-Cell 210×105 mm | Bifacial | 1500V System Voltage

670 W

Max Power Output

21.56%

Module Efficiency

132

HJT Monocrystalline Cells

Product Overview

The Osda Solar ODA675-33V-MHD 670W HJT bifacial monocrystalline solar panel is engineered for high yield utility and commercial projects. This advanced module combines half-cut 210×105 mm cells with heterojunction technology for excellent efficiency and stable output. With a bifacial design, additional energy is harvested from reflected light on the rear side of the panel. The front side delivers up to 670 Wp with up to 21.56% efficiency, which helps reduce levelized cost of energy. Long life performance is supported with a 15 year product warranty and a 30 year power warranty. Power output is guaranteed at 84.95% of the original value by year thirty. The module is designed around a 1500 V system voltage to suit modern high string configurations. Robust construction, tempered glass, and an anodized aluminium frame ensure strong mechanical load resistance. Osda Solar manufactures this panel in China and supports global distributed photovoltaic projects. This product suits ground mount plants, commercial rooftops, and large off grid systems that demand reliable high power density.

Key Benefits

High power density for large arrays: Up to 670 Wp per module allows more installed capacity on limited racking space. Fewer panels are required to reach target system sizes, which can lower balance of system costs.

Bifacial energy gain: The bifacial construction captures light on both sides of the module. Extra yield can be realized over reflective surfaces such as light gravel, snow, or white membranes.

Reliable long term output: A 30 year power warranty guarantees at least 84.95% of initial output at year thirty. Degradation is controlled at around 0.5% per year, supporting stable revenue forecasts for project owners.

Optimized electrical performance: The module delivers a Vmpp of 38.2 V and Impp of 17.54 A at STC. These values suit high current string inverters and allow flexible string design on 1500 Vdc systems.

Robust mechanical design: Tempered glass with anti reflection coating and an anodized aluminium frame provide strong durability. The panel is engineered to withstand demanding outdoor conditions when installed correctly.

High efficiency monocrystalline cells: HJT monocrystalline cells with 21.56% peak efficiency help maximize kWh output from every square meter. This supports projects where roof or land area is constrained.

How It Works

Sunlight strikes the front and rear sides of the Osda Solar ODA675-33V-MHD panel and is converted into electricity. Each HJT monocrystalline cell generates direct current when photons are absorbed by the silicon layers. The half cut cell layout reduces internal resistive losses and improves shade tolerance across the module. Front side power reaches up to 670 Wp under standard test conditions with 1000 W per square meter irradiance. Rear side contribution increases total energy when the module is installed above reflective ground or roofing. The direct current from the panel is connected into strings and routed to a solar inverter. The inverter then converts DC into AC power which can be used on site or exported to the grid. Optimized temperature coefficients support more stable output as cell temperatures rise in strong sun. System designers can combine these modules in high voltage strings thanks to the 1500 V rating. Strong encapsulation, junction box sealing, and appropriate fusing help keep the system safe over its lifetime.

Bifacial light capture: Front glass with anti reflection coating captures direct and diffuse sunlight efficiently. The rear side also receives reflected light from surfaces below the array, increasing annual kilowatt hour production when site conditions are favorable.

HJT monocrystalline conversion: Heterojunction cell stacks combine crystalline silicon with thin amorphous layers. This structure supports high open circuit voltage and excellent low light behavior, which helps maintain output during cloudy conditions or early and late sun angles.

System integration and protection: A three diode junction box protects strings from reverse current and partial shading effects. The 30 A series fuse rating suits high current designs, and the 1500 V maximum system voltage allows long strings that reduce cabling and combiner hardware.

Technical Specifications

Brand	Osda Solar
Model Number	ODA675-33V-MHD
Cell Technology	HJT monocrystalline, half cut
Cell Size	210 × 105 mm
Number of Cells	132 cells
Module Type	Bifacial monocrystalline solar panel
Power Range	645 Wp to 670 Wp (front side)
Maximum Power (Pmax) STC	670 Wp
Panel Efficiency Range	20.76% to 21.56%
Panel Efficiency (max)	21.56%
Voltage at Maximum Power (Vmpp) STC	38.2 V
Current at Maximum Power (Impp) STC	17.54 A
Open Circuit Voltage (Voc) STC	46 V
Short Circuit Current (Isc) STC	18.62 A
Nominal Operating Power (NMOT Pmax)	508 Wp
Voltage at Maximum Power (Vmpp) NMOT	35.6 V
Current at Maximum Power (Impp) NMOT	14.28 A
Open Circuit Voltage (Voc) NMOT	43.2 V
Short Circuit Current (Isc) NMOT	15.02 A
Power Tolerance	0 to +3%
Total Degradation After 30 Years	84.95% of initial power guaranteed
Annual Degradation Rate	Approx. 0.5% per year
Nominal Module Temperature (NMOT)	45 ± 2 °C
Operating Temperature Range	-40 °C to +85 °C
Temperature Coefficient of Pmax	-0.34% / °C
Temperature Coefficient of Voc	-0.25% / °C
Temperature Coefficient of Isc	+0.04% / °C
Maximum System Voltage	1500 V DC
Series Fuse Rating	30 A
Module Dimensions (H × W × D)	2384 × 1303 × 30 mm
Weight	38 kg
Glass Type	Tempered glass with anti reflection coating
Glass Thickness	2.0 mm
Frame Type	Anodized aluminium frame
Junction Box Protection	IP67 / IP68 rated waterproof junction box
Junction Box Diodes	3 bypass diodes
Country of Origin	China

Certifications & Compliance

Certifications: Designed to comply with major IEC and CE photovoltaic standards used for utility and commercial projects. Specific certification lists are available from Osda Solar on request.
Inverter Compatibility: Suitable for most 1500 V string and central inverters that accept high current inputs within the stated electrical ratings. Always verify final string configuration with inverter manufacturer guidelines.
Environmental: Engineered for outdoor use with IP67 or IP68 junction box protection and robust framed construction to resist harsh environments when installed correctly.
Warranty: 15 year limited product warranty and 30 year linear power warranty with minimum 84.95% of initial output guaranteed at year thirty, assuming standard operating conditions and compliant installation.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and project specific pricing

What is your return policy?

What’s covered by your return policy?

How long will it take to receive my order?

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Osda Solar ODA675-33V-MHD 670W HJT Bifacial Monocrystalline Solar Panel

Model ODA675-33V-MHD | HJT Monocrystalline | 132 Half-Cell 210×105 mm | Bifacial | 1500V System Voltage

670 W

Max Power Output

21.56%

Module Efficiency

132

HJT Monocrystalline Cells

Product Overview

Key Benefits

Bifacial energy gain: The bifacial construction captures light on both sides of the module. Extra yield can be realized over reflective surfaces such as light gravel, snow, or white membranes.

How It Works

Technical Specifications

Brand	Osda Solar
Model Number	ODA675-33V-MHD
Cell Technology	HJT monocrystalline, half cut
Cell Size	210 × 105 mm
Number of Cells	132 cells
Module Type	Bifacial monocrystalline solar panel
Power Range	645 Wp to 670 Wp (front side)
Maximum Power (Pmax) STC	670 Wp
Panel Efficiency Range	20.76% to 21.56%
Panel Efficiency (max)	21.56%
Voltage at Maximum Power (Vmpp) STC	38.2 V
Current at Maximum Power (Impp) STC	17.54 A
Open Circuit Voltage (Voc) STC	46 V
Short Circuit Current (Isc) STC	18.62 A
Nominal Operating Power (NMOT Pmax)	508 Wp
Voltage at Maximum Power (Vmpp) NMOT	35.6 V
Current at Maximum Power (Impp) NMOT	14.28 A
Open Circuit Voltage (Voc) NMOT	43.2 V
Short Circuit Current (Isc) NMOT	15.02 A
Power Tolerance	0 to +3%
Total Degradation After 30 Years	84.95% of initial power guaranteed
Annual Degradation Rate	Approx. 0.5% per year
Nominal Module Temperature (NMOT)	45 ± 2 °C
Operating Temperature Range	-40 °C to +85 °C
Temperature Coefficient of Pmax	-0.34% / °C
Temperature Coefficient of Voc	-0.25% / °C
Temperature Coefficient of Isc	+0.04% / °C
Maximum System Voltage	1500 V DC
Series Fuse Rating	30 A
Module Dimensions (H × W × D)	2384 × 1303 × 30 mm
Weight	38 kg
Glass Type	Tempered glass with anti reflection coating
Glass Thickness	2.0 mm
Frame Type	Anodized aluminium frame
Junction Box Protection	IP67 / IP68 rated waterproof junction box
Junction Box Diodes	3 bypass diodes
Country of Origin	China

Certifications & Compliance

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and project specific pricing
