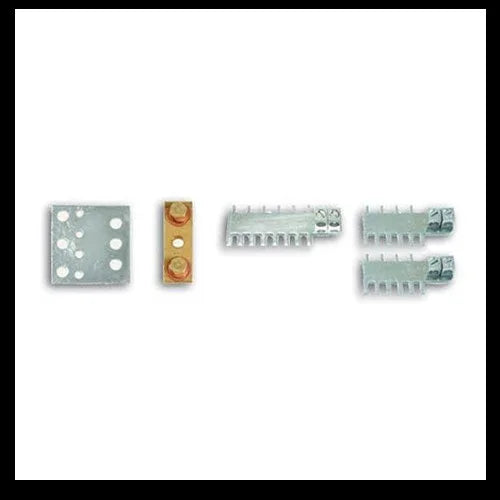

Outback Power External DC Grounding Bus Connector - EXT-DCBUS

The Outback Power EXT-DCBUS is designed to simplify code-compliant DC connections, enhancing safety and efficiency. This exceptional grounding bus connector is ideal for those in need of reliable, high-conductivity connections, minimizing losses and ensuring optimal performance. With its durable design and solid construction, it stands out in the realm of integration enclosures and hardware.

Product Features

Easy Code Compliance

The FLEXware DC bus connectors, such as the EXT-DCBUS, make achieving code-compliant DC connections an effortless task. This feature ensures that installations meet regulatory requirements, giving users peace of mind with their electrical setups.

High Conductivity

The EXT-DCBUS boasts exceptional conductivity that significantly reduces energy loss. By utilizing high-grade plated copper, this connector ensures that every connection is efficient, resulting in improved system performance.

Robust Construction

Constructed with insulating standoffs and a protective cover, the Outback Power EXT-DCBUS enhances safety during operation. This feature not only safeguards the connector but also ensures durability during long-term use in various environments.

Multiple Connection Options

This bus connector features 22 holes, allowing for versatile connections and flexibility in various applications. Users can easily connect multiple breakers, supporting both high- and low-voltage systems with ease.

High Current Rating

Rated for 1000A, the EXT-DCBUS is perfect for high-demand applications, ensuring that your installations can handle significant loads without compromising on performance or safety.

How It Works

The EXT-DCBUS facilitates DC grounding by allowing for efficient and effective connections to grounding systems. This connector is designed to integrate seamlessly with other components of a DC system, ensuring reliable operation and enhanced safety.

Grounding Bus Bar

The grounding bus bar acts as a central point for grounding connections, ensuring all components are properly earthed. This reduces the risk of electrical faults and improves overall system safety.

Insulation and Covers

With its insulating standoffs and covers, the EXT-DCBUS protects against accidental short circuits and electrical interference. These features contribute significantly to the operational safety of the entire system.

Versatile Breaker Connections

This bus connector allows for various breaker configurations, accommodating different amperage needs, making it an adaptable solution for a wide range of setups.

Specifications
