Philadelphia Solar 108 Half Cells Black/Black 440w Solar Panel - PS-MNB108-(HCBF)-440W

Philadelphia Solar 108 Half Cells Black/Black 440w Solar Panel - PS-MNB108-(HCBF)-440W

$180.40 USD

$0.5/watt

$180.40 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SPL-0150
  • Brands: Philadelphia Solar
  • Height: 1133
  • Length: 1721
  • Panel wattage: 440
  • Short description: Explore our full range of Solar Modules <a href="https://www.portlandiaelectric.supply/solar-panels/" target="_new" rel="noopener">here</a> to find the perfect solution for your energy needs.
  • Technology:
    • Half-Cell
View full details

Product Description

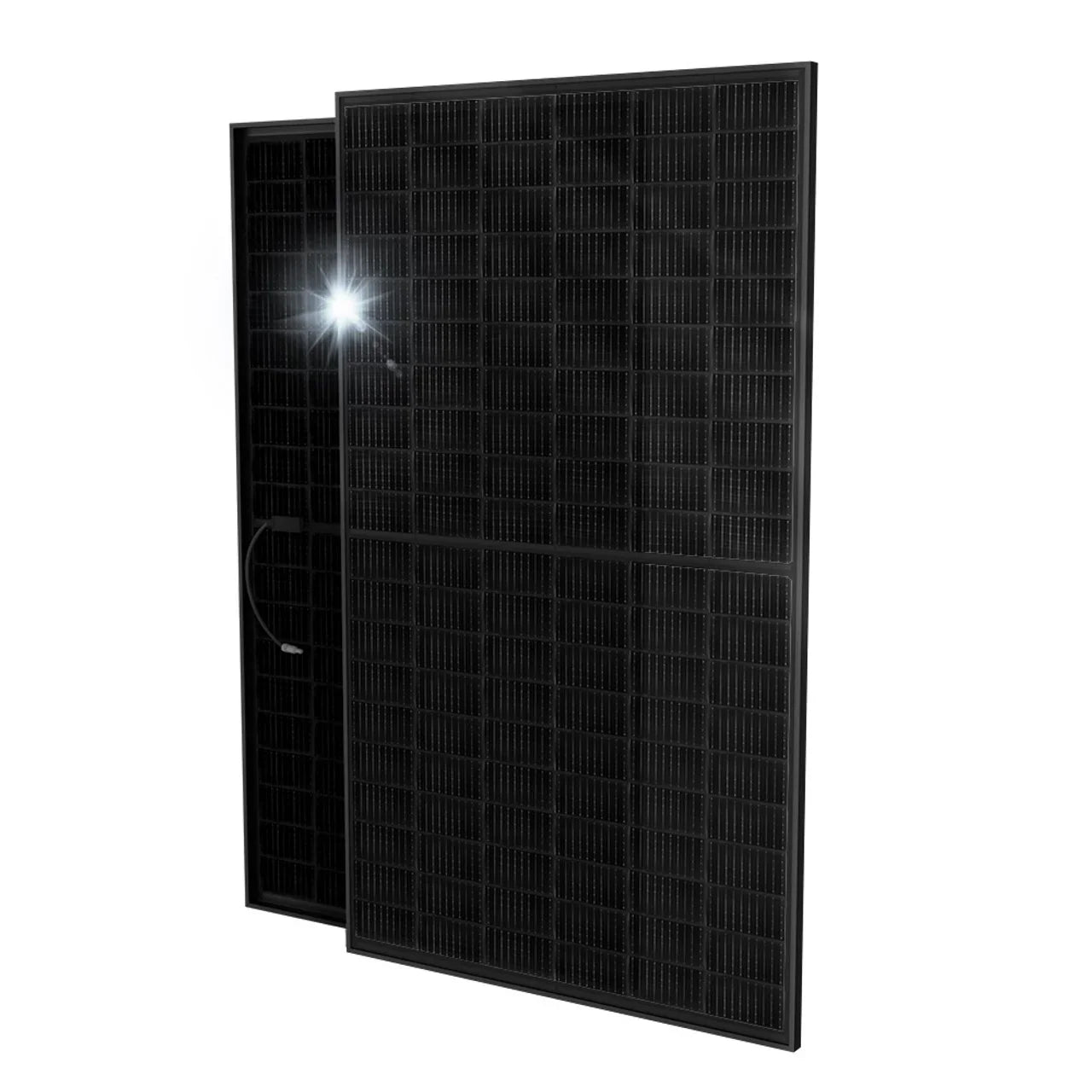

  • Philadelphia Solar 108 Half Cells Black/Black 440w Solar Panel


    The Philadelphia Solar PS-MNB108-(HCBF)-440W is a premium photovoltaic module engineered for maximum energy efficiency and durability. With a power output of 440 W and a sleek black-on-black design, this panel is ideal for residential and commercial applications, combining aesthetics with performance.

    Product Features

    High Efficiency


    Featuring advanced half-cell technology, the Philadelphia Solar PS-MNB108-(HCBF)-440W achieves superior energy conversion efficiency, delivering consistent and reliable power output.

    Durable Design


    The module is built with a robust tempered glass and aluminum alloy frame to withstand harsh weather conditions, including heavy snow loads and strong winds.

    Optimized Performance


    Equipped with anti-reflective coating and PERC technology, this solar panel enhances light capture and minimizes energy losses for optimal power generation.

    Environmentally Friendly


    Designed with sustainable manufacturing practices, the Philadelphia Solar PS-MNB108-(HCBF)-440W aligns with global green energy standards, ensuring low environmental impact.

    Extended Warranty


    Enjoy peace of mind with a 25-year performance warranty, guaranteeing high energy output throughout the lifespan of the panel.

    How It Works

    Half-Cell Technology


    The Philadelphia Solar PS-MNB108-(HCBF)-440W 108 half-cell configuration minimizes resistance and increases energy efficiency, especially under partial shading conditions.

    Monocrystalline PERC Cells


    High-purity monocrystalline PERC cells ensure exceptional power generation by Philadelphia Solar PS-MNB108-(HCBF)-440W, even in low-light environments.

    Smart Junction Box


    The IP68-rated junction box offers excellent protection against dust and water ingress, ensuring reliable electrical performance.

    Specifications















































    Model Number PS-MNB108-(HCBF)-440W
    Nominal Power (Pmax) 440 W
    Module Efficiency 20.5%
    Optimum Operating Voltage (Vmp) 41.2 V
    Optimum Operating Current (Imp) 10.68 A
    Open Circuit Voltage (Voc) 49.5 V
    Short Circuit Current (Isc) 11.18 A
    Dimensions 1765 × 1048 × 35 mm
    Weight 21.5 kg
    Cell Type Monocrystalline PERC
    Frame Anodized Aluminium Alloy
    Glass 3.2 mm Tempered, Anti-Reflective Coating
    Operating Temperature -40 °C to +85 °C
    Max System Voltage 1500 V DC
    Warranty 25 Years Performance Warranty

    Certification


    This product meets international safety and performance standards, ensuring reliable operation and energy output.
