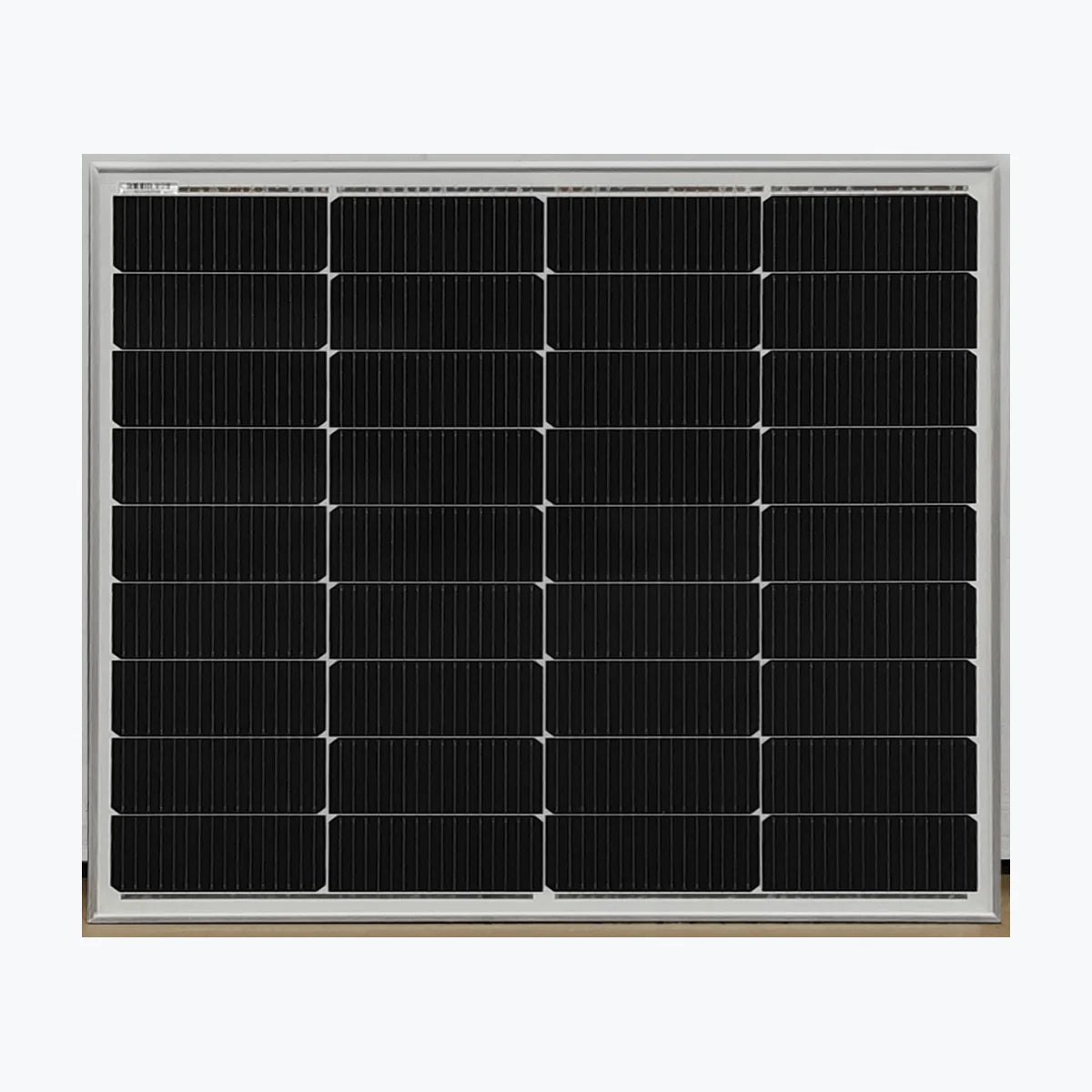

PolyCrown Solar Tech NS-100W
PayPal Pay in 4 interest-free payments of $20.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-14345
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. NS-100W Product Warranty 15 Years Power Warranty 15 Years of 90 %, 25 Years of 85 % Total Degradation Rate ⏳ 0.6 % Power Tolerance 0 ~ +5 % Maximum Power (Pmax) 100 Wp Voltage at Maximum Power (Vmpp) 19.8 V Current at Maximum Power (Impp) 5.06 A Open Circuit Voltage (Voc) 23.4 V Short Circuit Current (Isc) 5.34 A Panel Efficiency 21.29 % Maximum Power (Pmax) 76 Wp Voltage at Maximum Power (Vmpp) 19 V Current at Maximum Power (Impp) 3.98 A Open Circuit Voltage (Voc) 22.21 V Short Circuit Current (Isc) 4.45 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1000 V Series Fuse Rating 15 A Panel Dimension (H/W/D) 610x770x30 mm Weight 5 kg Cell Size 182×61 mm Cell Number 36 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Aluminium Junction Box Diodes
Technology: PERC, TOPCon, N-type
Power Range: 100 Wp
Panel Efficiency: 21.29%
Weight: 5 kg
Seller Name: PolyCrown Solar Tech
Country: China
| SKU | PES-SPS-SOL-14345 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Wattage |
No documents available for this product. Contact us to request documentation.
