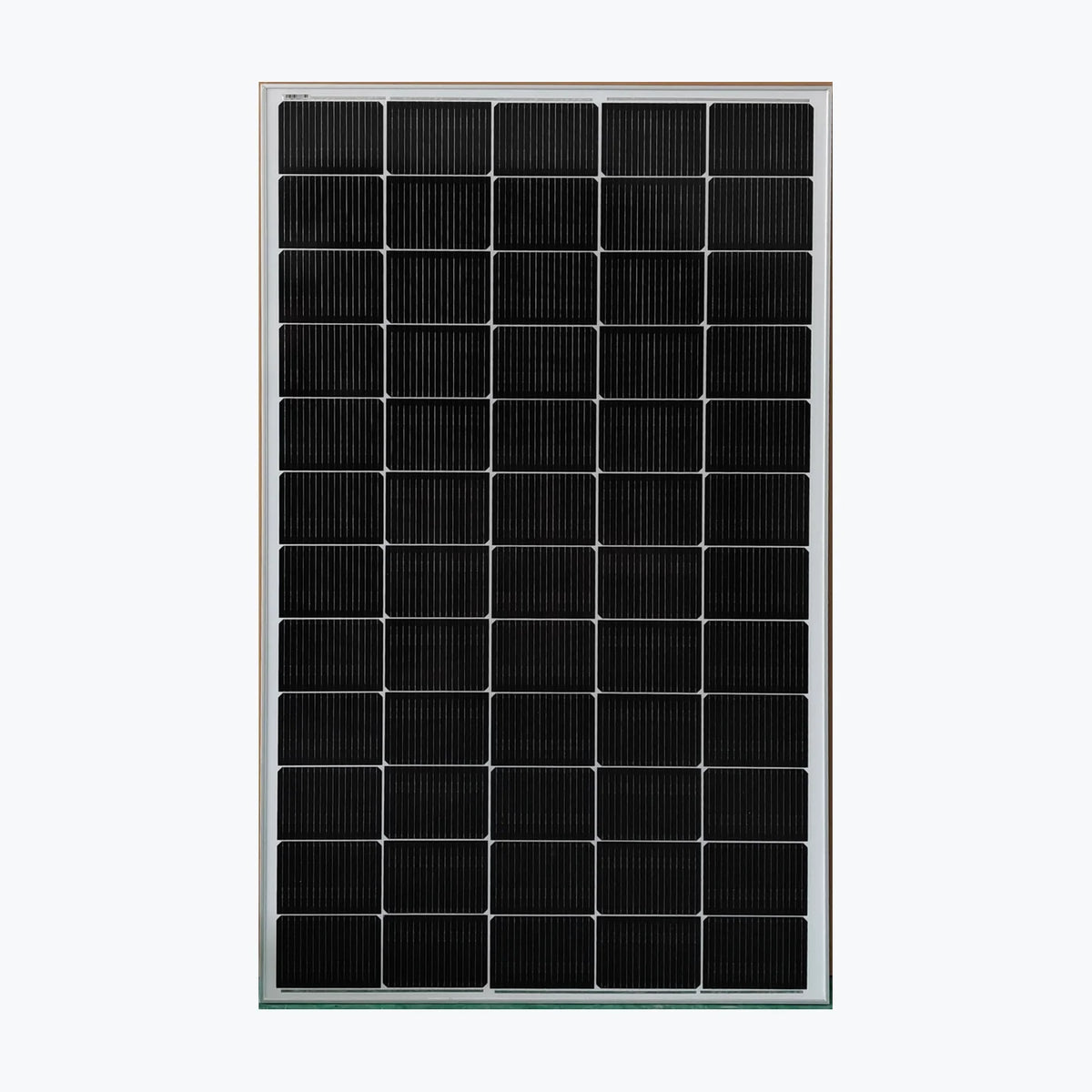

PolyCrown Solar Tech NS-320MH-60
PolyCrown Solar Tech NS-320MH-60
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-14352
- Container price:
- Container qty:
- Odoo id:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. NS-320MH-60 Product Warranty 15 Years Power Warranty 15 Years of 93 %, 25 Years of 89 % Total Degradation Rate ⏳ 0.44 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 320 Wp Voltage at Maximum Power (Vmpp) 32.21 V Current at Maximum Power (Impp) 9.94 A Open Circuit Voltage (Voc) 37.83 V Short Circuit Current (Isc) 10.57 A Panel Efficiency 19.66 % Maximum Power (Pmax) 242 Wp Voltage at Maximum Power (Vmpp) 30.35 V Current at Maximum Power (Impp) 7.97 A Open Circuit Voltage (Voc) 35.8 V Short Circuit Current (Isc) 8.61 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 15 A Panel Dimension (H/W/D) 1640x992x30 mm Weight 17 kg Cell Number 60 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Diod
Technology: PERC, TOPCon, HJT, N-type
Power Range: 320 ~ 360 Wp
Panel Efficiency: 19.66 ~ 22.12 %
Weight: 17 kg
Seller Name: PolyCrown Solar Tech
Country: China -
