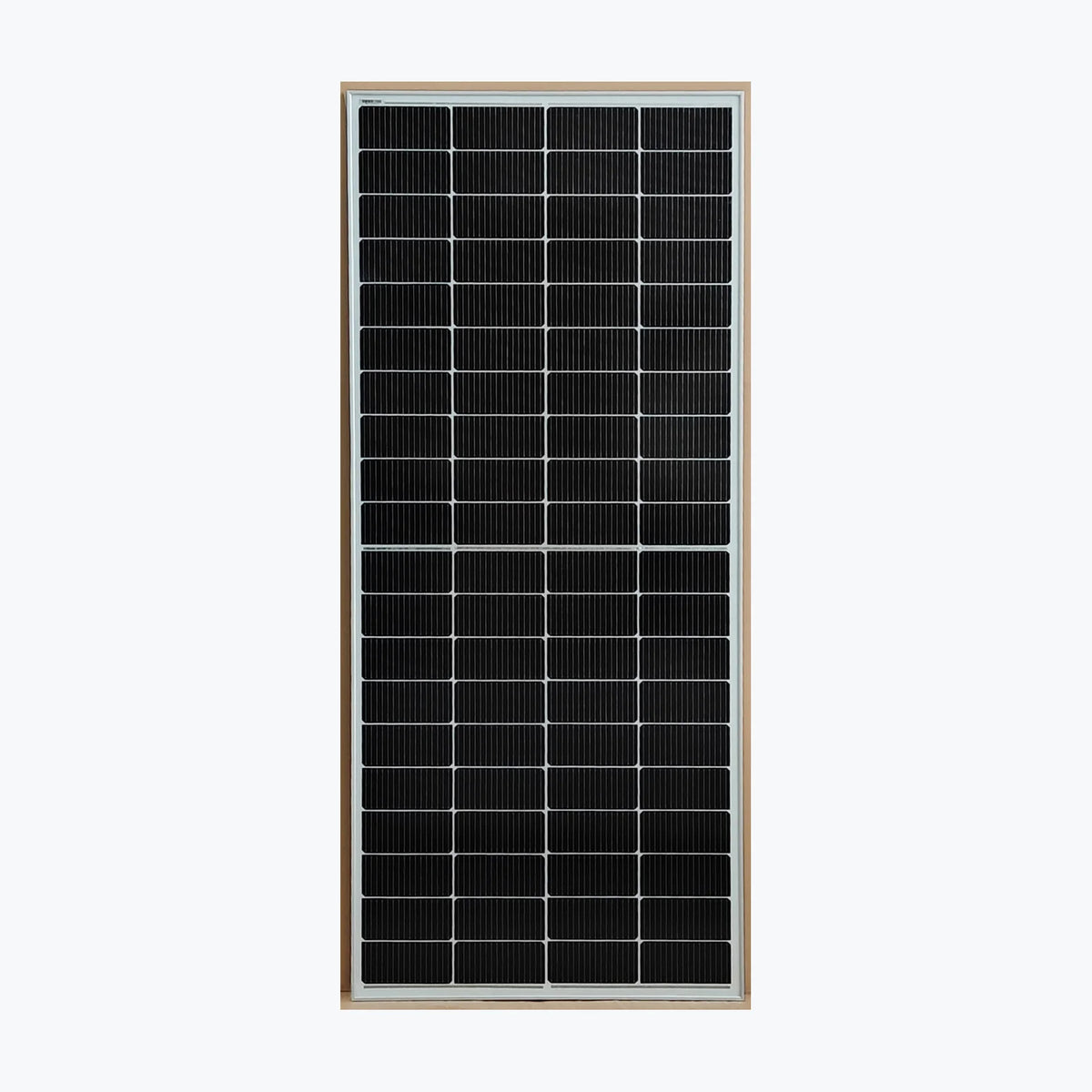

PolyCrown Solar Tech NS-320MH-80
PayPal Pay in 4 interest-free payments of $28.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-14353
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. NS-320MH-80 Product Warranty 15 Years Power Warranty 15 Years of 90 %, 25 Years of 85 % Total Degradation Rate ⏳ 0.6 % Power Tolerance 0 ~ +5 % Maximum Power (Pmax) 320 Wp Voltage at Maximum Power (Vmpp) 23.62 V Current at Maximum Power (Impp) 13.55 A Open Circuit Voltage (Voc) 28.06 V Short Circuit Current (Isc) 14.62 A Panel Efficiency 22.45 % Maximum Power (Pmax) 242 Wp Voltage at Maximum Power (Vmpp) 22.26 V Current at Maximum Power (Impp) 10.87 A Open Circuit Voltage (Voc) 26.56 V Short Circuit Current (Isc) 11.91 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1900x750x30 mm Weight 15 kg Cell Number 80 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Aluminium Junction Box Diodes 2 J
Technology: PERC, TOPCon, N-type
Power Range: 290 ~ 330 Wp
Panel Efficiency: 20.35 ~ 23.15 %
Weight: 15 kg
Seller Name: PolyCrown Solar Tech
Country: China
| SKU | PES-SPS-SOL-14353 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
