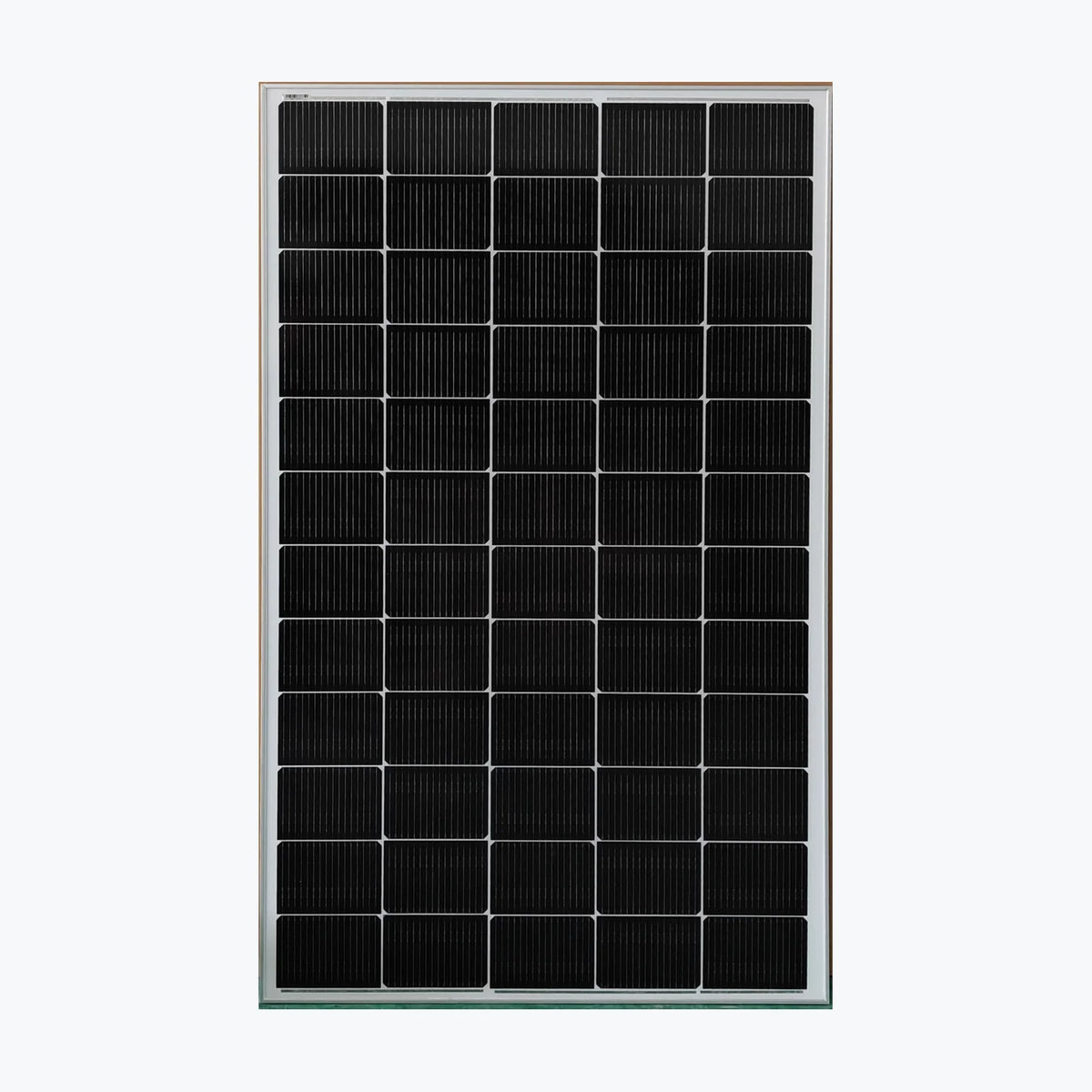

PolyCrown Solar Tech NS-340MH-60
PayPal Pay in 4 interest-free payments of $29.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-14356
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. NS-340MH-60 Product Warranty 15 Years Power Warranty 15 Years of 93 %, 25 Years of 89 % Total Degradation Rate ⏳ 0.44 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 340 Wp Voltage at Maximum Power (Vmpp) 33.02 V Current at Maximum Power (Impp) 10.3 A Open Circuit Voltage (Voc) 38.63 V Short Circuit Current (Isc) 11.01 A Panel Efficiency 20.89 % Maximum Power (Pmax) 257 Wp Voltage at Maximum Power (Vmpp) 31.11 V Current at Maximum Power (Impp) 8.26 A Open Circuit Voltage (Voc) 36.56 V Short Circuit Current (Isc) 8.97 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 15 A Panel Dimension (H/W/D) 1640x992x30 mm Weight 17 kg Cell Number 60 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Dio
Technology: PERC, TOPCon, HJT, N-type
Power Range: 320 ~ 360 Wp
Panel Efficiency: 19.66 ~ 22.12 %
Weight: 17 kg
Seller Name: PolyCrown Solar Tech
Country: China
| SKU | PES-SPS-SOL-14356 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Cell type | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
