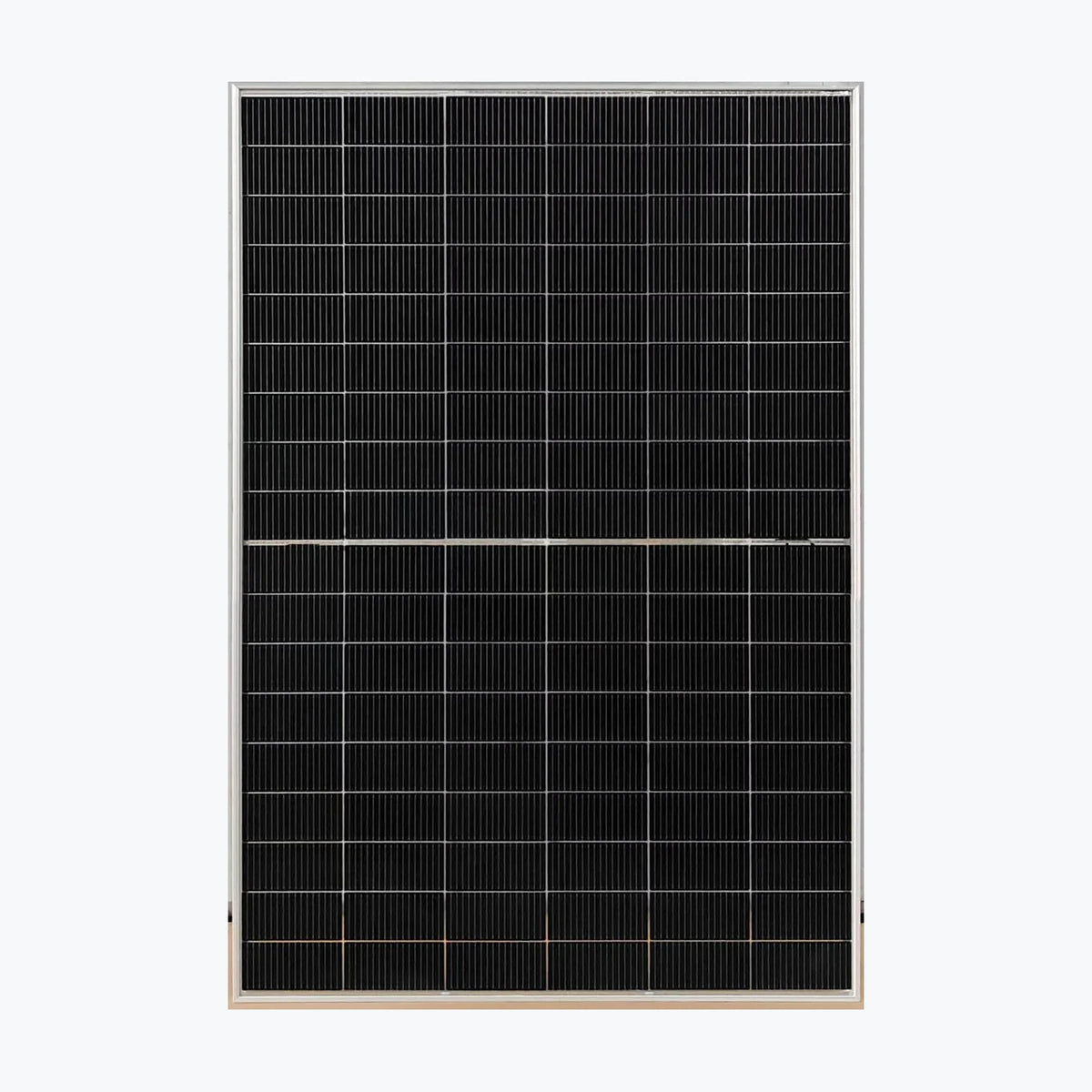

    PolyCrown Solar Tech NS-420MH-108

    PolyCrown Solar Tech NS-420MH-108

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-14364
    • Container price: $43.20 USD
    • Container qty: 720
    • Odoo id: 24,695
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. NS-420MH-108 Product Warranty 15 Years Power Warranty 15 Years of 93 %, 25 Years of 89 % Total Degradation Rate ⏳ 0.44 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 420 Wp Voltage at Maximum Power (Vmpp) 32.84 V Current at Maximum Power (Impp) 12.79 A Open Circuit Voltage (Voc) 39.23 V Short Circuit Current (Isc) 13.55 A Panel Efficiency 21.01 % Maximum Power (Pmax) 317 Wp Voltage at Maximum Power (Vmpp) 30.94 V Current at Maximum Power (Impp) 10.26 A Open Circuit Voltage (Voc) 37.13 V Short Circuit Current (Isc) 11.04 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1762x1134x30 mm Weight 20 kg Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction B

      Technology: TOPCon, N-type
      Power Range: 420 ~ 460 Wp
      Panel Efficiency: 21.01 ~ 23.02 %
      Weight: 20 kg
      Seller Name: PolyCrown Solar Tech
      Country: China
