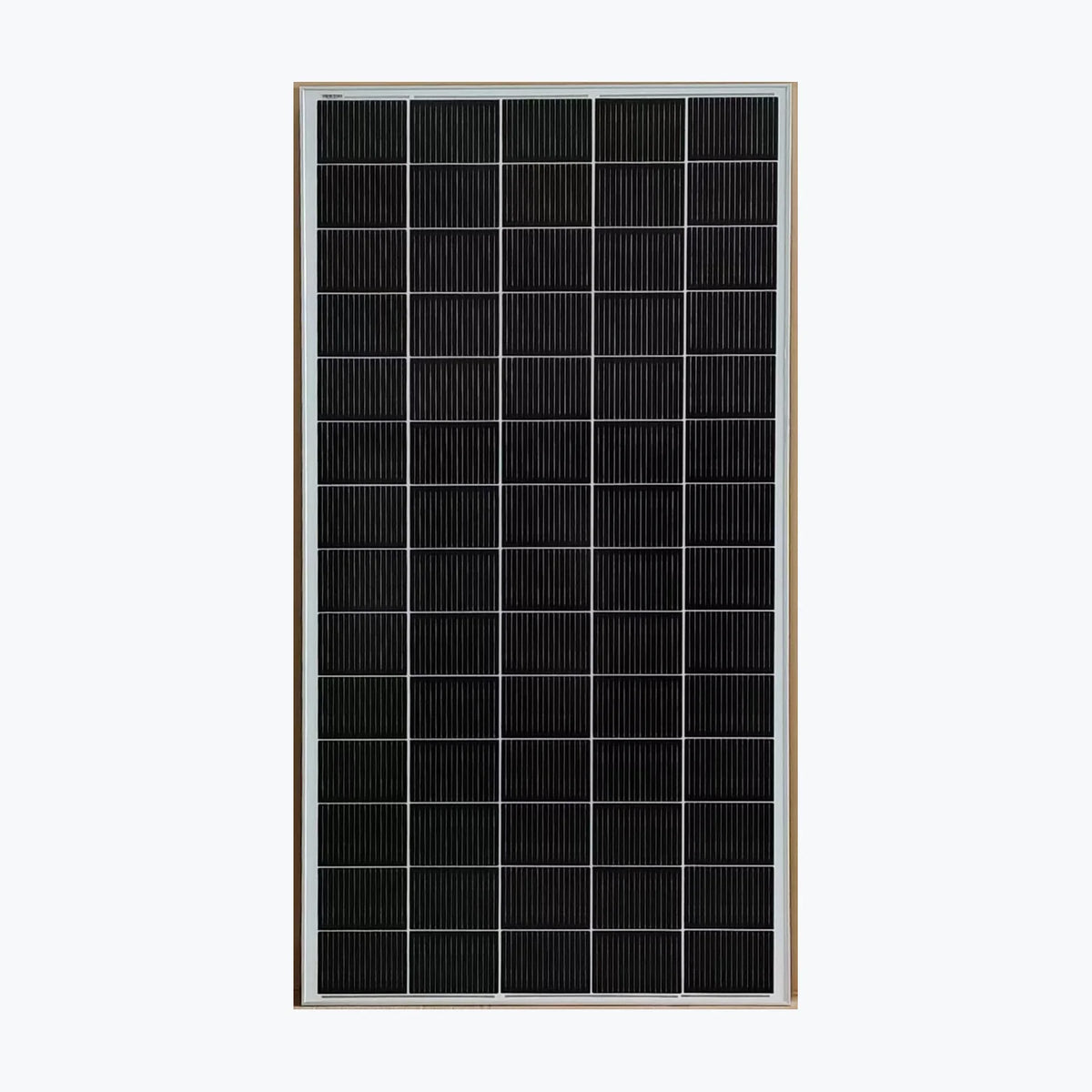

    PolyCrown Solar Tech NS-420MH-70

    PolyCrown Solar Tech NS-420MH-70

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-14365
    • Container price: $43.20 USD
    • Container qty: 720
    • Odoo id: 25,119
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    • Unit price: $0.08 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. NS-420MH-70 Product Warranty 15 Years Power Warranty 15 Years of 93 %, 25 Years of 89 % Total Degradation Rate ⏳ 0.44 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 420 Wp Voltage at Maximum Power (Vmpp) 39.34 V Current at Maximum Power (Impp) 10.68 A Open Circuit Voltage (Voc) 45.78 V Short Circuit Current (Isc) 11.46 A Panel Efficiency 22.28 % Maximum Power (Pmax) 317 Wp Voltage at Maximum Power (Vmpp) 37.07 V Current at Maximum Power (Impp) 8.57 A Open Circuit Voltage (Voc) 43.33 V Short Circuit Current (Isc) 9.34 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 15 A Panel Dimension (H/W/D) 1900x992x30 mm Weight 20 kg Cell Number 70 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Di

      Technology: PERC, TOPCon, HJT, N-type
      Power Range: 380 ~ 420 Wp
      Panel Efficiency: 20.16 ~ 22.28 %
      Weight: 20 kg
      Seller Name: PolyCrown Solar Tech
      Country: China
