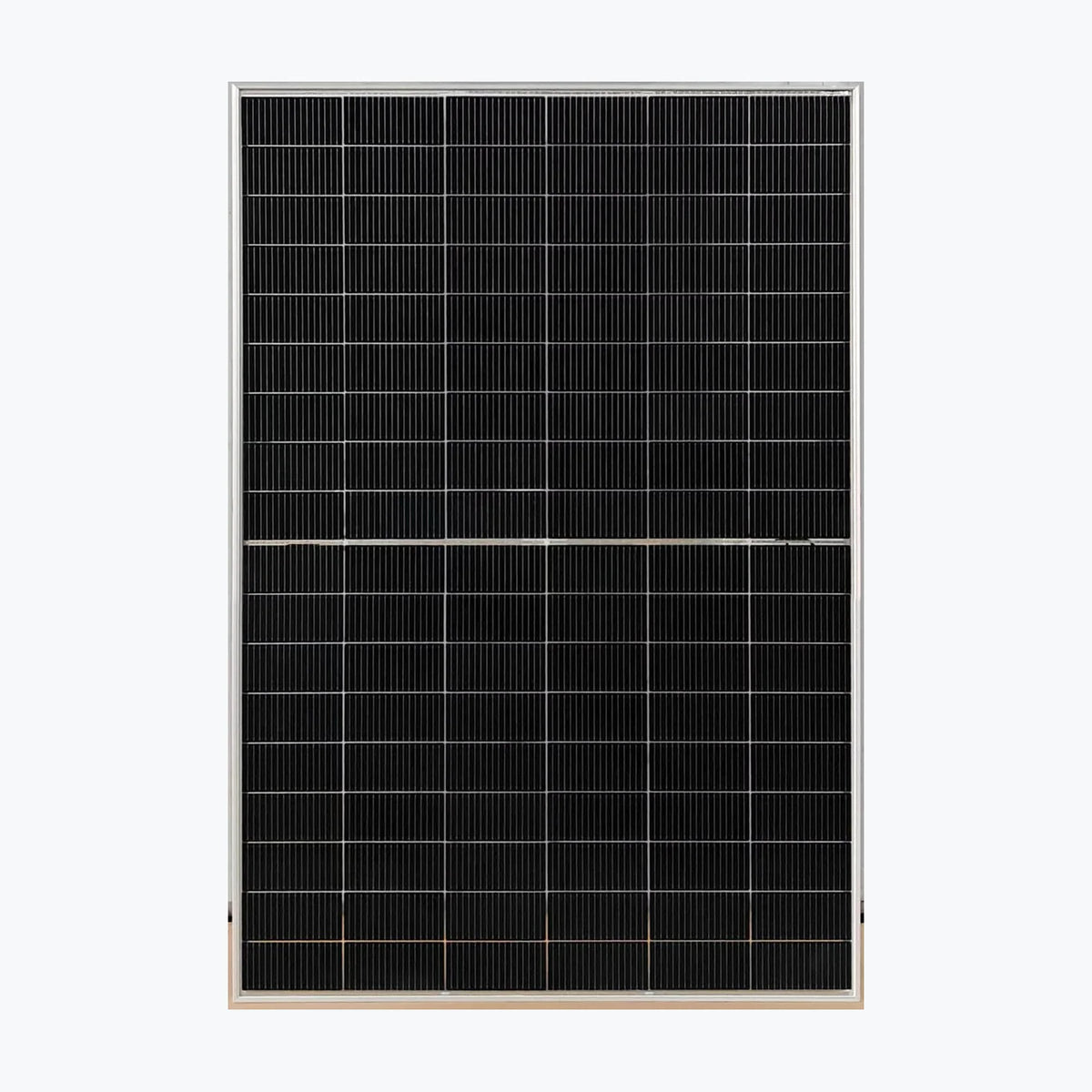

PolyCrown Solar Tech NS-430MH-108
PolyCrown Solar Tech NS-430MH-108
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-14366
- Container price:
- Container qty:
- Odoo id:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. NS-430MH-108 Product Warranty 15 Years Power Warranty 15 Years of 93 %, 25 Years of 89 % Total Degradation Rate ⏳ 0.44 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 430 Wp Voltage at Maximum Power (Vmpp) 33.14 V Current at Maximum Power (Impp) 12.98 A Open Circuit Voltage (Voc) 39.53 V Short Circuit Current (Isc) 13.76 A Panel Efficiency 21.52 % Maximum Power (Pmax) 325 Wp Voltage at Maximum Power (Vmpp) 31.23 V Current at Maximum Power (Impp) 10.41 A Open Circuit Voltage (Voc) 37.41 V Short Circuit Current (Isc) 11.21 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1762x1134x30 mm Weight 20 kg Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction B
Technology: TOPCon, N-type
Power Range: 420 ~ 460 Wp
Panel Efficiency: 21.01 ~ 23.02 %
Weight: 20 kg
Seller Name: PolyCrown Solar Tech
Country: China -
