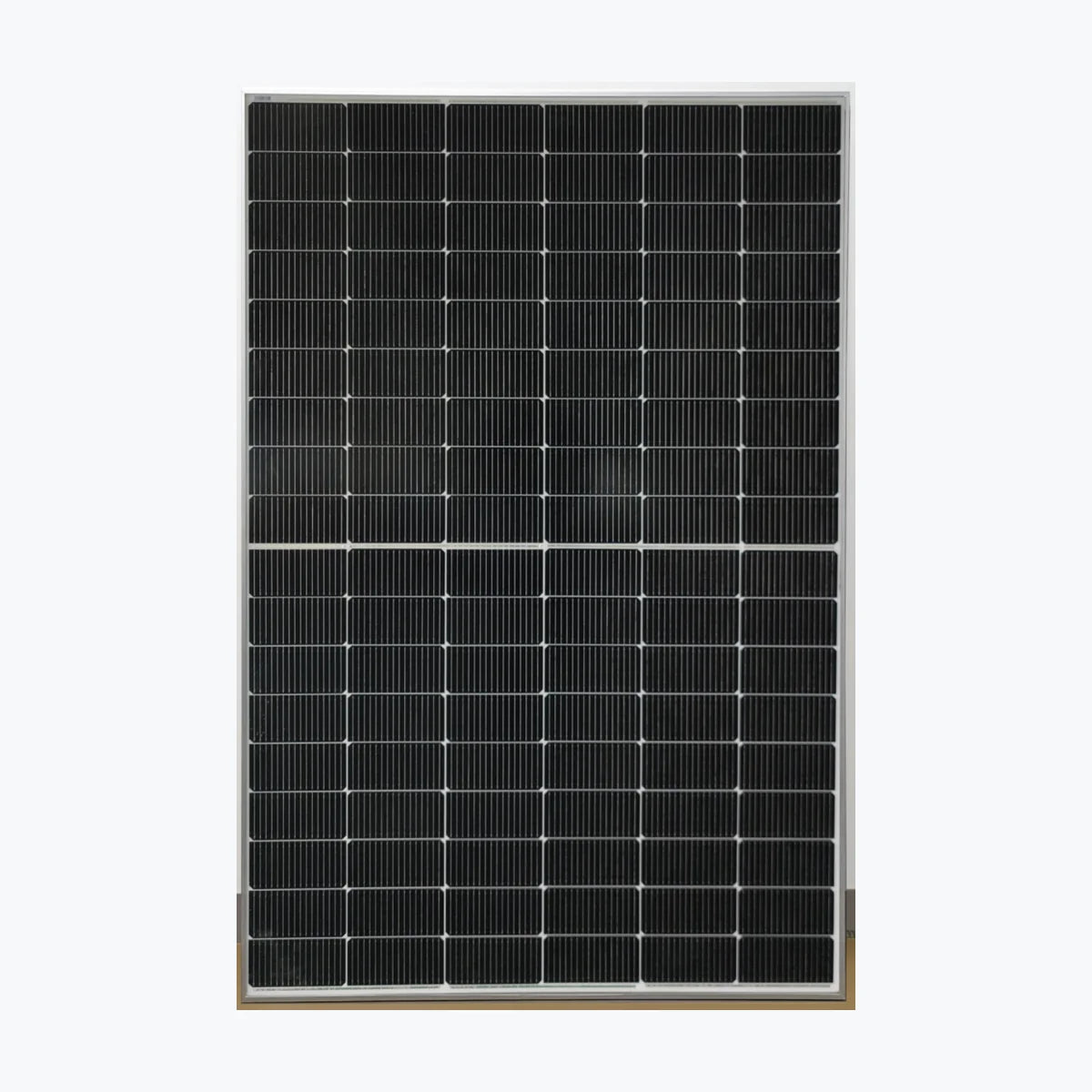

    PolyCrown Solar Tech NS-435MH-108

    PolyCrown Solar Tech NS-435MH-108

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-14368
    • Container price: $48.60 USD
    • Container qty: 720
    • Odoo id: 25,045
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. NS-435MH-108 Product Warranty 15 Years Power Warranty 15 Years of 93 %, 25 Years of 89 % Total Degradation Rate ⏳ 0.44 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 435 Wp Voltage at Maximum Power (Vmpp) 31.88 V Current at Maximum Power (Impp) 13.65 A Open Circuit Voltage (Voc) 38.01 V Short Circuit Current (Isc) 14.67 A Panel Efficiency 22.25 % Maximum Power (Pmax) 329 Wp Voltage at Maximum Power (Vmpp) 30.04 V Current at Maximum Power (Impp) 10.95 A Open Circuit Voltage (Voc) 35.97 V Short Circuit Current (Isc) 11.95 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1724x1134x30 mm Weight 19.5 kg Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction

      Technology: Bifacial, TOPCon, HJT, N-type
      Power Range: 410 ~ 440 Wp
      Panel Efficiency: 20.97 ~ 22.5 %
      Weight: 19.5 kg
      Seller Name: PolyCrown Solar Tech
      Country: China
