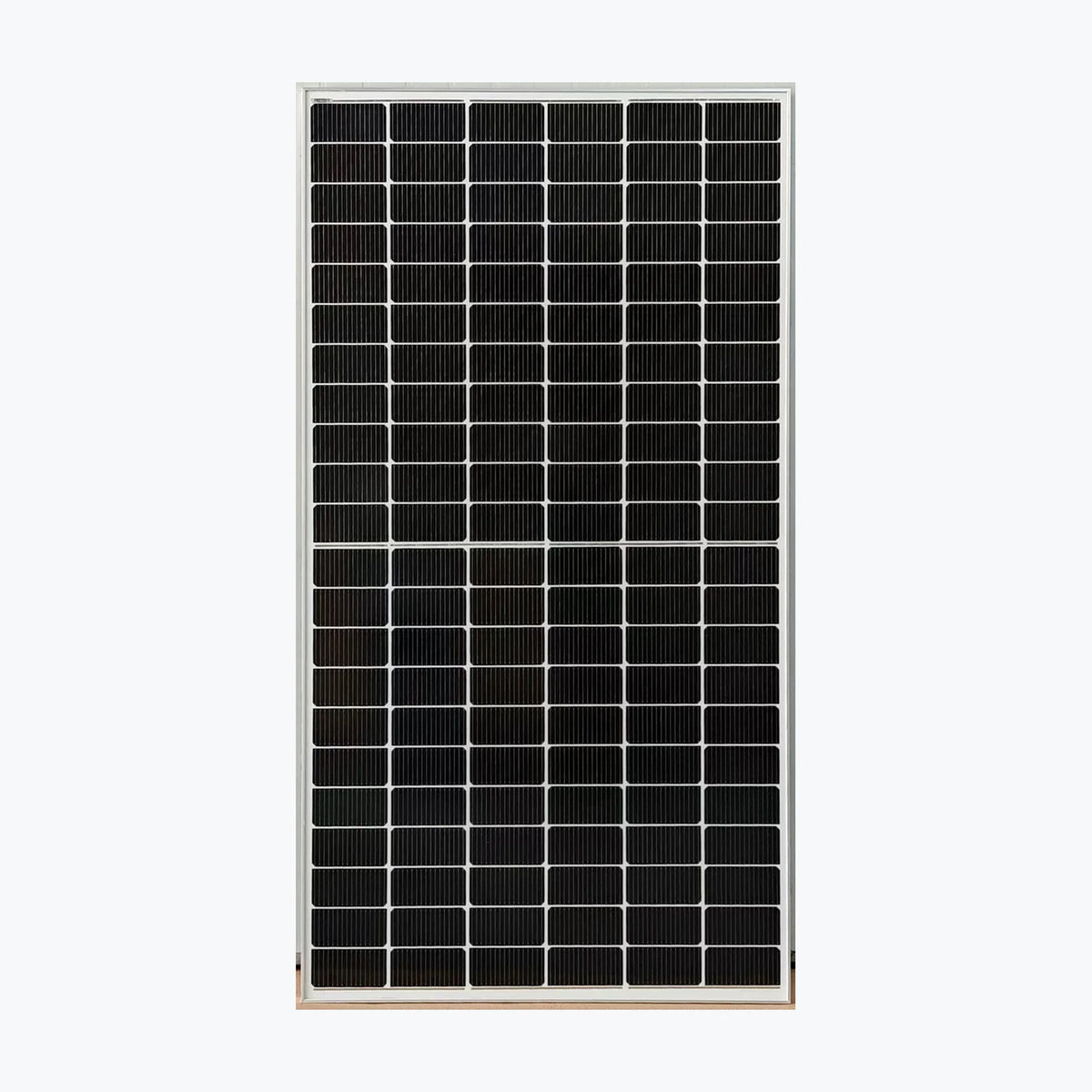

PolyCrown Solar Tech NS-500MH-132
PayPal Pay in 4 interest-free payments of $43.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-14380
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. NS-500MH-132 Product Warranty 15 Years Power Warranty 15 Years of 93 %, 25 Years of 89 % Total Degradation Rate ⏳ 0.44 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 500 Wp Voltage at Maximum Power (Vmpp) 37.68 V Current at Maximum Power (Impp) 13.27 A Open Circuit Voltage (Voc) 45.21 V Short Circuit Current (Isc) 14.17 A Panel Efficiency 21.05 % Maximum Power (Pmax) 378 Wp Voltage at Maximum Power (Vmpp) 35.51 V Current at Maximum Power (Impp) 10.64 A Open Circuit Voltage (Voc) 42.79 V Short Circuit Current (Isc) 11.55 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2094x1134x30 mm Weight 24 kg Cell Number 132 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction B
Technology: PERC, TOPCon, HJT, N-type
Power Range: 500 ~ 550 Wp
Panel Efficiency: 21.05 ~ 23.16 %
Weight: 24 kg
Seller Name: PolyCrown Solar Tech
Country: China
| SKU | PES-SPS-SOL-14380 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
