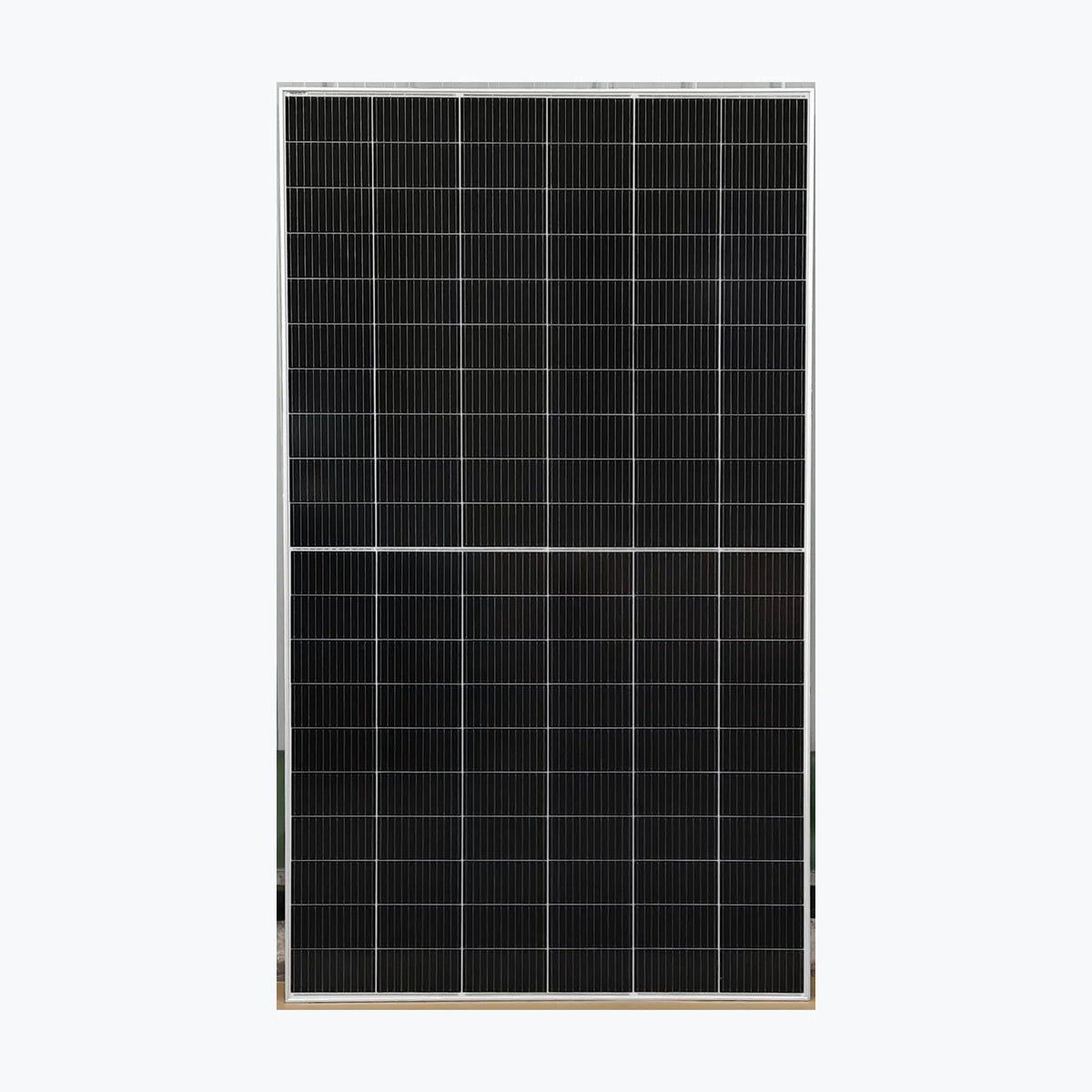

PolyCrown Solar Tech NS-640MH-120
PayPal Pay in 4 interest-free payments of $56.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-14396
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. NS-640MH-120 Product Warranty 15 Years Power Warranty 15 Years of 93 %, 30 Years of 87 % Total Degradation Rate ⏳ 0.43 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 640 Wp Voltage at Maximum Power (Vmpp) 37.66 V Current at Maximum Power (Impp) 17 A Open Circuit Voltage (Voc) 45.19 V Short Circuit Current (Isc) 17.7 A Panel Efficiency 22.61 % Maximum Power (Pmax) 484 Wp Voltage at Maximum Power (Vmpp) 35.49 V Current at Maximum Power (Impp) 13.64 A Open Circuit Voltage (Voc) 42.77 V Short Circuit Current (Isc) 14.42 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2172x1303x30 mm Weight 35.2 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Frame Type Aluminium Junction Box Diodes 3 Junction Box Protectio
Technology: Bifacial, TOPCon, HJT, N-type
Power Range: 620 ~ 660 Wp
Panel Efficiency: 21.9 ~ 23.32 %
Weight: 35.2 kg
Seller Name: PolyCrown Solar Tech
Country: China
| SKU | PES-SPS-SOL-14396 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Cell type | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
