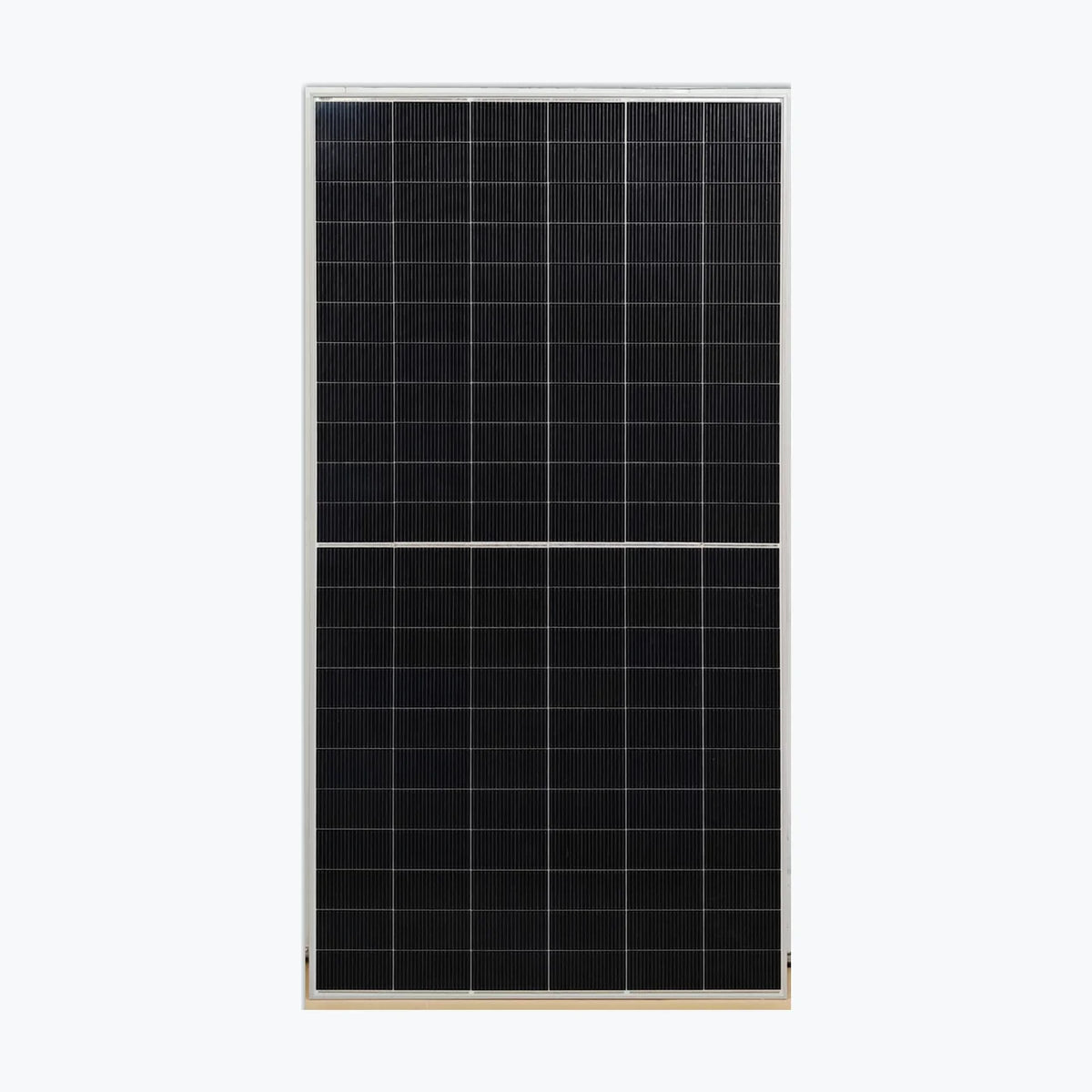

PolyCrown Solar Tech NS-660MH-132
PayPal Pay in 4 interest-free payments of $57.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-14402
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. NS-660MH-132 Product Warranty 15 Years Power Warranty 15 Years of 93 %, 30 Years of 87 % Total Degradation Rate ⏳ 0.43 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 660 Wp Voltage at Maximum Power (Vmpp) 38.3 V Current at Maximum Power (Impp) 17.24 A Open Circuit Voltage (Voc) 45.4 V Short Circuit Current (Isc) 18.63 A Panel Efficiency 21.24 % Maximum Power (Pmax) 499 Wp Voltage at Maximum Power (Vmpp) 36.09 V Current at Maximum Power (Impp) 13.83 A Open Circuit Voltage (Voc) 42.97 V Short Circuit Current (Isc) 15.18 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1303x30 mm Weight 38.7 kg Cell Number 132 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Frame Type Aluminium Junction Box Diodes 3 Junction Box Protect
Technology: Bifacial, PERC, TOPCon, N-type
Power Range: 650 ~ 670 Wp
Panel Efficiency: 20.92 ~ 21.56 %
Weight: 38.7 kg
Seller Name: PolyCrown Solar Tech
Country: China
| SKU | PES-SPS-SOL-14402 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Cell type | |
| Manufacturer | |
| Model number |
