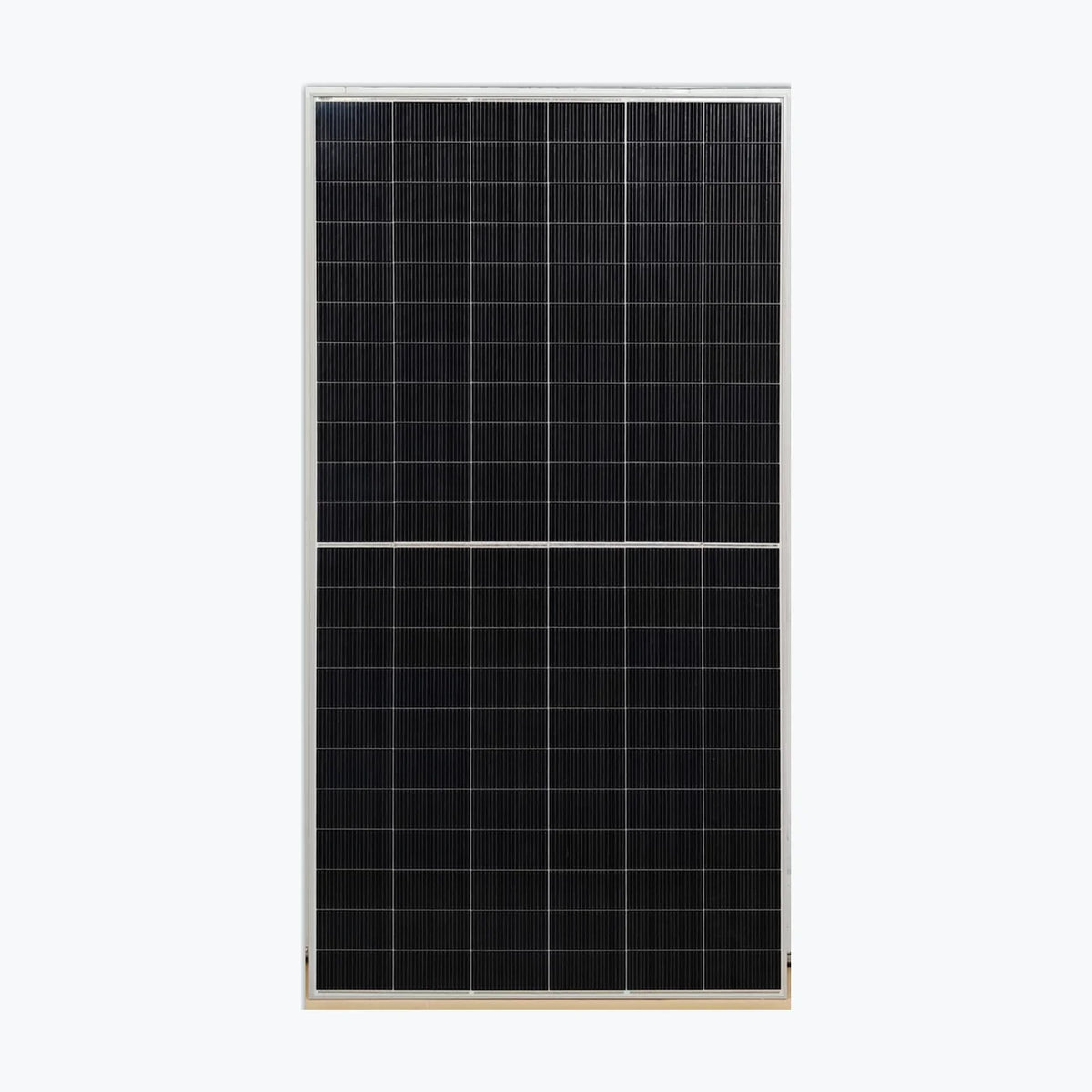

    PolyCrown Solar Tech NS-670MH-132

    PolyCrown Solar Tech NS-670MH-132

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-14404
    • Container price: $48.60 USD
    • Container qty: 720
    • Odoo id: 25,068
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. NS-670MH-132 Product Warranty 15 Years Power Warranty 15 Years of 93 %, 30 Years of 87 % Total Degradation Rate ⏳ 0.43 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 670 Wp Voltage at Maximum Power (Vmpp) 38.7 V Current at Maximum Power (Impp) 17.32 A Open Circuit Voltage (Voc) 45.8 V Short Circuit Current (Isc) 18.76 A Panel Efficiency 21.56 % Maximum Power (Pmax) 506 Wp Voltage at Maximum Power (Vmpp) 36.47 V Current at Maximum Power (Impp) 13.89 A Open Circuit Voltage (Voc) 43.35 V Short Circuit Current (Isc) 15.29 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1303x30 mm Weight 38.7 kg Cell Number 132 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Frame Type Aluminium Junction Box Diodes 3 Junction Box Protect

      Technology: Bifacial, PERC, TOPCon, N-type
      Power Range: 650 ~ 670 Wp
      Panel Efficiency: 20.92 ~ 21.56 %
      Weight: 38.7 kg
      Seller Name: PolyCrown Solar Tech
      Country: China
