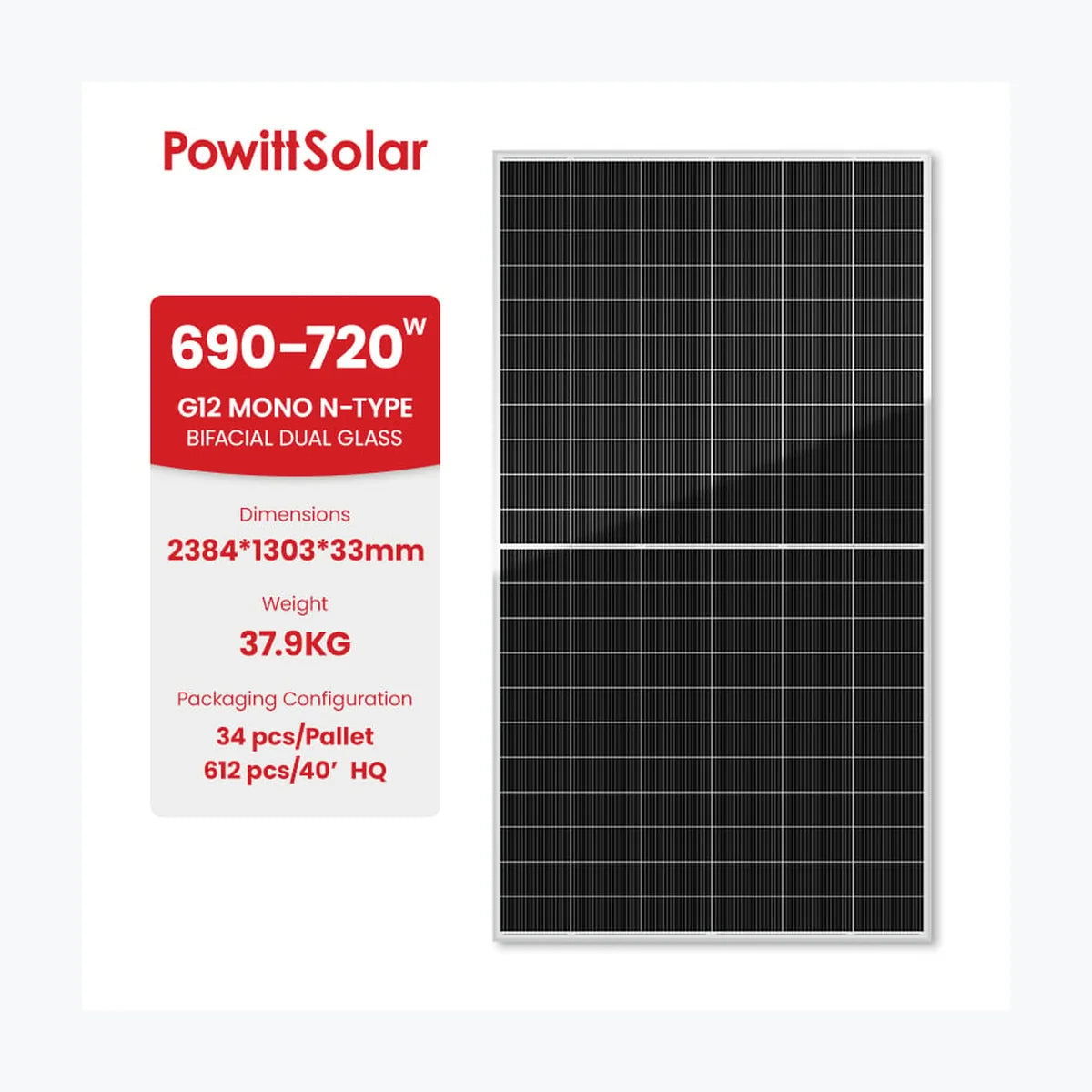

Powitt Solar PW-66M710HG12-BD
Powitt Solar PW-66M710HG12-BD
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-14578
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. PW-66M710HG12-BD Product Warranty 15 Years Power Warranty 25 Years of 89.4 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 710 Wp Voltage at Maximum Power (Vmpp) 40.9 V Current at Maximum Power (Impp) 17.38 A Open Circuit Voltage (Voc) 49 V Short Circuit Current (Isc) 18.42 A Panel Efficiency 22.86 % Maximum Power (Pmax) 533 Wp Voltage at Maximum Power (Vmpp) 38.3 V Current at Maximum Power (Impp) 13.95 A Open Circuit Voltage (Voc) 45.89 V Short Circuit Current (Isc) 14.78 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2384x1303x33 mm Weight 37.9 kg Cell Number 132 Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossectio
Technology: Bifacial, TOPCon, N-type
Power Range: 690 ~ 720 Wp
Panel Efficiency: 22.21 ~ 23.18 %
Weight: 37.9 kg
Seller Name: Powitt Solar Co., Ltd.
Country: China -
