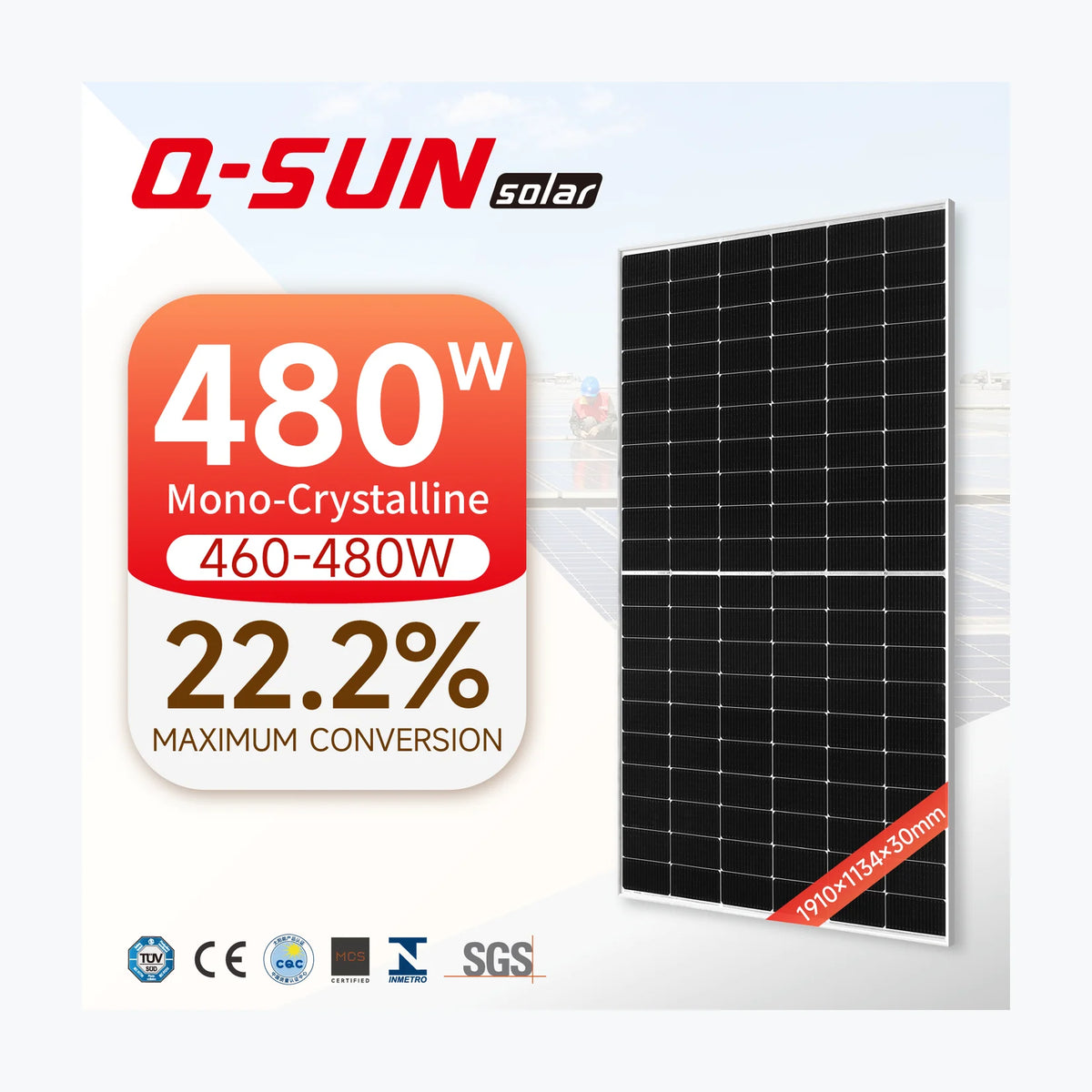

Q-SUN Solar 120-183.75 QNHT-6 465
PayPal Pay in 4 interest-free payments of $20.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-14741
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. 120-183.75 QNHT-6 465 Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance -0.4 ~ +0.4 % Maximum Power (Pmax) 465 Wp Voltage at Maximum Power (Vmpp) 35.63 V Current at Maximum Power (Impp) 13.05 A Open Circuit Voltage (Voc) 42.71 V Short Circuit Current (Isc) 13.78 A Panel Efficiency 21.5 % Maximum Power (Pmax) 352 Wp Voltage at Maximum Power (Vmpp) 33.67 V Current at Maximum Power (Impp) 10.44 A Open Circuit Voltage (Voc) 40.57 V Short Circuit Current (Isc) 11.02 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1910x1134x30 mm Weight 26.5 kg Cell Size 183.75×182 mm Cell Number 120 Glass Thickness 2.0 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Cable Length 300 mm
Technology: TOPCon, N-type
Power Range: 460 ~ 480 Wp
Panel Efficiency: 21.3 ~ 22.2 %
Weight: 26.5 kg
Seller Name: Q-SUN Anhui Co., Ltd
Country: China
| SKU | PES-SPS-SOL-14741 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
