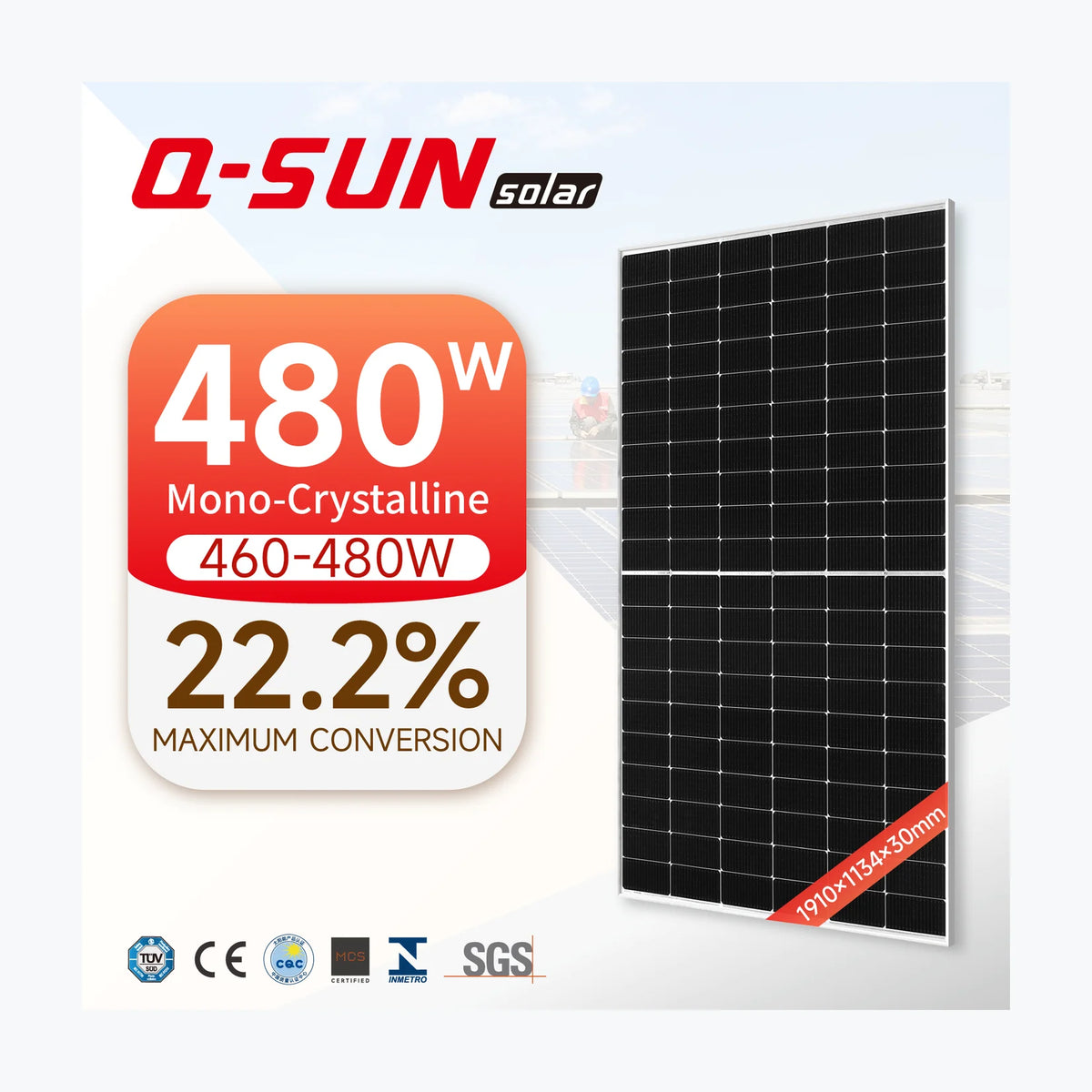

    Q-SUN Solar 120-183.75 QNHT-6 475

    Q-SUN Solar 120-183.75 QNHT-6 475

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-14743
    • Container price: $48.60 USD
    • Container qty: 720
    • Odoo id: 24,246
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 120-183.75 QNHT-6 475 Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance -0.4 ~ +0.4 % Maximum Power (Pmax) 475 Wp Voltage at Maximum Power (Vmpp) 36.12 V Current at Maximum Power (Impp) 13.15 A Open Circuit Voltage (Voc) 43.27 V Short Circuit Current (Isc) 13.9 A Panel Efficiency 22 % Maximum Power (Pmax) 359 Wp Voltage at Maximum Power (Vmpp) 34.13 V Current at Maximum Power (Impp) 10.52 A Open Circuit Voltage (Voc) 41.11 V Short Circuit Current (Isc) 11.12 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1910x1134x30 mm Weight 26.5 kg Cell Size 183.75×182 mm Cell Number 120 Glass Thickness 2.0 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Cable Length 300 mm Do

      Technology: TOPCon, N-type
      Power Range: 460 ~ 480 Wp
      Panel Efficiency: 21.3 ~ 22.2 %
      Weight: 26.5 kg
      Seller Name: Q-SUN Anhui Co., Ltd
      Country: China
