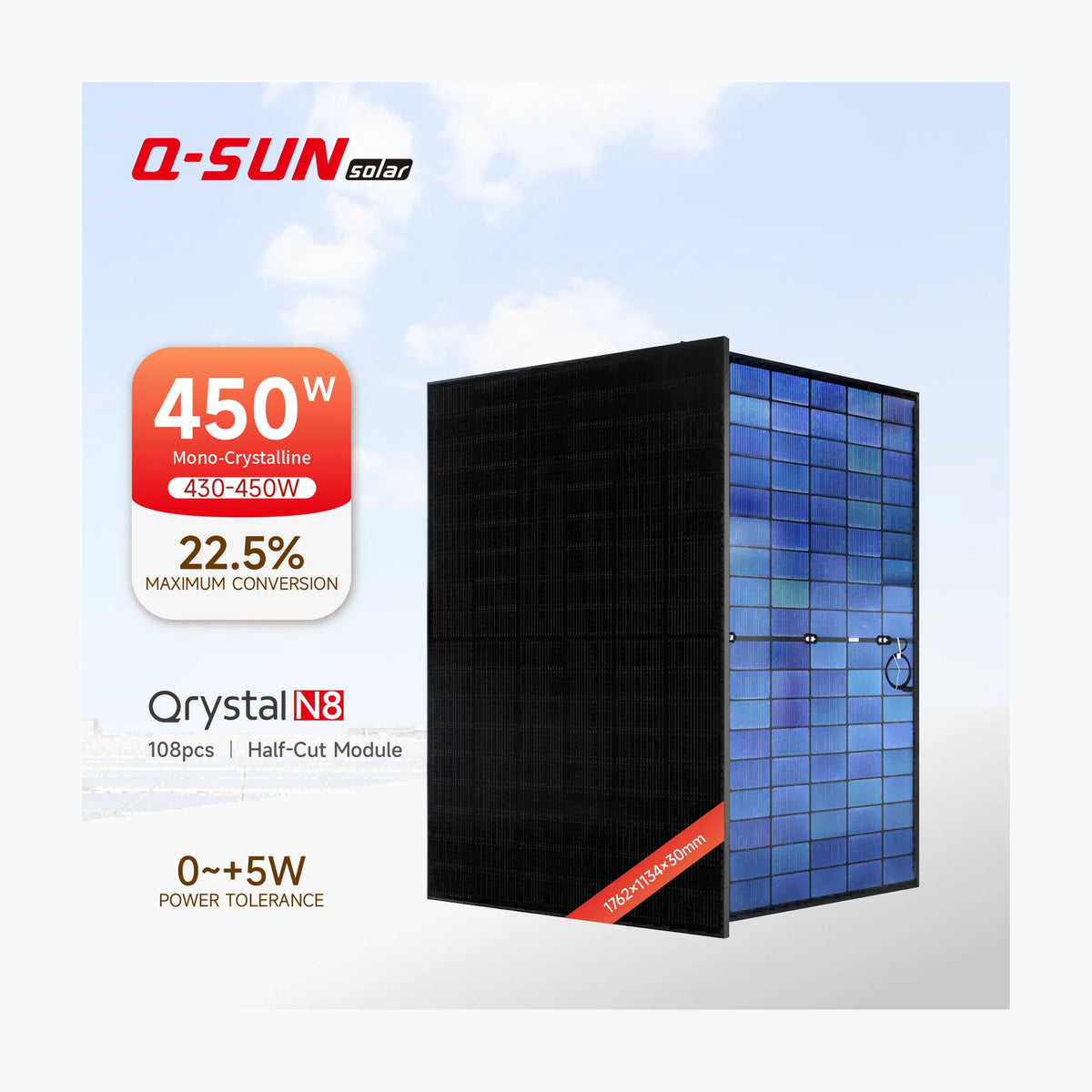

Q-SUN Solar QN-450HT-5
Q-SUN Solar QN-450HT-5
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-14762
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. QN-450HT-5 Product Warranty 25 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 450 Wp Voltage at Maximum Power (Vmpp) 33.23 V Current at Maximum Power (Impp) 13.54 A Open Circuit Voltage (Voc) 39.98 V Short Circuit Current (Isc) 14.25 A Panel Efficiency 22.5 % Maximum Power (Pmax) 340 Wp Voltage at Maximum Power (Vmpp) 31.4 V Current at Maximum Power (Impp) 10.83 A Open Circuit Voltage (Voc) 37.98 V Short Circuit Current (Isc) 11.4 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.24 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1762x1134x30 mm Weight 25 kg Cell Number 108 Glass Type Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Protection Class IP 68 Download Manufacturer's PDF Datasheet
Technology: Bifacial, N-type
Power Range: 430 ~ 450 Wp
Panel Efficiency: 21.5 ~ 22.5 %
Weight: 25 kg
Seller: Q-SUN Anhui Co., Ltd
Country: China -
