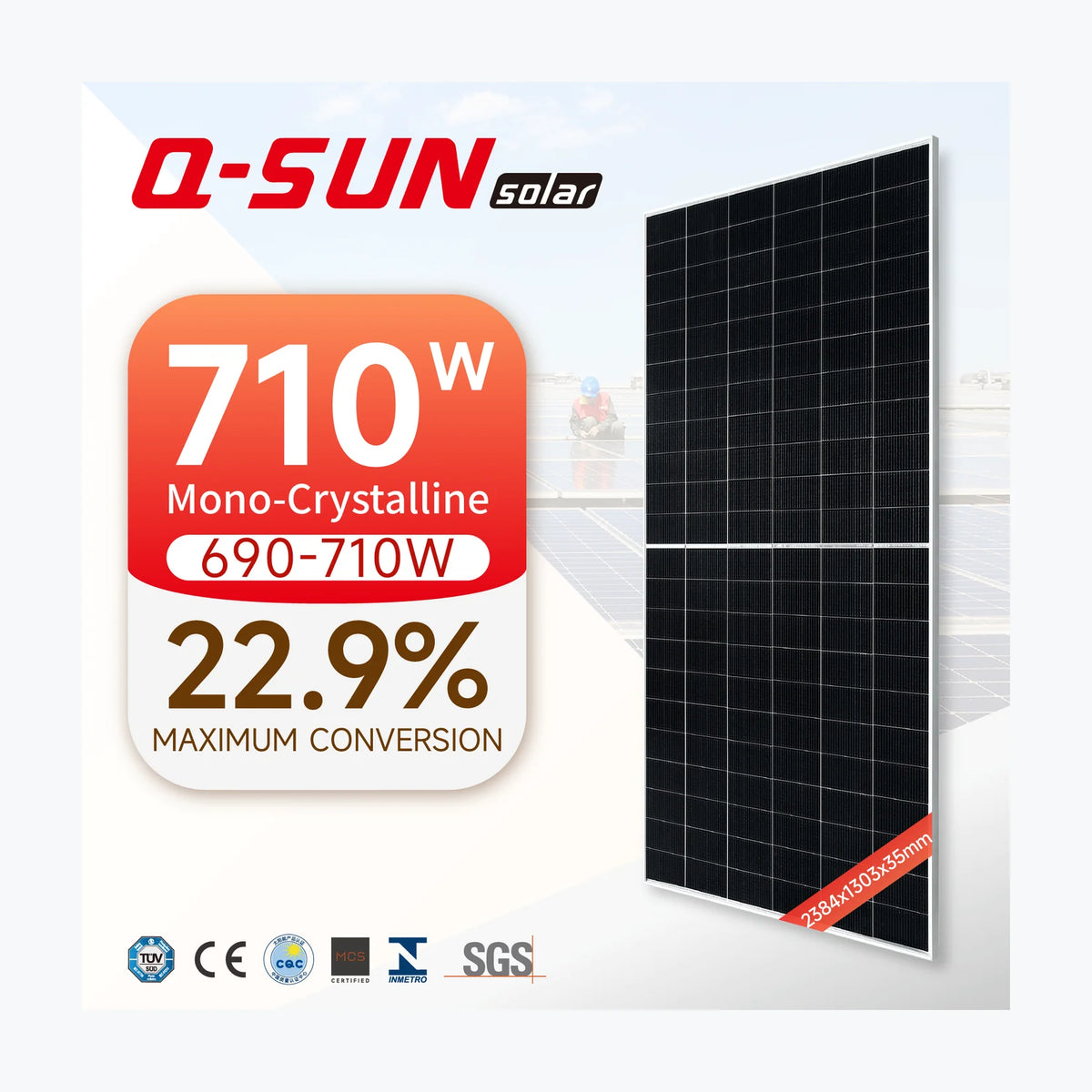

Q-SUN Solar QNHT-1 690
Q-SUN Solar QNHT-1 690
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-14794
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. QNHT-1 690 Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 690 Wp Voltage at Maximum Power (Vmpp) 40.09 V Current at Maximum Power (Impp) 17.21 A Open Circuit Voltage (Voc) 47.74 V Short Circuit Current (Isc) 18.29 A Panel Efficiency 22.2 % Maximum Power (Pmax) 522 Wp Voltage at Maximum Power (Vmpp) 37.89 V Current at Maximum Power (Impp) 13.77 A Open Circuit Voltage (Voc) 45.35 V Short Circuit Current (Isc) 14.63 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2384x1303x35 mm Weight 38 kg Cell Number 132 Glass Thickness 2 mm Junction Box Protection Class IP 68 Download Manufacturer's PDF Datasheet
Technology: Bifacial, TOPCon, N-type
Power Range: 690 ~ 710 Wp
Panel Efficiency: 22.2 ~ 22.9 %
Weight: 38 kg
Seller: Q-SUN Anhui Co., Ltd
Country: China -
