Out of Stock

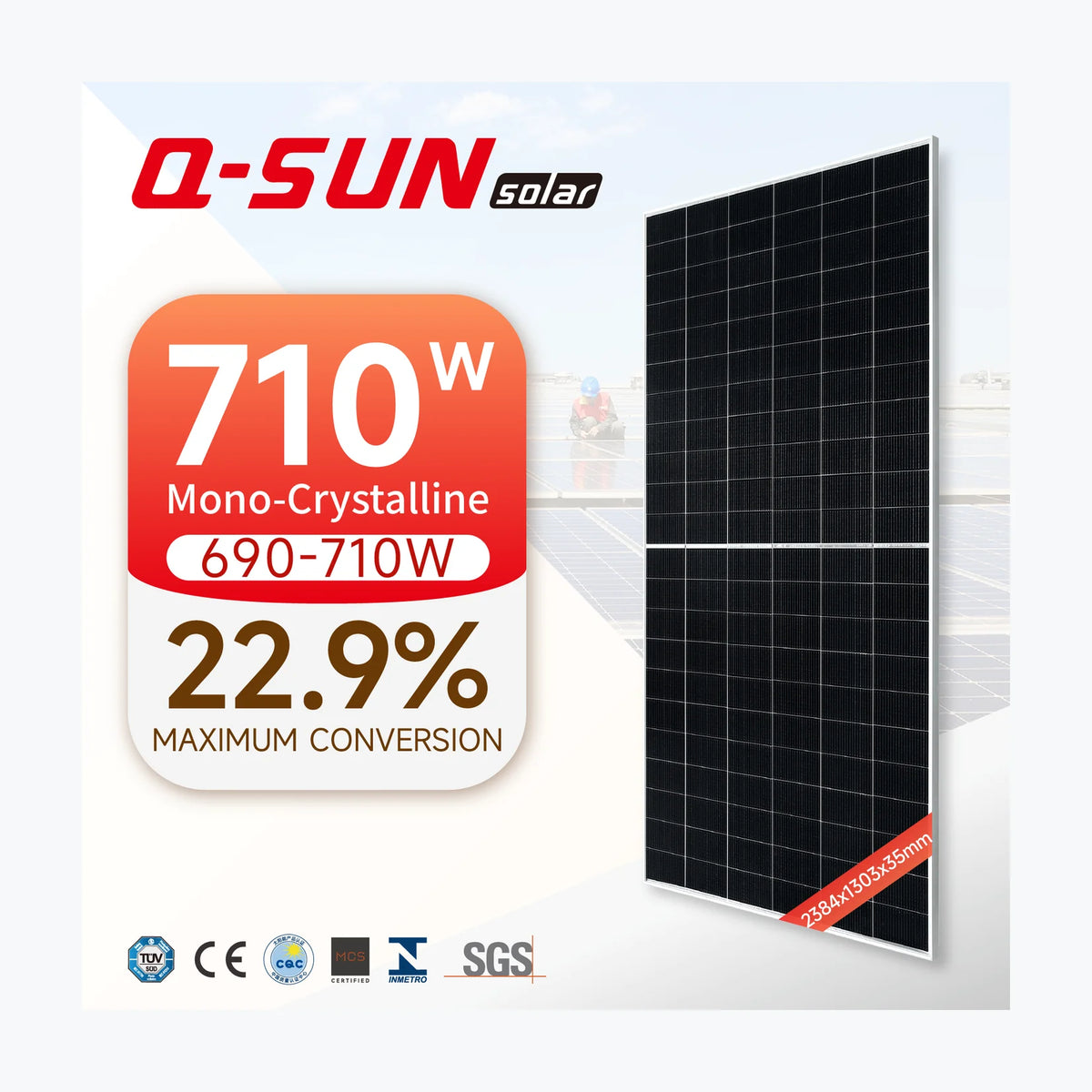

Q-SUN Solar QNHT-1 705
Q-SUN Solar QNHT-1 705
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-14797
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. QNHT-1 705 Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 705 Wp Voltage at Maximum Power (Vmpp) 40.61 V Current at Maximum Power (Impp) 17.36 A Open Circuit Voltage (Voc) 48.32 V Short Circuit Current (Isc) 18.47 A Panel Efficiency 22.7 % Maximum Power (Pmax) 533 Wp Voltage at Maximum Power (Vmpp) 38.38 V Current at Maximum Power (Impp) 13.89 A Open Circuit Voltage (Voc) 45.91 V Short Circuit Current (Isc) 14.77 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2384x1303x35 mm Weight 38 kg Cell Number 132 Glass Thickness 2 mm Junction Box Protection Class IP 68 Download Manufacturer's PDF Datasheet
Technology: Bifacial, TOPCon, N-type
Power Range: 690 ~ 710 Wp
Panel Efficiency: 22.2 ~ 22.9 %
Weight: 38 kg
Seller: Q-SUN Anhui Co., Ltd
Country: China -
