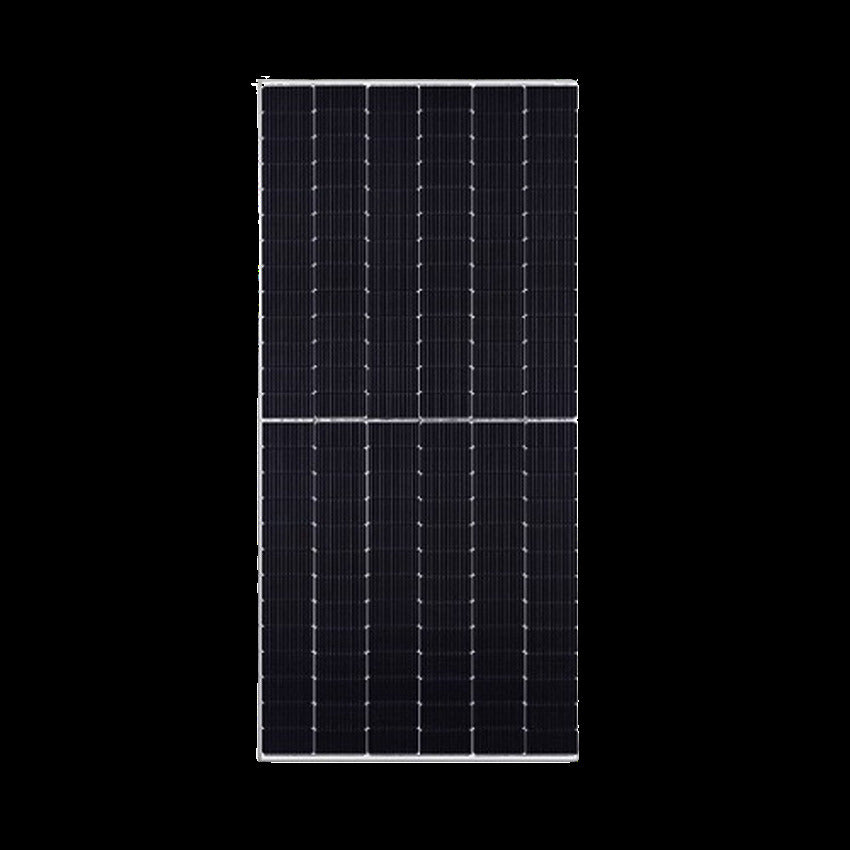

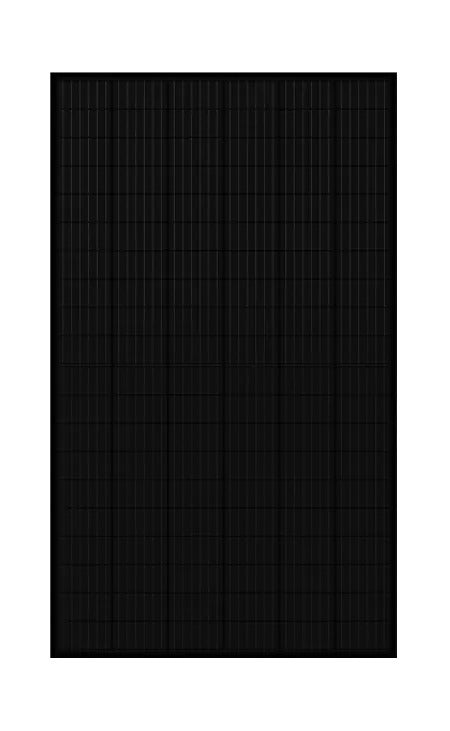

Qcells Q.PEAK DUO 480 480Watt 156 1/2 Cells Bifacial Double Glass Monocrystalline 35mm Silver Frame Solar Panel - XL-G10/BFG
Qcells Q.PEAK DUO 480 480Watt 156 1/2 Cells Bifacial Double Glass Monocrystalline 35mm Silver Frame Solar Panel - XL-G10/BFG
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SPL-0099
- Brands: Qcells
- Documents:
- Height: 3.5
- Length: 221.5
- Panel wattage: 480
-
Technology:
- Bifacial
- Half-Cell
Product Description
-
Qcells Q.PEAK DUO 480W Bifacial Monocrystalline Solar Panel
Presenting the Qcells XL-G10/BFG, a cutting-edge solar panel designed to surpass the 21% efficiency threshold. Engineered with advanced Q.ANTUM DUO Z Technology, this panel offers remarkable power generation, making it an exceptional choice for ground-mounted installations. Discover how this solar panel can contribute to reduced electricity costs while ensuring long-term sustainability.
Product Features
Breakthrough Efficiency
The Qcells XL-G10/BFG leverages Q.ANTUM DUO Z Technology with zero-gap cell layout, maximizing module efficiency to an impressive 21.6%, ensuring optimal power output.
Cost-Effective Energy Production
This panel provides higher yields per surface area, reducing balance of system (BOS) costs, and offers an additional 80 watts of module power compared to conventional 144 half-cell modules.
Durability in Extreme Conditions
Protected by a high-tech, durable aluminum alloy frame, this panel is certified to withstand severe snow loads of up to 5400 Pa and wind pressures of up to 3000 Pa, guaranteeing reliability under harsh weather.
Secure Long-term Investment
With a comprehensive 12-year product warranty and 25-year linear performance guarantee, the Qcells XL-G10/BFG ensures sustained performance and peace of mind.
Leading Technology Integration
Innovative Q.ANTUM DUO technology merges advanced cell separation with state-of-the-art wiring, enhancing overall efficiency and performance of the solar scale.
How It Works
Discover the sophisticated working mechanism of the Qcells XL-G10/BFG, where each component is crafted to enhance productivity and reliability in solar energy conversion.
Q.ANTUM DUO Technology
This innovative feature divides solar cells, reducing losses while significantly boosting energy conversion efficiency.
Monocrystalline Half Cells
The panel's 156 bifacial half cells work synergistically to capture more sunlight, enhancing power generation even in low-light conditions.
Robust Junction Box and Cabling
Equipped with IP67-rated junction boxes and extended cables for various installations, ensuring consistent performance and easy connection.
Specifications
Format 87.2 in × 41.1 in × 1.38 in Weight 58.4 lbs (26.5 kg) Front Cover Thermally pre-stressed glass with anti-reflection Frame Anodized aluminum Efficiency Up to 21.6% Maximum Power 475W - 495W Short Circuit Current 11.24A - 11.34A Open Circuit Voltage 53.58V - 53.71V Operating Temperature -40°F to +185°F Maximum System Voltage 1500V (IEC/UL) -
