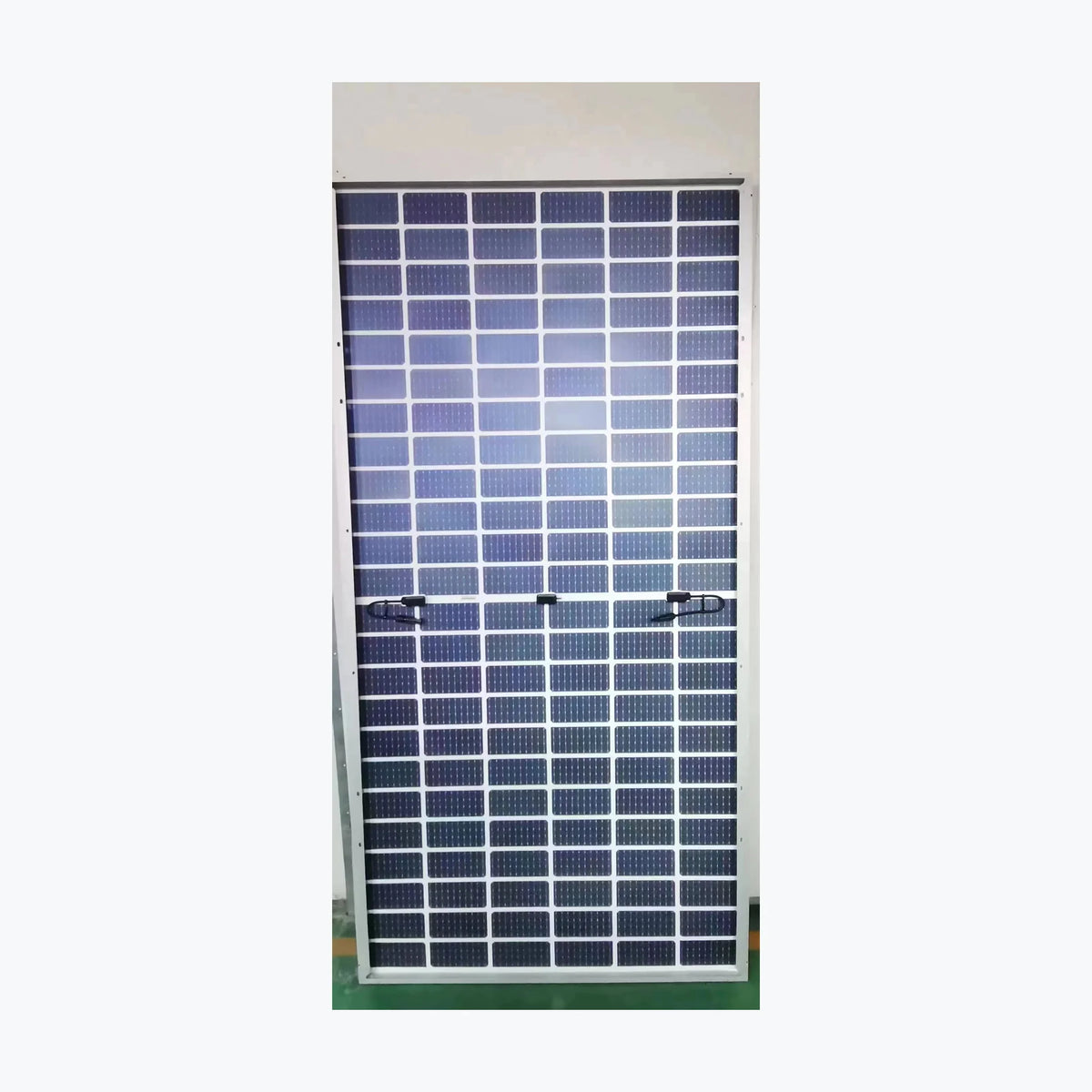

Rarlon PV Tech RL-535HT-B
EOL — While Supplies LastPayPal Pay in 4 interest-free payments of $46.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-15109
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. RL-535HT-B Product Warranty 25 Years Power Warranty 15 Years of 90 %, 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Power Tolerance -3 ~ 0 % Maximum Power (Pmax) 535 Wp Voltage at Maximum Power (Vmpp) 40.94 V Current at Maximum Power (Impp) 13.07 A Open Circuit Voltage (Voc) 49.54 V Short Circuit Current (Isc) 13.83 A Panel Efficiency 20.71 % Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2278x1134x35 mm Weight 32 kg Cell Number 144 Glass Type Tempered Glass Thickness 2 mm Encapsulant Type POE Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 400 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, PERC
Power Range: 535 ~ 555 Wp
Panel Efficiency: 20.71 ~ 21.48 %
Weight: 32 kg
Seller Name: Ningbo Rarlon Photovoltaic Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-15109 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Lifecycle status | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
