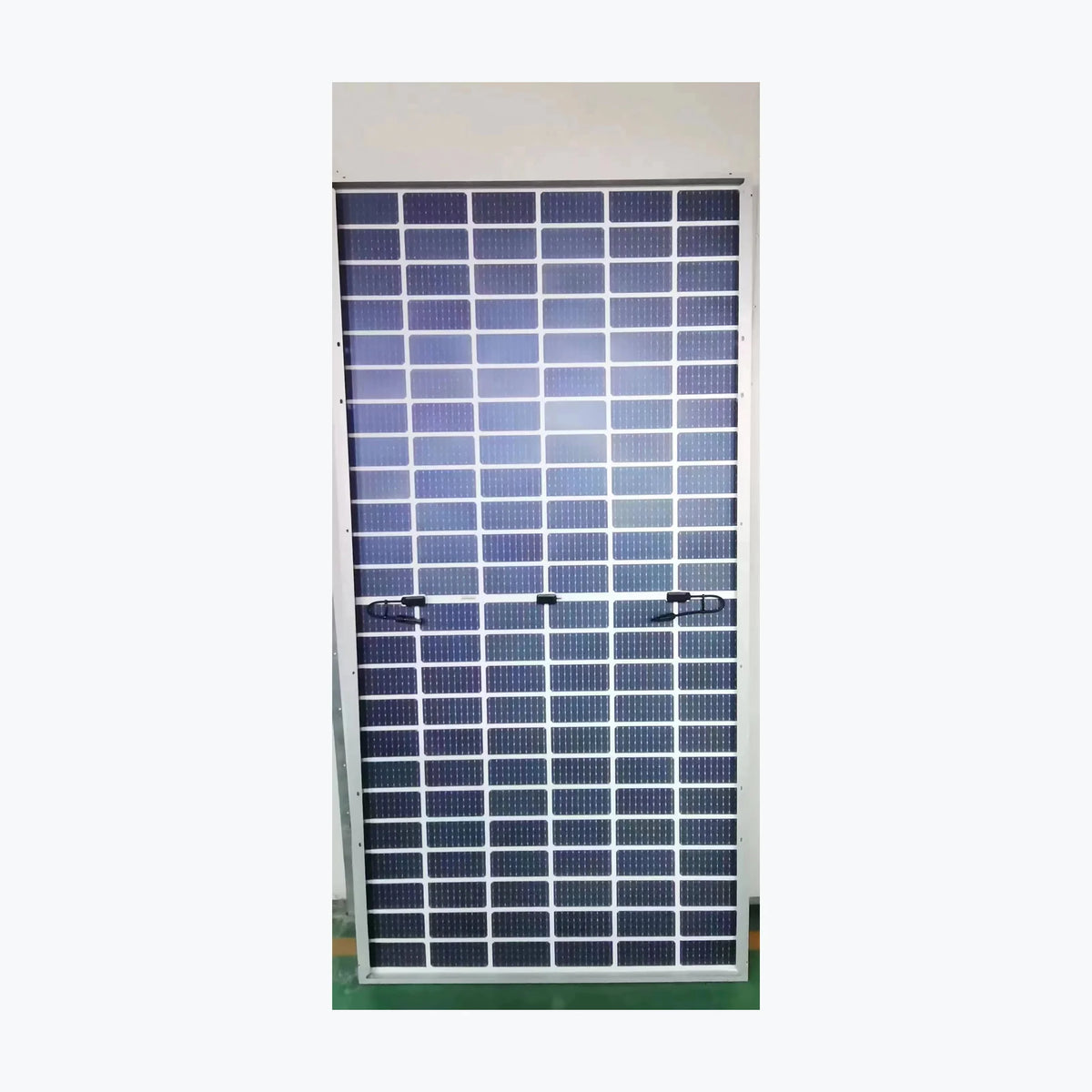

    Rarlon PV Tech RL-540HT-B

    Rarlon PV Tech RL-540HT-B

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-15110
    • Container price: $97.20 USD
    • Container qty: 720
    • Odoo id: 24,496
    • Pallet price: $4.59 USD
    • Pallet qty: 30
    • Unit price: $0.18 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. RL-540HT-B Product Warranty 25 Years Power Warranty 15 Years of 90 %, 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Power Tolerance -3 ~ 0 % Maximum Power (Pmax) 540 Wp Voltage at Maximum Power (Vmpp) 41.13 V Current at Maximum Power (Impp) 13.13 A Open Circuit Voltage (Voc) 49.73 V Short Circuit Current (Isc) 13.89 A Panel Efficiency 20.9 % Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2278x1134x35 mm Weight 32 kg Cell Number 144 Glass Type Tempered Glass Thickness 2 mm Encapsulant Type POE Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 400 mm Download Manufacturer's PDF Datasheet

      Technology: Bifacial, PERC
      Power Range: 535 ~ 555 Wp
      Panel Efficiency: 20.71 ~ 21.48 %
      Weight: 32 kg
      Seller Name: Ningbo Rarlon Photovoltaic Technology Co., Ltd.
      Country: China
