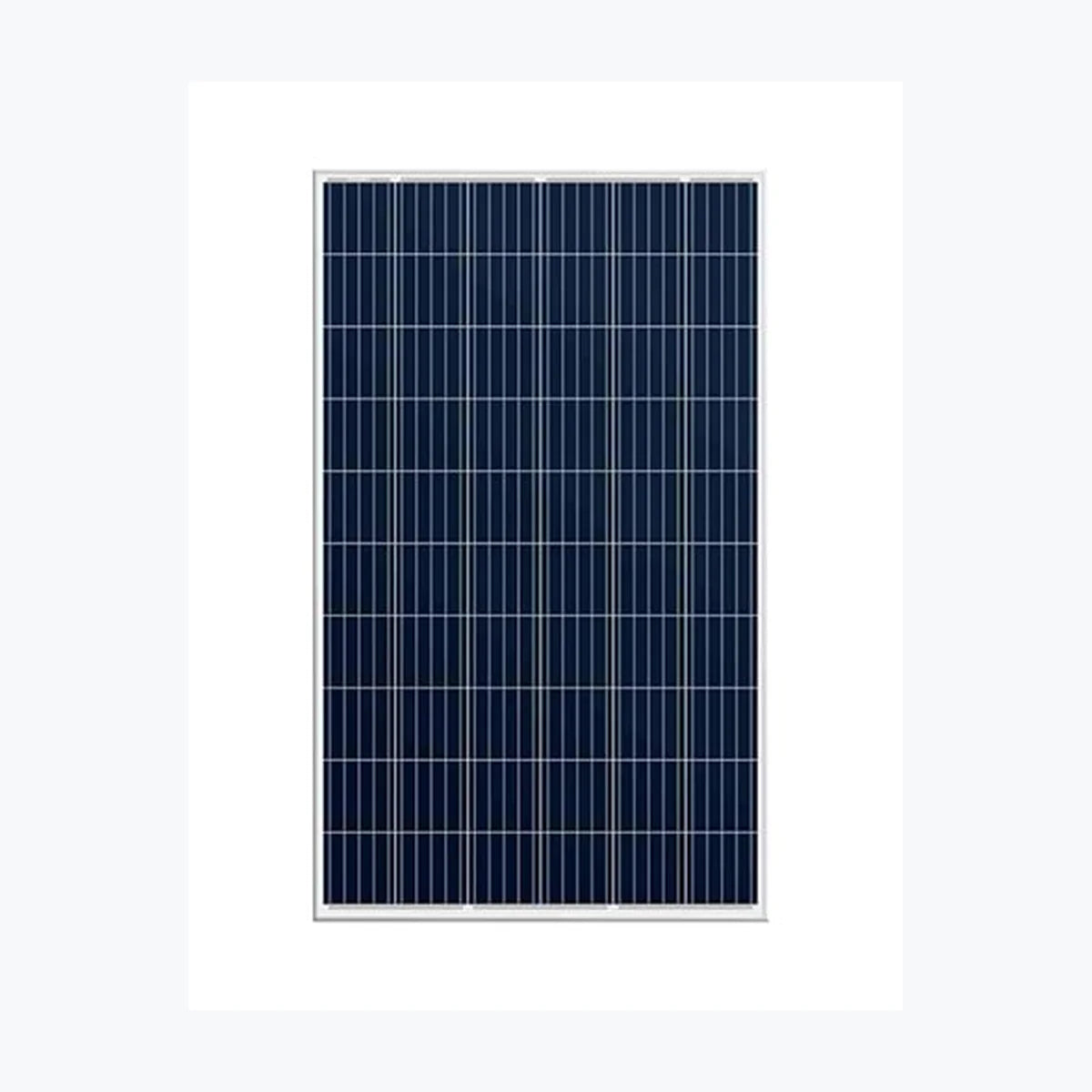

Rarlon PV Tech RL280HP
EOL — While Supplies LastPayPal Pay in 4 interest-free payments of $25.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-15158
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Polycrystalline Model No. RL280HP Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 280 Wp Voltage at Maximum Power (Vmpp) 31.55 V Current at Maximum Power (Impp) 8.875 A Open Circuit Voltage (Voc) 38.75 V Short Circuit Current (Isc) 9.336 A Panel Efficiency 17.21 % Operating Temperature Range -40 - 85 °C Maximum System Voltage 1000 V Series Fuse Rating 15 A Panel Dimension (H/W/D) 1640x992x35 mm Cell Size 156.75×156.75 mm Cell Number 60 Download Manufacturer's PDF Datasheet
Power Range: 250 ~ 285 Wp
Panel Efficiency: 15.37 ~ 17.52 %
Seller Name: Ningbo Rarlon Photovoltaic Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-15158 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Lifecycle status | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
