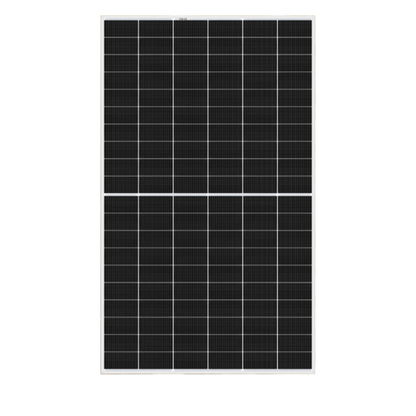

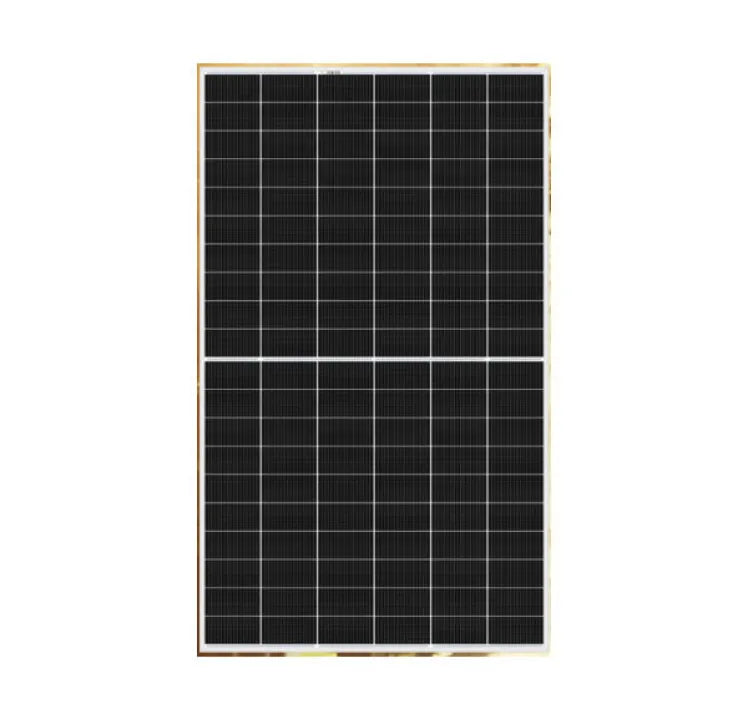

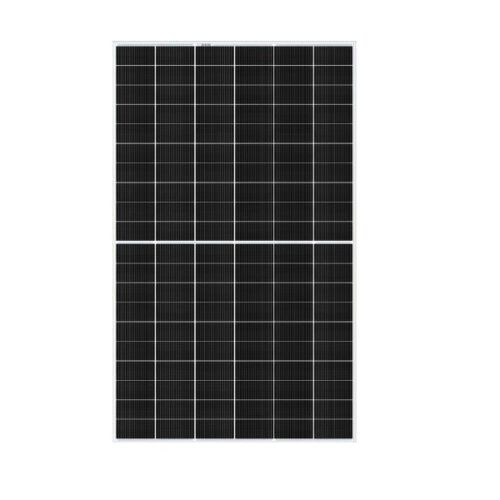

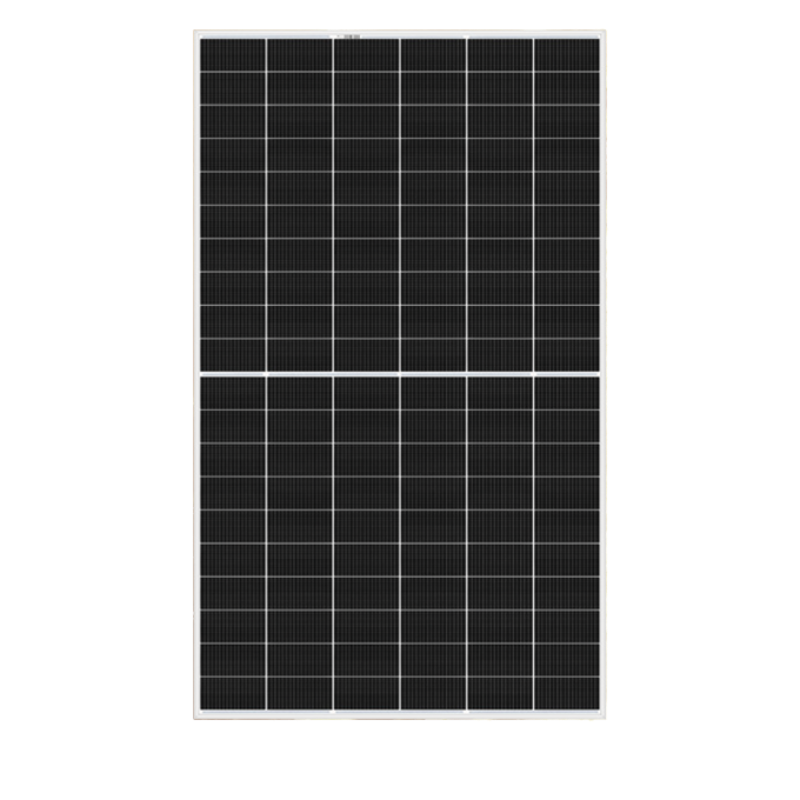

REC Solar REC630AA Pro MG 630W Bifacial HJT Monocrystalline Solar Panel
Model REC630AA Pro MG | Bifacial HJT | 120 Half-Cut Cells | Bifacial | 1500V System Voltage
630 WpMax Power Output22.2%Module Efficiency120Half-Cut Bifacial CellsProduct Overview
The REC Solar REC630AA Pro MG is a premium 630W solar panel built for commercial and utility-scale performance. It uses monocrystalline bifacial HJT technology to deliver strong energy harvest and dependable long-term output. With 22.2% efficiency, this module is designed to maximize power density in demanding rooftop and ground-mount projects. The 120 half-cut cell layout supports stable performance under varied conditions. A durable anodized aluminum frame and anti-reflection coated glass help maintain output over many years. The panel is made in Singapore and engineered for large systems that value high efficiency, strong mechanical strength, and low degradation.
Key Benefits
High Output Performance: The module delivers 630W of rated power for larger installations.
Excellent Efficiency: Its 22.2% efficiency helps increase energy production in limited space.
Bifacial Energy Gain: Rear-side generation can improve total yield in reflective environments.
Strong Durability: The panel is rated for 5400 Pa front load and 2400 Pa rear load.
Low Long-Term Degradation: A 0.31% annual degradation rate helps protect lifetime production.
Commercial Compatibility: A 1500V system rating supports modern commercial solar designs.
How It Works
This solar panel converts sunlight into usable electricity through advanced heterojunction cell technology. Light is captured by the monocrystalline cells, then converted into direct current for inverter use. The bifacial design can collect reflected light from the rear side, which may increase total system output. Half-cut cell construction reduces internal resistance and helps improve performance under partial shading. Anti-reflection glass allows more sunlight to enter the module, while the aluminum frame and sealed junction box support safe, reliable operation over time.
Bifacial Light Capture: The front and rear glass structure allows the module to use direct and reflected light. This can improve yield in installations with light-colored surfaces.
HJT Cell Conversion: Heterojunction cells combine crystalline and thin-film benefits for high efficiency. This structure helps maintain strong performance in warmer conditions.
Half-Cut Electrical Design: The 120 half-cut layout lowers resistance and helps manage power losses. It also supports stable operation when some cells are shaded.
Technical Specifications
Brand REC Solar Model Number REC630AA Pro MG Cell Technology Monocrystalline Bifacial HJT Cell Count 120 Half-Cut Cells Maximum Power (Pmax) 630 Wp Panel Efficiency 22.2% Power Tolerance -3% to +3% Voltage at Maximum Power (Vmpp) 36.8 V Current at Maximum Power (Impp) 17.12 A Open Circuit Voltage (Voc) 44.7 V Short Circuit Current (Isc) 17.78 A Operating Temperature Range -40°C to 85°C Nominal Module Operating Temperature 44±2°C Temperature Coefficient of Pmax -0.24%/°C Temperature Coefficient of Voc -0.23%/°C Temperature Coefficient of Isc 0.04%/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Dimensions 2172 x 1305 x 30 mm Weight 36.8 kg Glass Type Anti-Reflection Coating Glass Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box 3 Diodes, IP68 Protection Class Seller Name REC Solar Pte. Ltd. Country of Origin Singapore Certifications & Compliance
Certifications: IEC 62790, IEC 62852, IP68-rated junction box and connectors
Inverter Compatibility: Suitable for 1500V commercial and utility-scale PV systems
Environmental: Lead-free construction, RoHS-compliant design, -40°C to 85°C operating range, 5400 Pa front load, 2400 Pa rear load
Warranty: 30-year product warranty, 30-year power warranty, and 90.75% power retention at year 30Documentation
