1 0

    In Stock

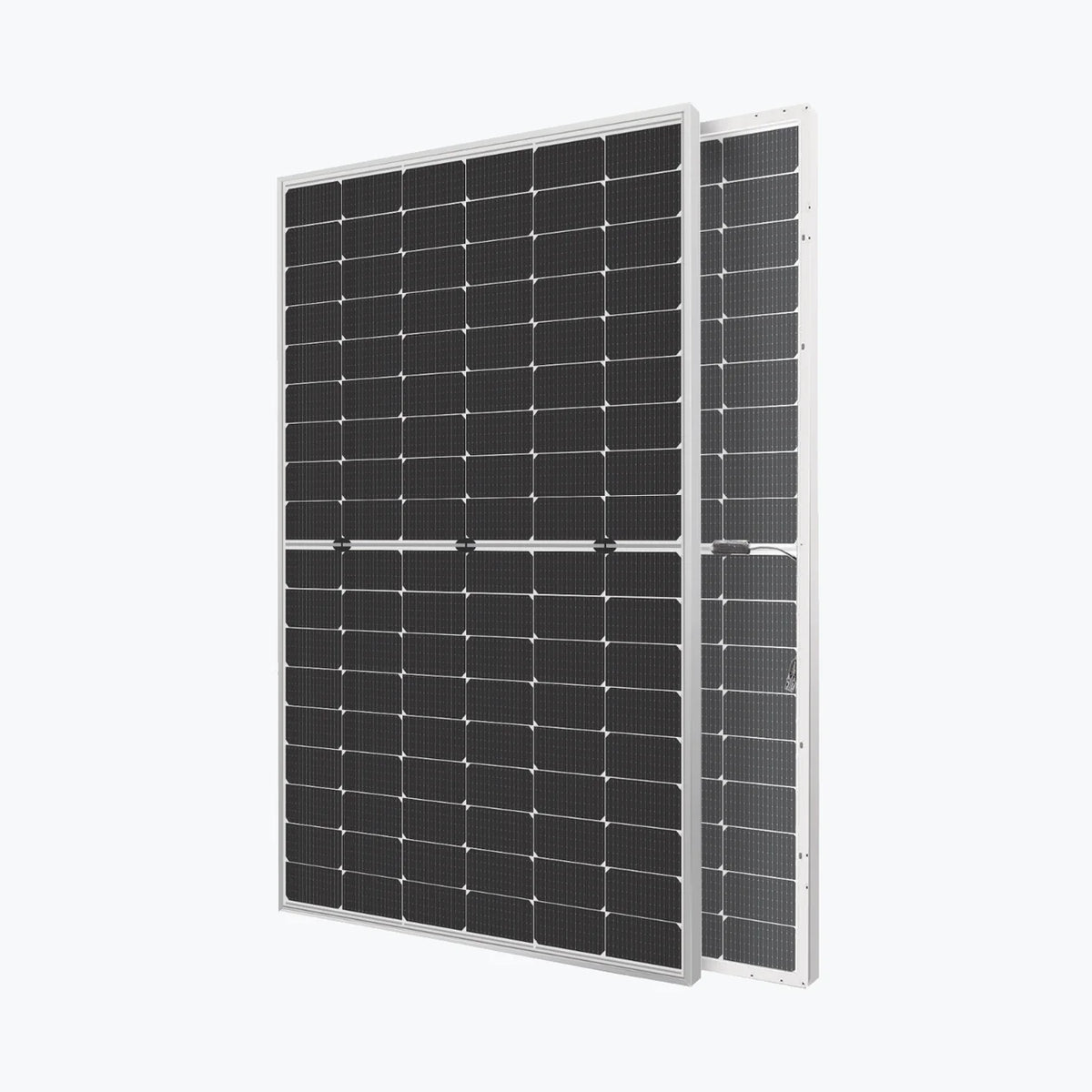

    RECOM 565

    RECOM 565

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-14955
    • Container price: $48.60 USD
    • Container qty: 720
    • Odoo id: 24,755
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 565 Product Warranty 30 Years Power Warranty 15 Years of 92.70 %, 30 Years of 85.95 % Total Degradation Rate ⏳ 0.47 % Power Tolerance 0 ~ +0.86 % Maximum Power (Pmax) 565 Wp Voltage at Maximum Power (Vmpp) 42.2 V Current at Maximum Power (Impp) 13.39 A Open Circuit Voltage (Voc) 50.9 V Short Circuit Current (Isc) 14.17 A Panel Efficiency 21.87 % Maximum Power (Pmax) 426.4 Wp Voltage at Maximum Power (Vmpp) 39.7 V Current at Maximum Power (Impp) 10.74 A Open Circuit Voltage (Voc) 48 V Short Circuit Current (Isc) 11.44 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 31.5 kg Cell Size 182×91 mm Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Dio

      Technology: TOPCon, N-type
      Power Range: 565 ~ 595 Wp
      Panel Efficiency: 21.87 ~ 23.03 %
      Weight: 31.5 kg
      Seller Name: Recom Technologies Ltd
      Country: Italy
