Reliance Controls 51410C — 10-Circuit 50A Transfer Switch | Pro/Tran

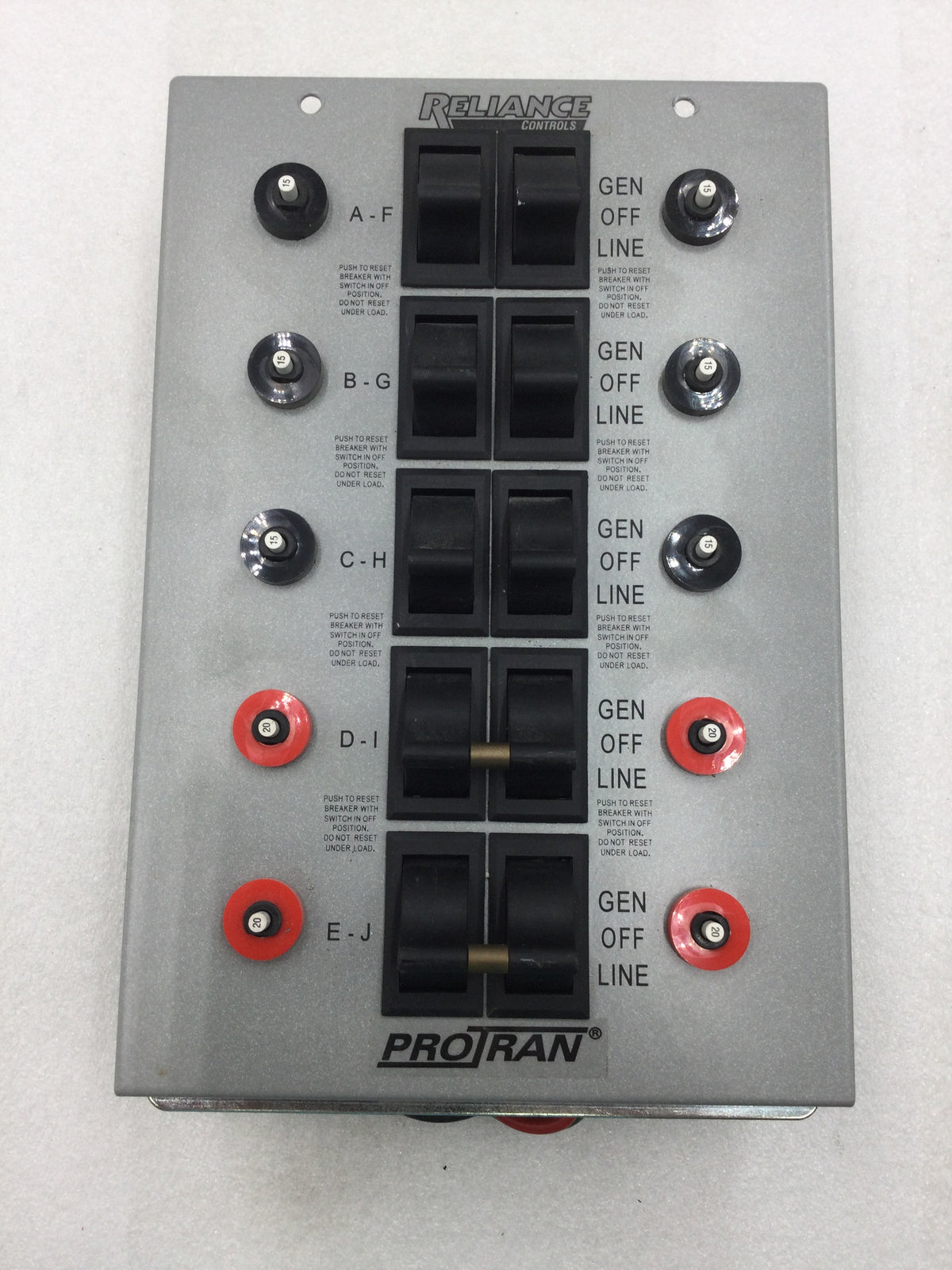

The Reliance Controls 51410C is a 10-circuit, 50-amp manual transfer switch from the Pro/Tran series, rated for 12,500 watts at 120/240V. Designed for indoor installation, this heavy-duty switch allows you to safely connect a large portable generator to power up to 10 essential household circuits. With pre-wired breakers, individual circuit toggles, and a built-in wattage meter, it provides complete control over your backup power system.
Key Benefits
- 10 Pre-Wired Circuits — Power up to 10 essential circuits for comprehensive home backup
- 50A / 12,500W Rating — Handles large portable generators up to 12,500 watts
- Built-in Wattage Meter — Monitor generator load in real time to prevent overload
- Individual Circuit Switches — Toggle each circuit between utility and generator independently
- Pre-Installed Breakers — Factory-wired breakers for faster, simpler installation
- Indoor NEMA 1 Enclosure — Designed for indoor installation near your main panel
- Expandable Design — Add a second unit for additional circuits if needed
Specifications
| Specification | Detail |
|---|---|
| Circuits | 10 |
| Amperage | 50A |
| Max Generator Input | 12,500W |
| Voltage | 120/240V AC |
| Enclosure | NEMA 1 (Indoor) |
| Breakers | Pre-installed single-pole (15A & 20A) |
| Inlet | 50A 120/240V (CS6365 compatible) |
| Wattage Meter | Yes — built-in |
| Dimensions | 20 × 14 × 5 in (approx.) |
| Warranty | 5 years |
What's in the Box
- Reliance Controls 51410C Transfer Switch
- Pre-installed circuit breakers
- Installation instructions
