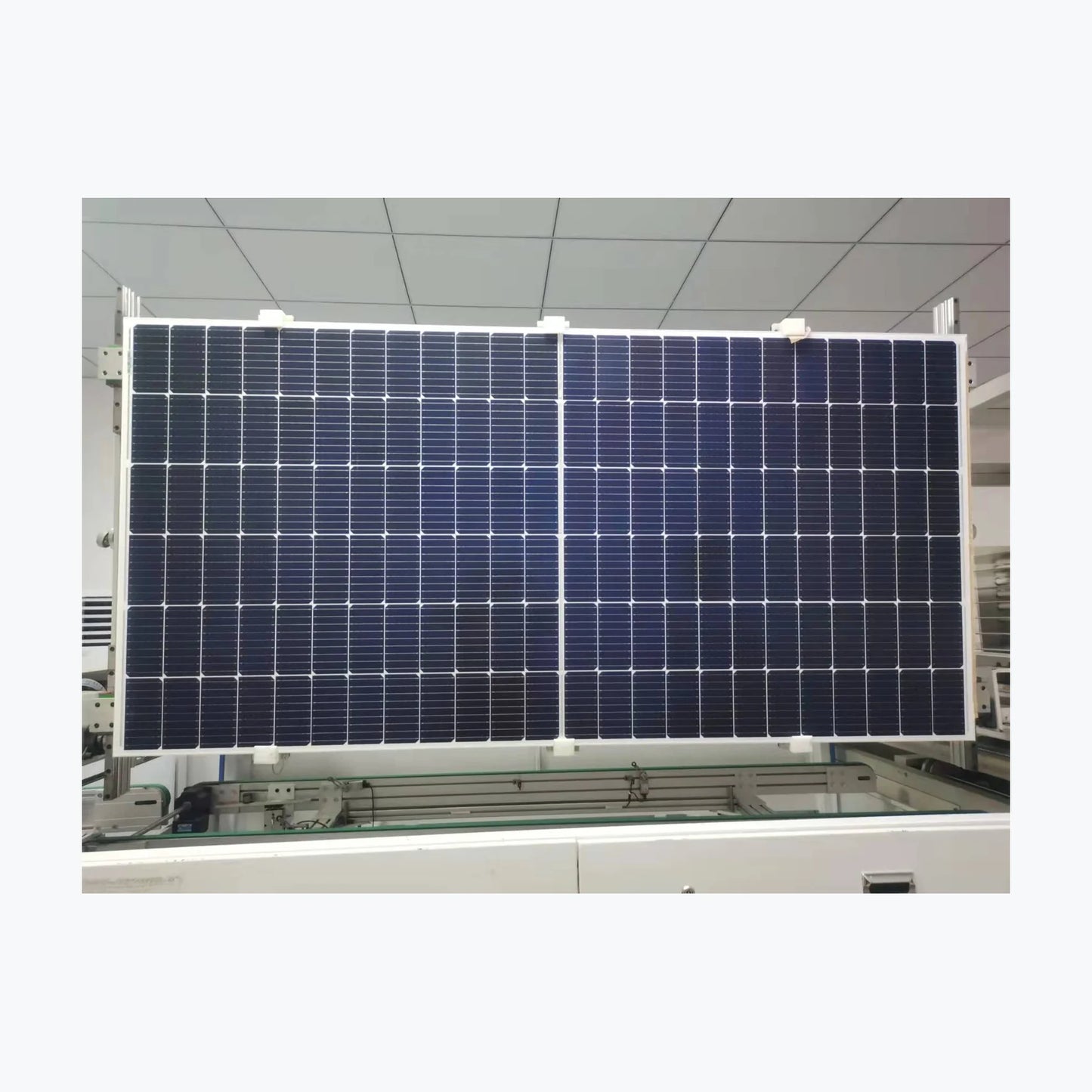

    Ruihuang New Energy and Science RHM166M144H-430W

    Ruihuang New Energy and Science RHM166M144H-430W

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-16113
    • Container price: $54.00 USD
    • Container qty: 720
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. RHM166M144H-430W Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 430 Wp Voltage at Maximum Power (Vmpp) 41.27 V Current at Maximum Power (Impp) 10.42 A Open Circuit Voltage (Voc) 49.65 V Short Circuit Current (Isc) 11.08 A Panel Efficiency 19.46 % Maximum Power (Pmax) 323 Wp Voltage at Maximum Power (Vmpp) 38.45 V Current at Maximum Power (Impp) 8.4 A Open Circuit Voltage (Voc) 47.19 V Short Circuit Current (Isc) 8.93 A Temperature 45±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2094x1038x35 mm Weight 23.5 kg Cell Size 166×83 mm Cell Number 144 Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Cable Length 350 mm Download Manufacturer's PDF Datasheet

      Power Range: 430 ~ 450 Wp
      Panel Efficiency: 19.46 ~ 20.37 %
      Weight: 23.5 kg
      Seller Name: Jiangxi Ruihuang New Energy and Science Co., Ltd.
      Country: China
