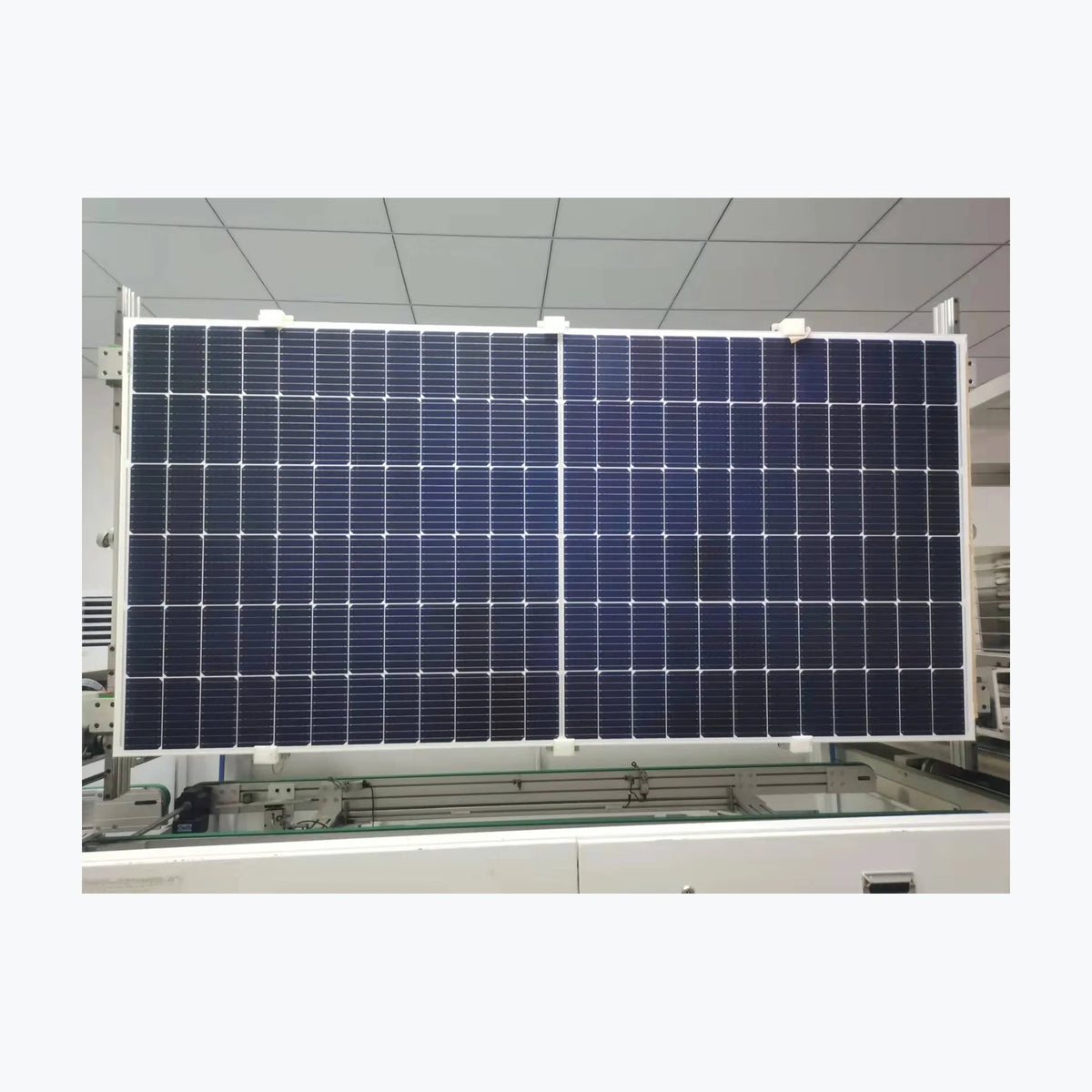

Ruihuang New Energy and Science RHM166M144H-435W
PayPal Pay in 4 interest-free payments of $38.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-16114
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. RHM166M144H-435W Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 435 Wp Voltage at Maximum Power (Vmpp) 41.47 V Current at Maximum Power (Impp) 10.49 A Open Circuit Voltage (Voc) 49.85 V Short Circuit Current (Isc) 11.15 A Panel Efficiency 19.69 % Maximum Power (Pmax) 327 Wp Voltage at Maximum Power (Vmpp) 38.64 V Current at Maximum Power (Impp) 8.46 A Open Circuit Voltage (Voc) 47.38 V Short Circuit Current (Isc) 8.99 A Temperature 45±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2094x1038x35 mm Weight 23.5 kg Cell Size 166×83 mm Cell Number 144 Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 67 Cable Crossection 4 mm2 Cable Length 350 mm Download Manufacturer's PDF Datasheet
Power Range: 430 ~ 450 Wp
Panel Efficiency: 19.46 ~ 20.37 %
Weight: 23.5 kg
Seller Name: Jiangxi Ruihuang New Energy and Science Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-16114 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number | |
| Wattage |
No documents available for this product. Contact us to request documentation.
