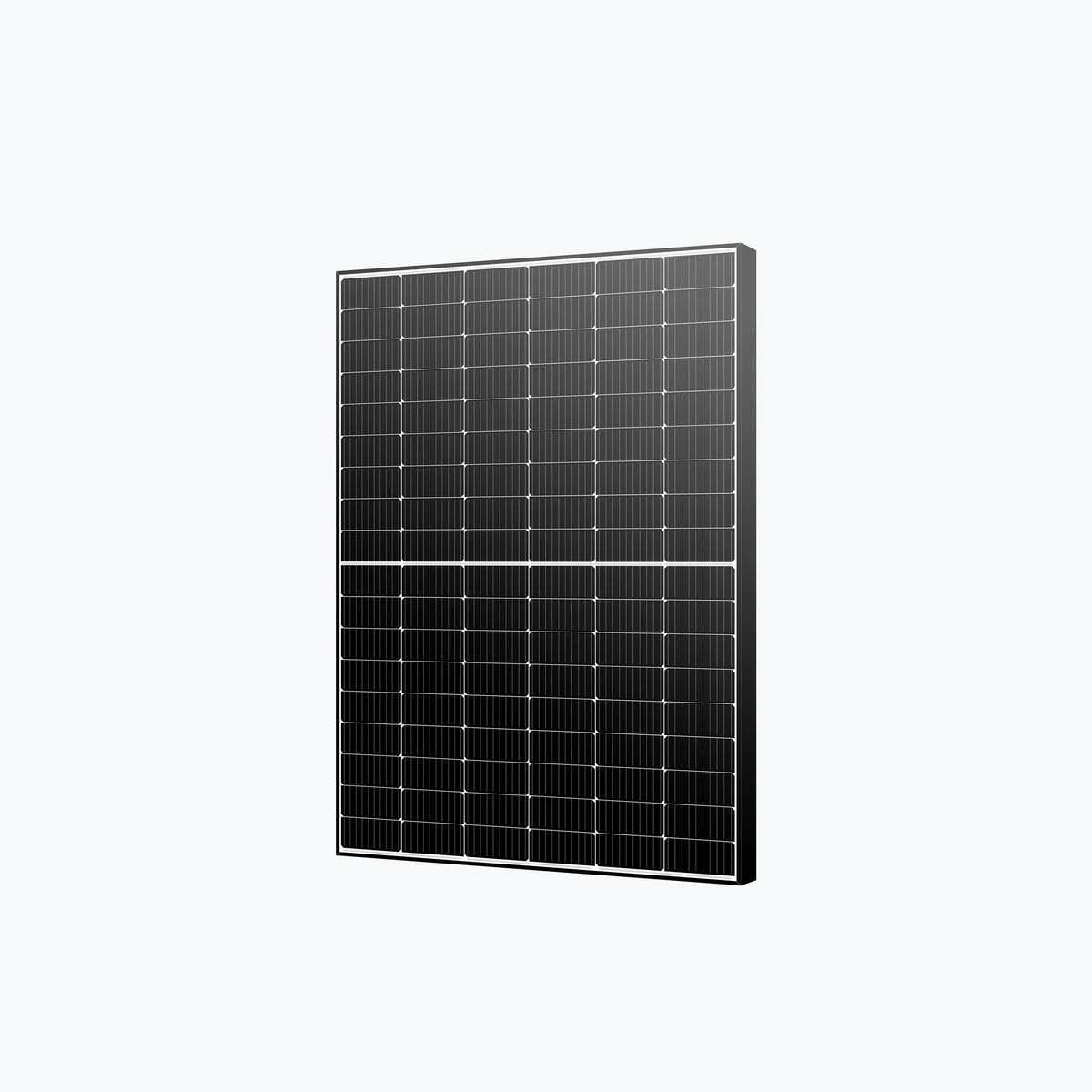

Runda Solar RS510S8R-108GANT
Runda Solar RS510S8R-108GANT
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-16137
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. RS510S8R-108GANT Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 510 Wp Voltage at Maximum Power (Vmpp) 33.98 V Current at Maximum Power (Impp) 15.01 A Open Circuit Voltage (Voc) 40.65 V Short Circuit Current (Isc) 15.71 A Panel Efficiency 22.95 % Maximum Power (Pmax) 386 Wp Voltage at Maximum Power (Vmpp) 32 V Current at Maximum Power (Impp) 12.06 A Open Circuit Voltage (Voc) 38.43 V Short Circuit Current (Isc) 12.65 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.310 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1960x1134x30 mm Weight 30 kg Cell Size 182×105 mm Cell Number 108 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, TOPCon
Power Range: 490 ~ 515 Wp
Panel Efficiency: 22.05 ~ 23.17 %
Weight: 30 kg
Seller: Jiangsu Runda PV Co.,Ltd
Country: China -
