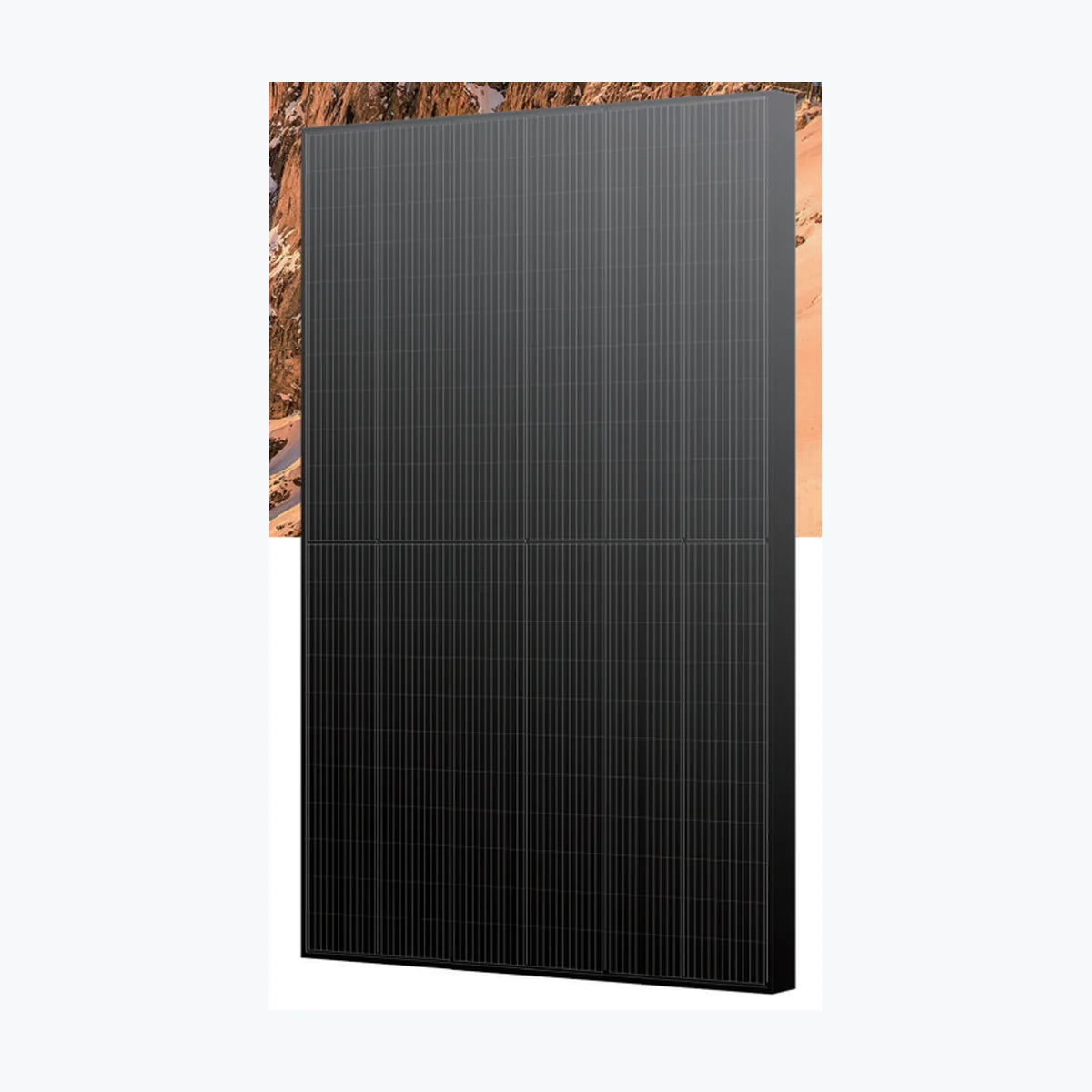

Runda Solar RS660S9B-132
Runda Solar RS660S9B-132
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-16153
- Container price:
- Container qty:
- Odoo id:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. RS660S9B-132 Product Warranty 12 Years Power Warranty 10 Years of 90 %, 25 Years of 85 % Total Degradation Rate ⏳ 0.6 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 660 Wp Voltage at Maximum Power (Vmpp) 38.08 V Current at Maximum Power (Impp) 17.33 A Open Circuit Voltage (Voc) 46.03 V Short Circuit Current (Isc) 18.73 A Panel Efficiency 21.2 % Maximum Power (Pmax) 507.03 Wp Voltage at Maximum Power (Vmpp) 34.71 V Current at Maximum Power (Impp) 14.61 A Open Circuit Voltage (Voc) 42.5 V Short Circuit Current (Isc) 15.92 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.354 %/°C Temperature Coefficient of Voc -0.266 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1303x35 mm Weight 33 kg Glass Thickness 3.2 mm Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC3 Cable Crossection 4 mm2 Cable Length 300 mm
Power Range: 645 ~ 665 Wp
Panel Efficiency: 20.8 ~ 21.4 %
Weight: 33 kg
Seller Name: Jiangsu Runda PV Co.,Ltd
Country: China -
