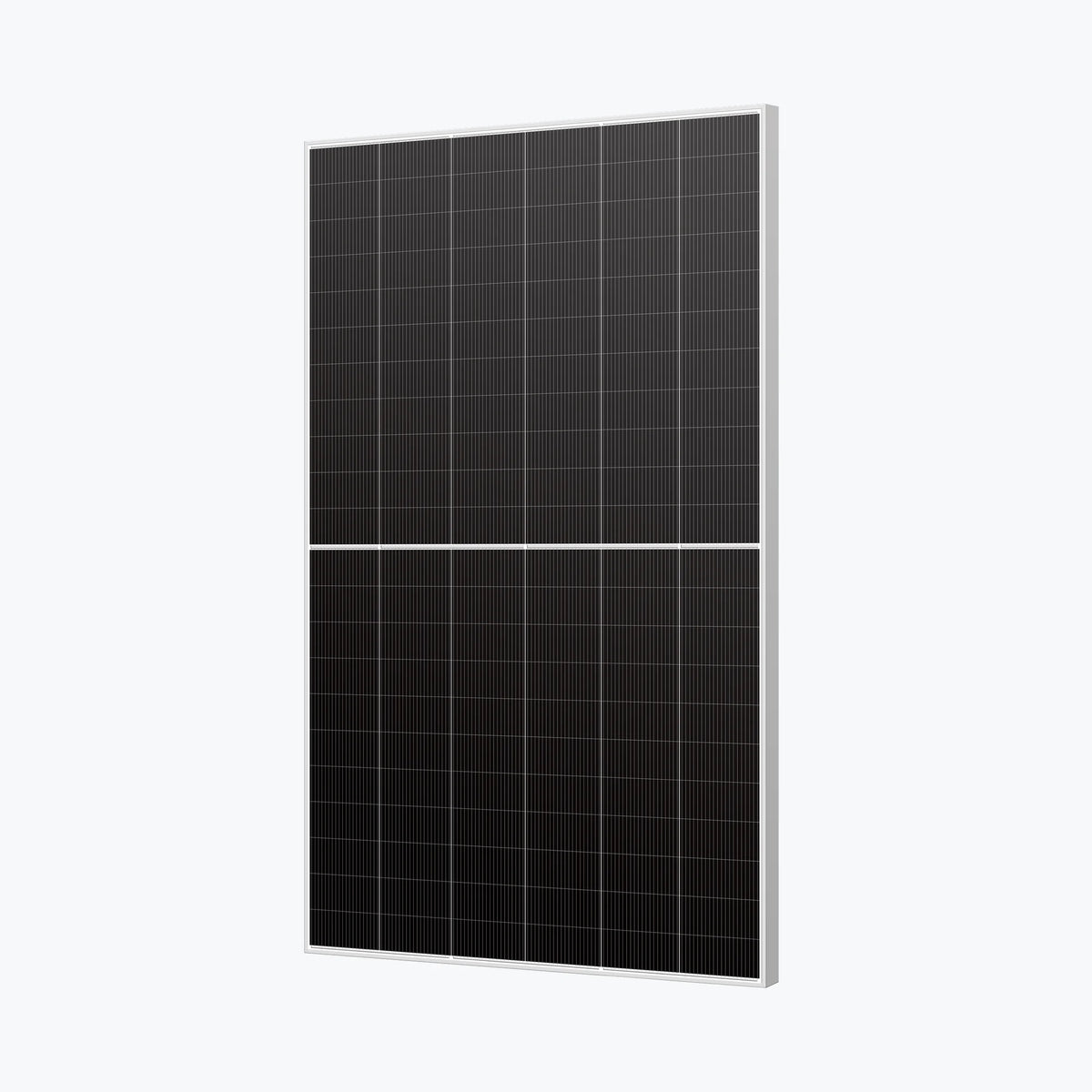

Runda Solar RS705S9-132GANT
Runda Solar RS705S9-132GANT
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-16155
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. RS705S9-132GANT Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 705 Wp Voltage at Maximum Power (Vmpp) 39.52 V Current at Maximum Power (Impp) 17.84 A Open Circuit Voltage (Voc) 47.45 V Short Circuit Current (Isc) 18.94 A Panel Efficiency 22.7 % Maximum Power (Pmax) 533 Wp Voltage at Maximum Power (Vmpp) 37.14 V Current at Maximum Power (Impp) 14.35 A Open Circuit Voltage (Voc) 45.32 V Short Circuit Current (Isc) 15.25 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.310 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1303x35 mm Weight 38 kg Cell Size 210×105 mm Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, TOPCon
Power Range: 705 ~ 730 Wp
Panel Efficiency: 22.7 ~ 23.5 %
Weight: 38 kg
Seller: Jiangsu Runda PV Co.,Ltd
Country: China -
