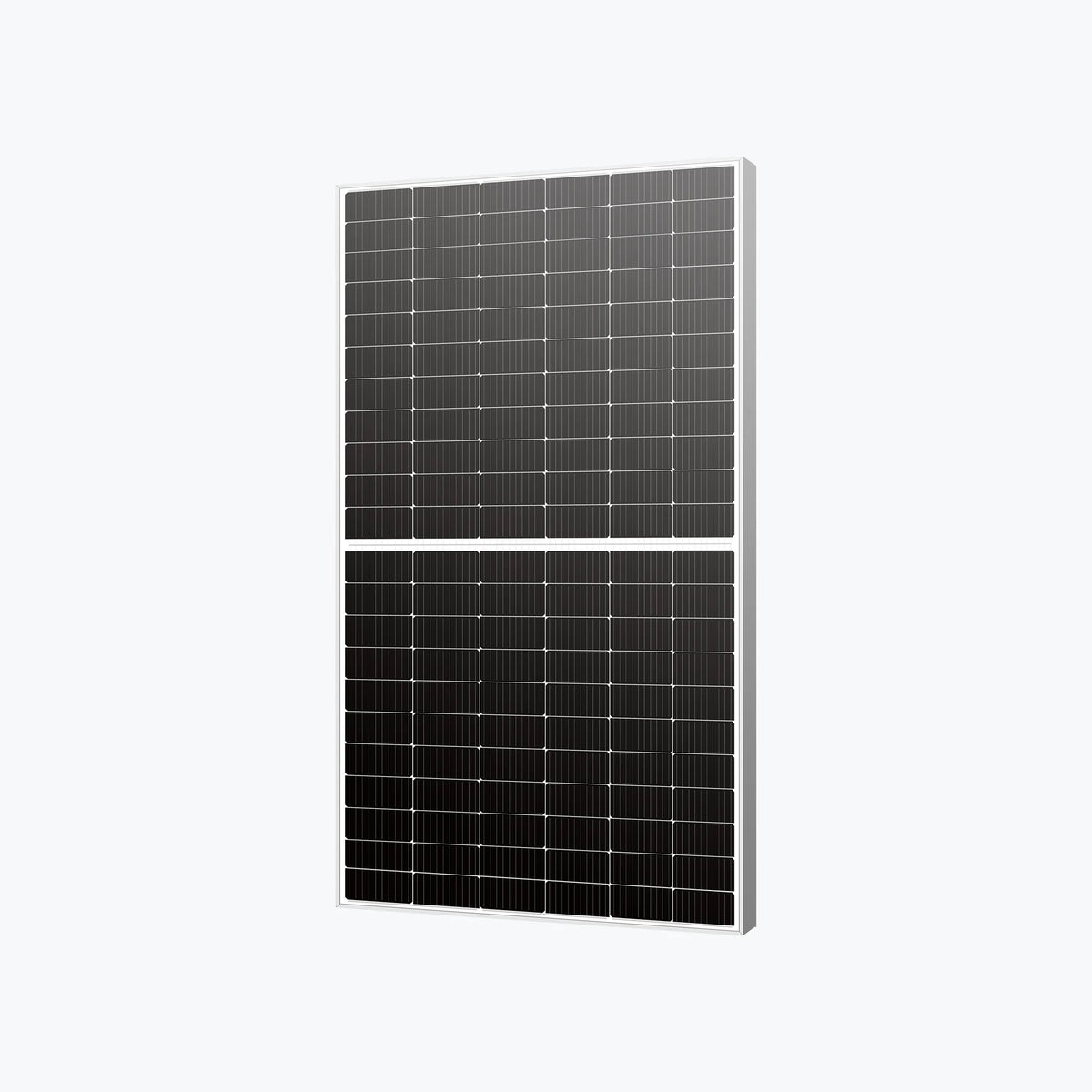

Runda Solar S8R-132GANT 625
Runda Solar S8R-132GANT 625
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-16180
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. S8R-132GANT 625 Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 625 Wp Voltage at Maximum Power (Vmpp) 40.28 V Current at Maximum Power (Impp) 15.52 A Open Circuit Voltage (Voc) 48.7 V Short Circuit Current (Isc) 16.2 A Panel Efficiency 23.14 % Maximum Power (Pmax) 478 Wp Voltage at Maximum Power (Vmpp) 39.2 V Current at Maximum Power (Impp) 12.2 A Open Circuit Voltage (Voc) 47.2 V Short Circuit Current (Isc) 12.82 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.310 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2392x1134x30 mm Weight 34.5 kg Cell Size 182×105 mm Cell Number 132 Glass Type Tempered Glass Thickness 2 mm Encapsulant Type EVA Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, TOPCon, N-type
Power Range: 605 ~ 630 Wp
Panel Efficiency: 22.4 ~ 23.32 %
Weight: 34.5 kg
Seller: Jiangsu Runda PV Co.,Ltd
Country: China -
