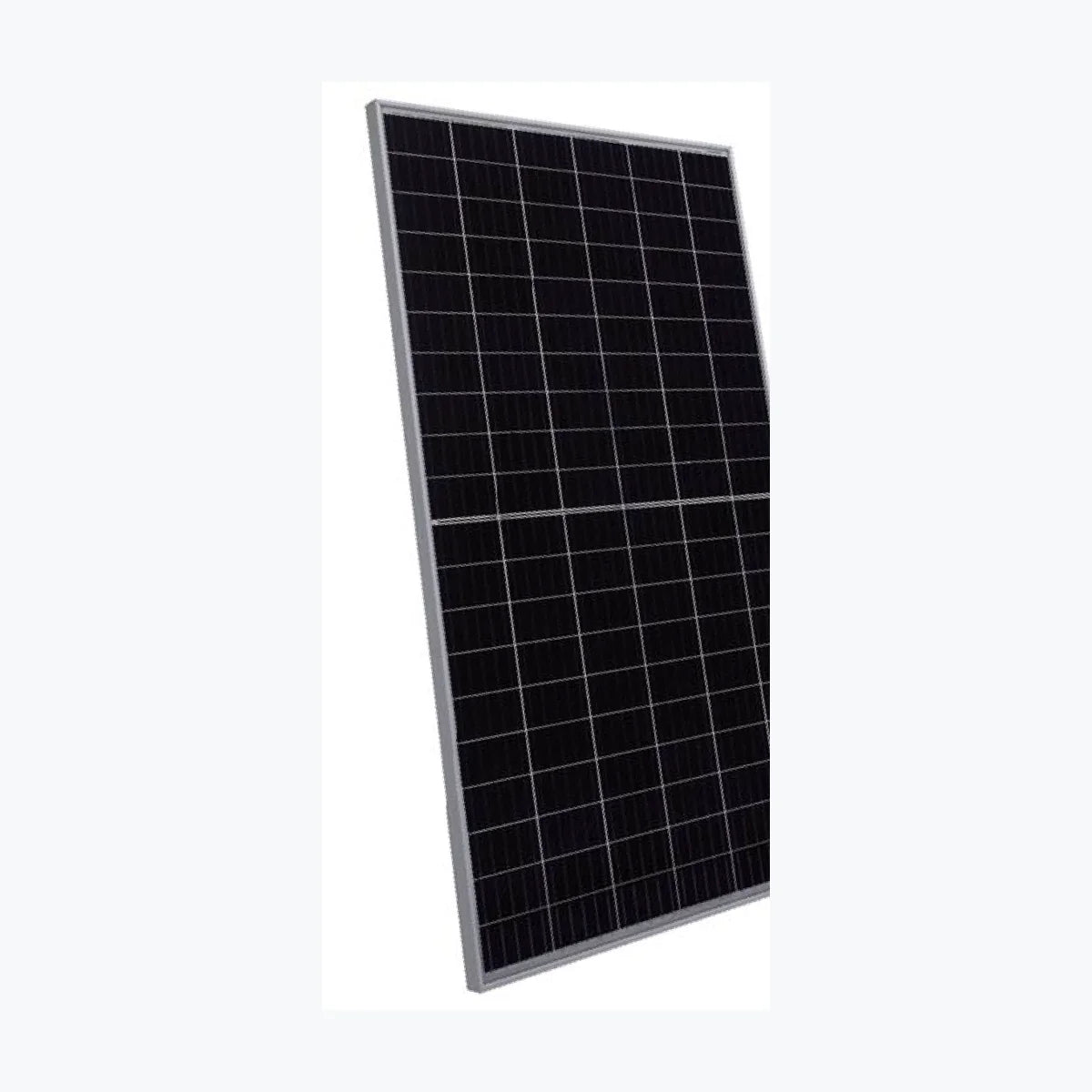

Runtech China JKM340M-60H
Runtech China JKM340M-60H
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-16237
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Model No. JKM340M-60H Product Warranty 12 Years Power Warranty 12 Years of 90 %, 25 Years of 83.1 % Total Degradation Rate ⏳ 0.68 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 340 Wp Voltage at Maximum Power (Vmpp) 33.93 V Current at Maximum Power (Impp) 10.02 A Open Circuit Voltage (Voc) 41 V Short Circuit Current (Isc) 10.82 A Panel Efficiency 20.15 % Maximum Power (Pmax) 250 Wp Voltage at Maximum Power (Vmpp) 31.5 V Current at Maximum Power (Impp) 8.06 A Open Circuit Voltage (Voc) 38.62 V Short Circuit Current (Isc) 8.74 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1684x1002x30 mm Weight 18.5 kg Cell Size 158.75×158.75 mm Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Clas
Technology: PERC
Power Range: 325 ~ 345 Wp
Panel Efficiency: 19.26 ~ 20.45 %
Weight: 18.5 kg
Seller Name: Runtech China Co.,Ltd
Country: China -
