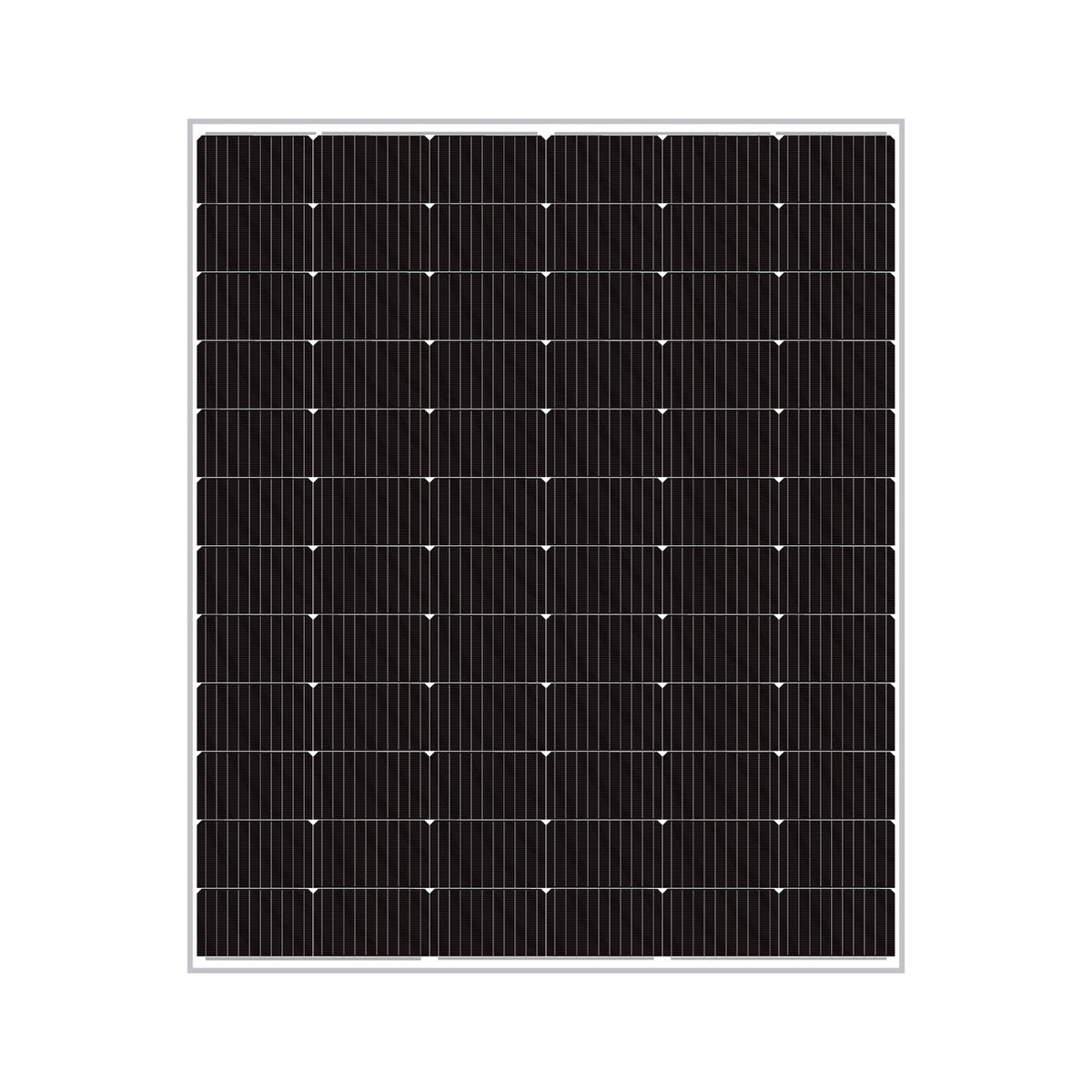

Sail Solar SAS535M-110H 535W Monocrystalline Solar Panel
SAS535M-110H | Monocrystalline Silicon | 110 Half-Cell | Mono | 1500V System Voltage
Product Overview
The Sail Solar SAS535M-110H is a high-performance monocrystalline solar panel designed for residential and commercial energy systems. This 535-watt panel delivers exceptional efficiency at 20.67%, ensuring maximum energy harvest even in low-light conditions. Built with 110 high-quality cells, it offers robust durability and reliable power output. The tempered glass front and anodized aluminum frame provide superior protection against environmental stress. Its IP68-rated junction box ensures safety in wet conditions. This panel is ideal for maximizing rooftop space while generating significant electricity. The Sail Solar SAS535M-110H combines advanced technology with practical design for long-term energy savings.
Key Benefits
High Efficiency: Delivers 20.67% module efficiency to maximize energy generation per square meter.
Superior Durability: Features tempered glass and an anodized aluminum frame for long-term weather resistance.
Low Light Performance: Maintains strong power output even under cloudy skies or early morning sunlight.
Safety Protection: Includes an IP68 junction box with three diodes to prevent electrical hazards.
Easy Installation: Standard MC4 connectors and pre-drilled mounting holes simplify the setup process.
How It Works
The Sail Solar SAS535M-110H converts sunlight into electricity using the photovoltaic effect. When photons strike the monocrystalline silicon cells, they excite electrons to create an electric current. This direct current flows through the junction box to the inverter for conversion into usable AC power. The panel's design minimizes energy loss through advanced cell orientation and high-transmission glass. Its temperature coefficients ensure stable performance across varying weather conditions. The integrated diodes prevent reverse current flow during nighttime or shading events. This efficient process ensures reliable power generation for your home or business.
Photovoltaic Conversion: Sunlight hits the silicon cells, releasing electrons to generate direct current electricity. This process is highly efficient due to the monocrystalline structure.
Current Regulation: Three diodes in the junction box manage current flow to prevent reverse leakage. This protects the system from power loss during shading.
Temperature Management: Low temperature coefficients maintain power output even in high heat. The panel operates efficiently between -40°C and +85°C.
Technical Specifications
| Model Number | SAS535M-110H |
| Solar Cell Type | Monocrystalline Silicon |
| Maximum Power (Pmax) | 535 Wp |
| Power Tolerance | 0 ~ +1% |
| Module Efficiency | 20.67% |
| Voltage at Max Power (Vmpp) | 31 V |
| Current at Max Power (Impp) | 17.26 A |
| Open Circuit Voltage (Voc) | 37.5 V |
| Short Circuit Current (Isc) | 18.16 A |
| Temperature Coefficient of Pmax | -0.34%/°C |
| Operating Temperature Range | -40°C to +85°C |
| Nominal Operating Cell Temp (NOCT) | 45±2°C |
| Maximum System Voltage | 1500 V DC |
| Series Fuse Rating | 25 A |
| Cell Number | 110 |
| Glass Type & Thickness | Tempered Glass, 3.2 mm |
| Frame Type | Anodized Aluminium |
| Junction Box Protection | IP68 |
| Junction Box Diodes | 3 |
| Connector Type | MC4 |
| Cable Cross-section | 4 mm² |
| Cable Length | 300 mm |
| Panel Dimensions (H/W/D) | 2384 x 1096 x 30 mm |
| Weight | 28.3 kg |
| Power Range | 530 ~ 555 Wp |
| Manufacturer | Sail Solar Energy Co., Ltd |
| Country of Origin | China |
Certifications & Compliance
Certifications: IEC 61215, IEC 61730, UL Type 1 or 2, CE, PID, ISO
Inverter Compatibility: Compatible with all standard string inverters supporting 1500V DC systems
Environmental: Fire Rating UL Type 1 or 2, Safety Class II, Low Power Degradation
Warranty: 30 Years Power Warranty, 12 Years Material Warranty (Contact for details)
