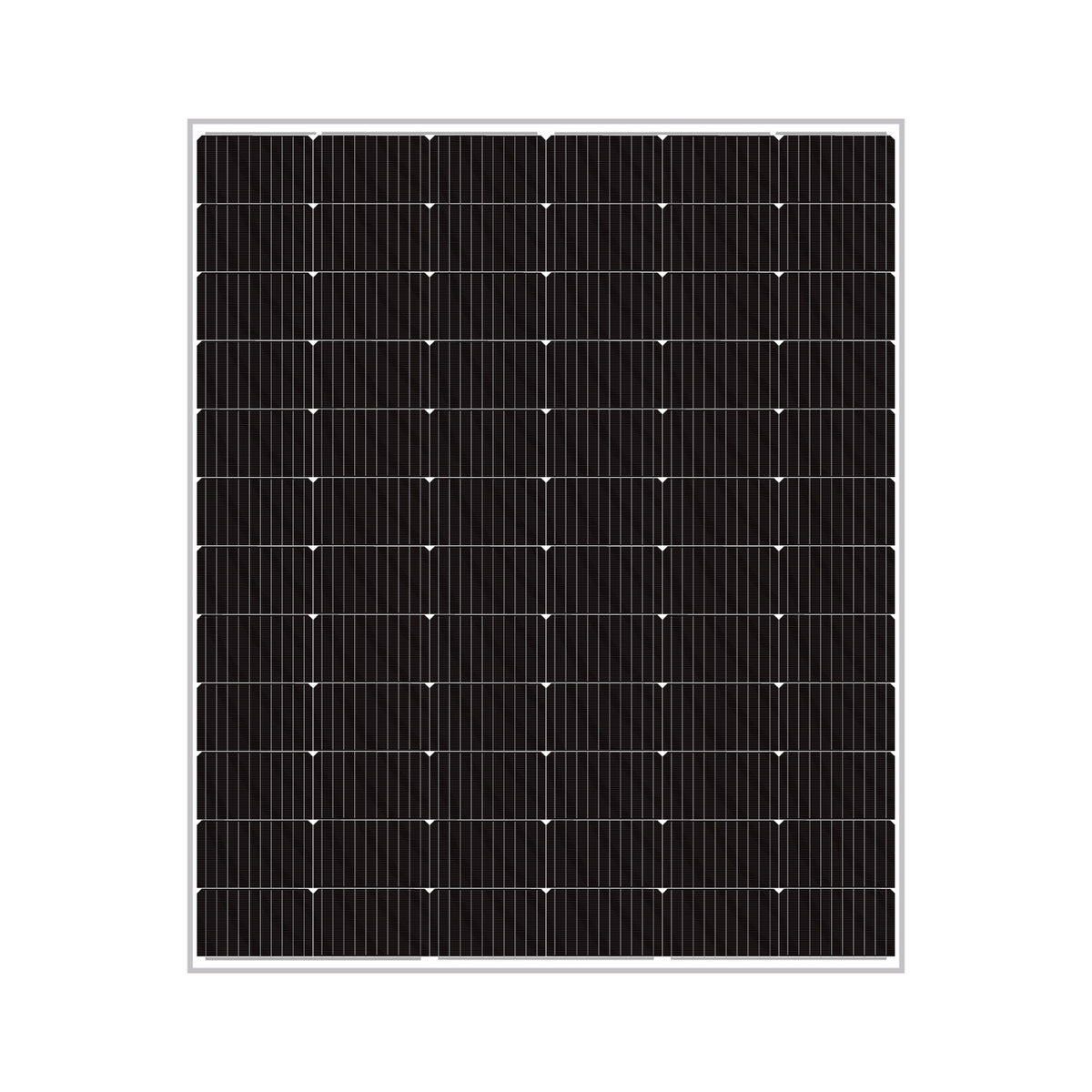

Sail Solar SAS540M-110H 540W P-Type Monocrystalline Solar Panel
SAS540M-110H | P-Type Monocrystalline | 110 Half-Cell | Mono | 1500V System Voltage
Product Overview
The Sail Solar SAS540M-110H is a high-performance 540W monocrystalline solar panel designed for residential and commercial use. This panel features advanced P-type technology with 110 half-cut cells to maximize energy efficiency. It delivers a module efficiency of 20.86% under standard testing conditions. The robust design includes tempered glass and an anodized aluminum frame for durability. Its positive power tolerance ranges from 0 to +1% ensuring reliable output. This unit operates efficiently across temperatures from -40°C to +85°C. The 1500V maximum system voltage supports large-scale grid-tie installations. Weighing only 28.3 kg, it offers easy installation without compromising strength. The Sail Solar SAS540M-110H is manufactured by Sail Solar Energy Co., Ltd in China. It stands out for its low power degradation and excellent low irradiance performance. This panel is ideal for maximizing solar yield in diverse weather environments.
Key Benefits
High Energy Efficiency: Achieves 20.86% module efficiency for superior power generation per square meter.
Advanced P-Type Technology: Utilizes 110 half-cut P-type cells to reduce resistive losses and boost output.
Extreme Durability: Built with 3.2mm tempered glass and an anodized frame to withstand harsh weather.
Low Power Degradation: Ensures long-term performance retention with minimal annual efficiency loss over decades.
Wide Temperature Range: Operates reliably from -40°C to +85°C for use in any global climate zone.
How It Works
The Sail Solar SAS540M-110H converts sunlight into electricity using the photovoltaic effect within its 110 monocrystalline cells. When photons strike the silicon cells, they excite electrons to create a flow of direct current electricity. The half-cell design reduces internal resistance, allowing more current to reach the junction box efficiently. This panel is engineered to maintain high output even under low light or partial shading conditions. The IP68-rated junction box protects the internal diodes from moisture and dust ingress. The tempered glass front maximizes light transmission while protecting the cells from physical impact. The anodized aluminum frame ensures structural integrity against wind loads up to 5400 Pa on the front. This system integrates seamlessly with standard MC4 connectors for secure cable connections.
Photovoltaic Conversion: Sunlight hits the P-type silicon cells to generate electron flow and create usable electricity. This process happens instantly whenever light strikes the panel surface.
Half-Cell Efficiency: Splitting cells into halves reduces resistive losses and improves performance under heat or shade. This design ensures stable voltage output across the entire module.
Thermal Regulation: The panel manages heat through its low temperature coefficient of -0.34%/°C for power. This feature prevents significant power loss during hot summer days.
Technical Specifications
| Model Number | SAS540M-110H |
| Cell Type | P-Type Monocrystalline |
| Cell Count | 110 Half-Cells (2x55) |
| Maximum Power (Pmax) | 540 Wp (STC) |
| Power Tolerance | 0 ~ +1% |
| Module Efficiency | 20.86% |
| Voltage at Max Power (Vmpp) | 31.2 V |
| Current at Max Power (Impp) | 17.31 A |
| Open Circuit Voltage (Voc) | 37.7 V |
| Short Circuit Current (Isc) | 18.21 A |
| Temperature Coefficient of Pmax | -0.34%/°C |
| Temperature Coefficient of Voc | -0.29%/°C |
| Temperature Coefficient of Isc | +0.05%/°C |
| Nominal Operating Cell Temp (NOCT) | 45±2°C |
| Operating Temperature Range | -40°C to +85°C |
| Maximum System Voltage | 1500 V DC |
| Series Fuse Rating | 25 A |
| Dimensions (H/W/D) | 2384 x 1096 x 30 mm |
| Weight | 28.3 kg |
| Glass Type & Thickness | Tempered Glass, 3.2 mm |
| Frame Type | Anodized Aluminium |
| Junction Box Rating | IP68 with 3 Diodes |
| Connector Type | MC4 |
| Cable Cross Section | 4 mm² |
| Cable Length | 300 mm |
| Front Static Load | 5400 Pa |
| Back Static Load | 2400 Pa |
Certifications & Compliance
Certifications: IEC 61215, IEC 61730, CE, PID Free, LID Free
Inverter Compatibility: Compatible with all standard grid-tie inverters using MC4 inputs
Environmental: Fire Rating UL Type 1 or 2, Safety Class II
Warranty: Standard product warranty available; contact seller for specific terms
