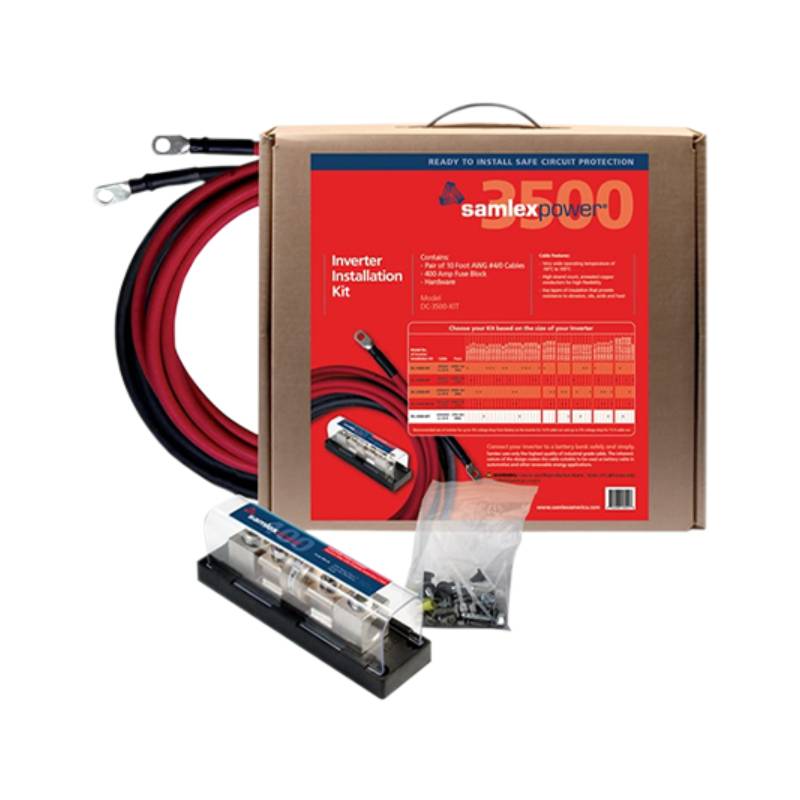

Samlex DC-3500-KIT Inverter Installation Set

The Samlex DC-3500-KIT Inverter Installation Kit is designed to provide a comprehensive solution for setting up inverters up to 3500 watts. This kit includes high-quality cables and fuse assemblies tailored for automotive and renewable energy applications. With the inclusion of a robust 400A fuse, this kit ensures reliable protection against electrical faults, making it an essential component for any efficient inverter setup.

Product Features

Industrial-Grade Flexible Cables

The kit includes flexible cables engineered with a 600V rating and a broad operating temperature range from -50C to 105C. These high strand count, annealed, tinned copper conductors provide superior flexibility and durability, ideal for demanding applications.

High-Efficiency Fuse and Fuse Holders

Equipped with Marine Rated Battery Fuses of 100A, 200A, 300A, and a 400A Class T Fuse for the DC-3500-KIT, these components are designed to deliver easy, secure, and weatherproof short circuit protection with high Ampere Interrupting Capacity (AIC).

Durable Cable Jacket

The Ethylene Propylene Rubber (EPR) jacket safeguards the cables with its high 600V insulation, offering exceptional resistance to abrasion, oils, acids, and heat. This design ensures long-lasting performance in challenging environments.

Optimized for Minimal Voltage Drop

This set is specifically configured to support minimal voltage dropsup to 3% for a 10-foot run and up to 5% for a 15-foot runensuring efficient power transfer from the battery to the inverter.

Comprehensive Installation Support

The kit includes red positive and black negative stranded conductors, each equipped with crimped ring terminals with a hole diameter of 0.41" suitable for a 3/8" stud, facilitating straightforward and secure connections.

How It Works

The Samlex DC-3500-KIT streamlines the inverter installation process with its comprehensive components designed for high performance and safety. Its cables and fuses work synergistically to ensure optimal conductivity and reliable protection in electrical systems.

Quality Cables

These cables act as the backbone of the installation, providing a sturdy yet flexible medium for electrical transmission between the battery and inverter.

Reliable Fuse System

The fuses incorporated in the kit offer crucial protection against short circuits, safeguarding the integrity of the electrical setup and ensuring user safety.

Convenient Connection Features

With pre-attached ring terminals, the installation process is not only simplified but ensures that all connections are robust and secure.
