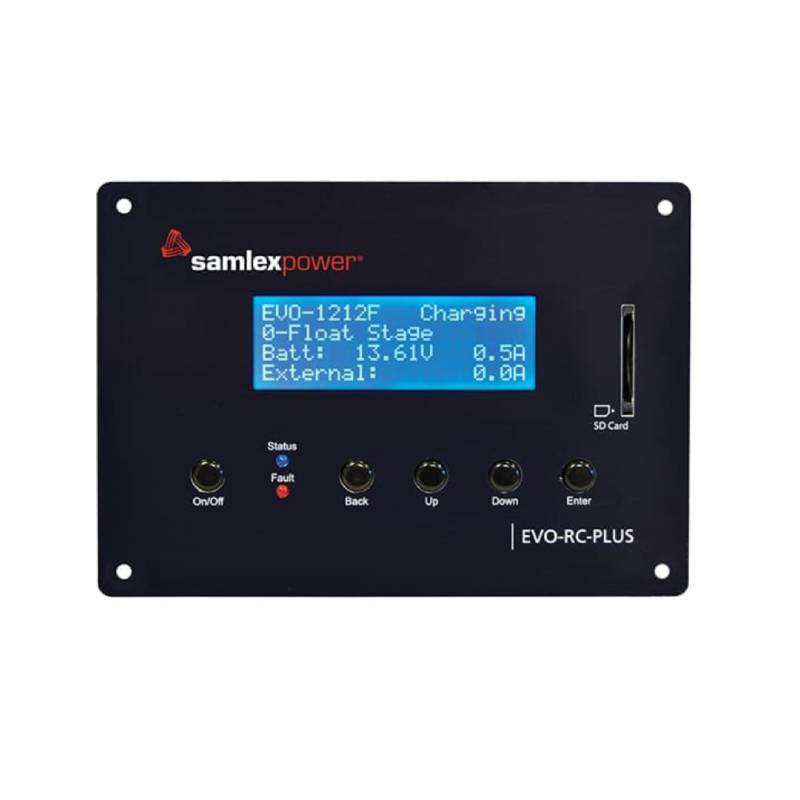

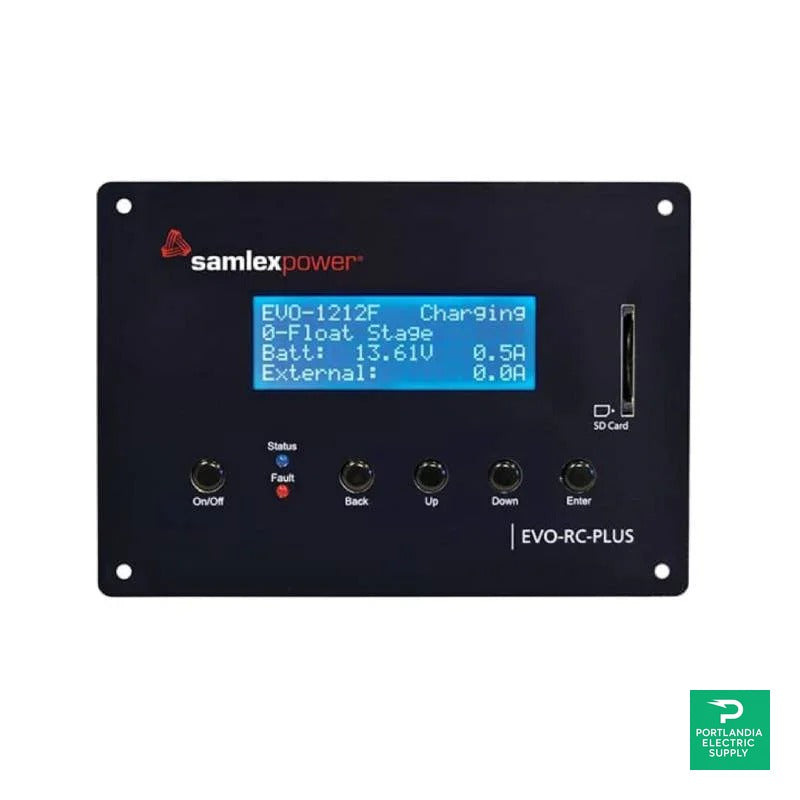

Samlex EVO-RC-PLUS Remote Control for Inverter/Chargers

The Samlex EVO-RC-PLUS is an advanced remote control designed specifically for the EVOTM Series Inverter/Chargers. This innovative device allows users to easily program various parameters and modes of operation, ensuring optimal performance and greater efficiency in off-grid applications. With features like real-time performance data logging and an SD card slot for recording historical usage, it empowers users to monitor their energy consumption and improve their overall system management.

Product Features

Comprehensive Parameter Programming

The EVO-RC-PLUS enables users to program a vast range of parameters and modes, enhancing the system's flexibility. This feature allows for tailored usage based on individual needs, making it essential for effective energy management.

Real-Time Performance Monitoring

With its ability to provide real-time operational details, the Samlex EVO-RC-PLUS helps users stay informed about the status of their inverter and charging modes. This insight can lead to quicker decision-making and better resource utilization.

Data Logging with SD Card Support

This remote control includes an SD card slot that supports up to 32GB cards, allowing users to conveniently record and store historical data. By analyzing this information, users can understand trends and enhance their energy consumption strategies.

Status Indicators for User Convenience

The integrated LED indicators€”blue for status and red for faults€”provide clear visual feedback about the system's operation. This feature ensures users are always aware of current conditions, facilitating proactive maintenance.

Ergonomic Design and Extended Reach

Equipped with a 33 ft RJ-45 data cable, the EVO-RC-PLUS offers flexibility in installation. Its ergonomic design makes it user-friendly, enabling easy access to control settings from a comfortable distance.

How It Works

The EVO-RC-PLUS connects seamlessly with Samlex EVOTM Inverter/Chargers to facilitate enhanced performance monitoring and control. Users can adjust settings, review historical data, and receive real-time status updates via its intuitive interface.

LCD Display for Clear Information

The device features an alpha-numeric LCD display that shows four rows of information, allowing users to easily read and interpret operational data at a glance.

Connectivity Options

Integrating RJ-45 and RJ-12 modular jacks, the EVO-RC-PLUS supports efficient data transmission and connection to other system components, ensuring a reliable setup.

Durable Operating Temperature

The EVO-RC-PLUS is built to operate reliably in a wide temperature range of -20°C to 60°C, making it suitable for various environments. This capability ensures consistent performance regardless of external conditions.

Specifications

Model Number	EVO-RC-PLUS
Compatible Model Numbers	EVO-1212F, EVO-1212F-HW, EVO-1224F, EVO-1224F-HW, EVO-2212, EVO-3012, EVO-2224, EVO-4024, EVO-2212E, EVO-3012E, EVO-2224E, EVO-4024E, EVO-4248SP
LCD Display	4 Rows, 20 Characters each
LED Indicators	Blue (Status); Red (Fault)
Input/Output Jacks	RJ-45 Modular Jack, 8P8C; RJ-12 Modular Jack, 6P6C
Data Cable Length	33 ft (10 Meters)
Operating Temperature Range	-20°C to 60°C
Dimensions (mm)	160 x 114.2 x 35.5
Dimensions (inches)	6.3 x 4.5 x 1.4
Weight without Cables	0.3 kg / 0.6 lb
Weight with Cables	0.4 kg / 1.0 lb
