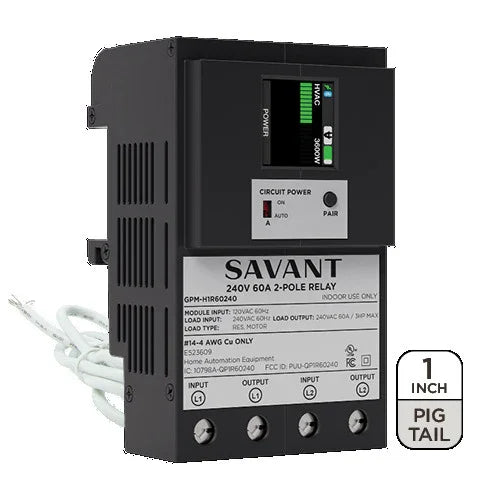

SAVANT GPM-H1R60240-21 60 Amp Power Module with Current Transformer

The SAVANT GPM-H1R60240-21 is a versatile 60 Amp Power Module designed for efficient load management in residential electrical systems. This power module supports 1-inch on-center load centers, providing homeowners and electricians with a reliable solution for power distribution. With features like Bluetooth connectivity and a user-friendly interface, this module enhances overall functionality while ensuring safety and compliance with industry standards.

Product Features

Compact Design for Easy Installation

The compact layout of the SAVANT GPM-H1R60240-21 allows for straightforward installation, requiring only three consecutive slots in your electrical panel. This design ensures maximum space efficiency while still providing robust power management capabilities.

Advanced Load Management Capability

This power module offers excellent control of electrical loads, supporting loads up to 14400VA. This enables the user to manage high-demand appliances seamlessly, making it an essential component for residential automation systems.

Enhanced User Interface

Equipped with a multi-page LCD screen, the module displays vital information such as power draw, firmware, and connectivity status. This feature makes monitoring usage and managing electrical loads an effortless and intuitive experience.

Bluetooth Connectivity for Smart Control

The SAVANT GPM-H1R60240-21 incorporates Bluetooth Low Energy (BLE) technology, allowing for wireless control and monitoring from compatible devices. This feature enhances the smart home experience by enabling quick access to power statuses and settings adjustments.

Safety Compliance and Robust Construction

Compliant with FCC regulations and safety standards, this power module guarantees a reliable service. It is designed with an impulse voltage rating of 2500V, assuring users of its integrity and safety during operation.

How It Works

The SAVANT GPM-H1R60240-21 operates by connecting to both the power source and the electrical loads, facilitating seamless electrical management. With input power connections from a feeder breaker, the module can effectively distribute power while monitoring and controlling electrical flows.

Input Power Connections

The module features dual input connections for a 240V AC power source, allowing it to draw power efficiently from the electrical panel. This structure enables the module to handle substantial loads effectively.

Output Power Connections

Output connections allow users to connect various electrical loads, ensuring optimal performance. This flexibility makes it ideal for both standard relay control and smart relay control in home automation setups.

Neutral Wire Integration

A pigtail neutral connection is included, making installation and integration with existing electrical systems easy. This ensures compliance with electrical codes and smooth operation of the module.
